Planet Networking & Communication FGSW-2840 Quick Installation Manual

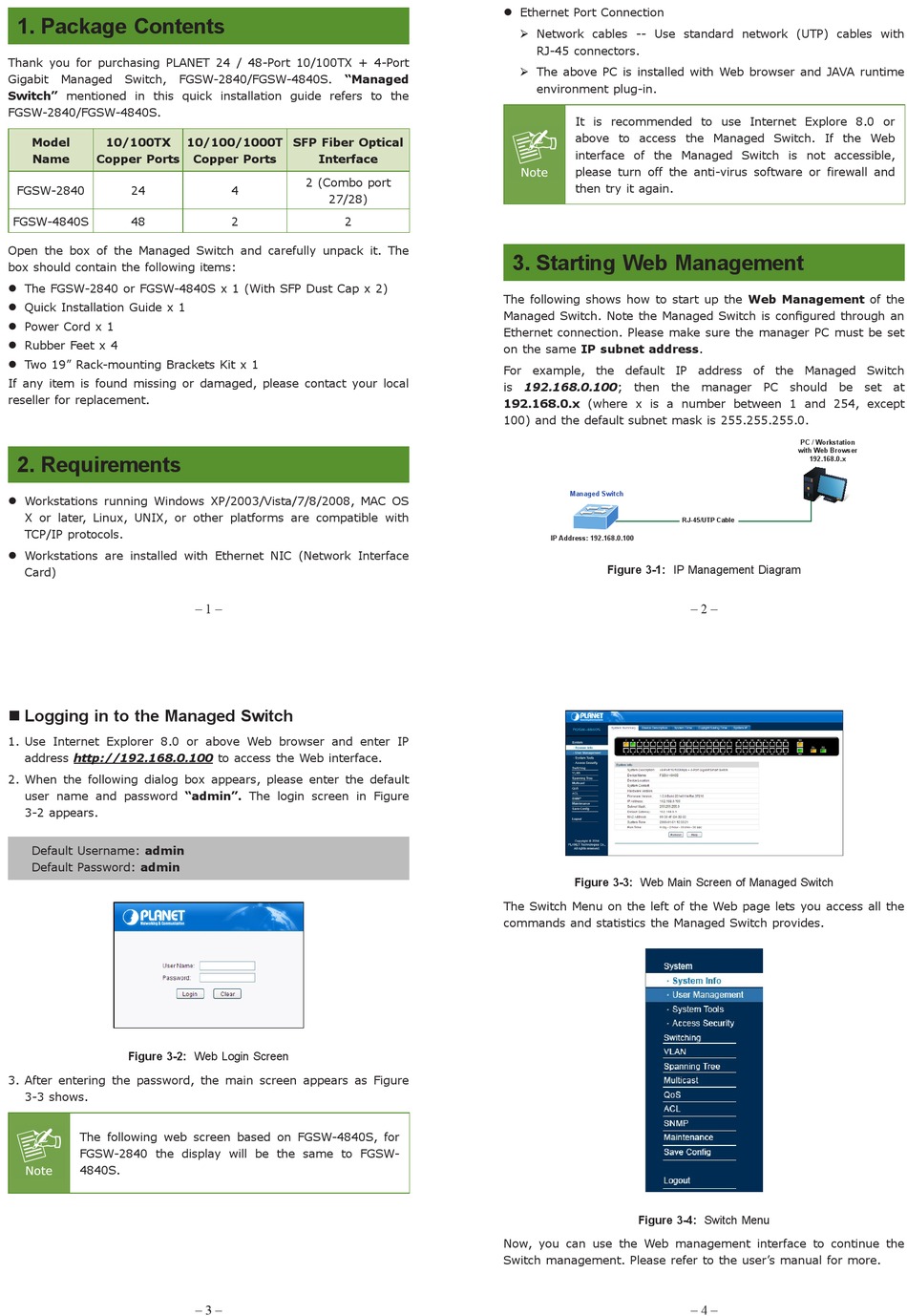

1. Package Contents

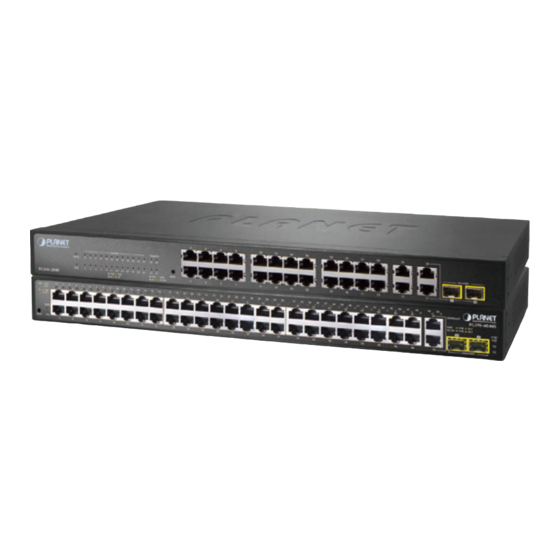

Thank you for purchasing PLANET 24 / 48-Port 10/100TX + 4-Port
Gigabit Managed Switch, FGSW-2840/FGSW-4840S.
Switch" mentioned in this quick installation guide refers to the
FGSW-2840/FGSW-4840S.
Model 10/100TX
Name Copper Ports
FGSW-2840 24
FGSW-4840S 48
Open the box of the Managed Switch and carefully unpack it. The
box should contain the following items:
 The FGSW-2840 or FGSW-4840S x 1 (With SFP Dust Cap x 2)
 Quick Installation Guide x 1
 Power Cord x 1
 Rubber Feet x 4
 Two 19" Rack-mounting Brackets Kit x 1
If any item is found missing or damaged, please contact your local
reseller for replacement.
2. Requirements
 Workstations running Windows XP/2003/Vista/7/8/2008, MAC OS
X or later, Linux, UNIX, or other platforms are compatible with
TCP/IP protocols.
 Workstations are installed with Ethernet NIC (Network Interface
Card)
 Logging in to the Managed Switch
1. Use Internet Explorer 8.0 or above Web browser and enter IP
address http://192.168.0.100 to access the Web interface.
2. When the following dialog box appears, please enter the default
user name and password "admin". The login screen in Figure
3-2 appears.
Default Username: admin
Default Password: admin
Figure 3-2: Web Login Screen
3. After entering the password, the main screen appears as Figure
3-3 shows.
The following web screen based on FGSW-4840S, for
FGSW-2840 the display will be the same to FGSW-
4840S.
Note
"Managed
10/100/1000T SFP Fiber Optical
Copper Ports Interface
2 (Combo port
4
27/28)
2 2
– 1 –
– 3 –
 Ethernet Port Connection
 Network cables -- Use standard network (UTP) cables with
RJ-45 connectors.
 The above PC is installed with Web browser and JAVA runtime
environment plug-in.
It is recommended to use Internet Explore 8.0 or
above to access the Managed Switch. If the Web
interface of the Managed Switch is not accessible,
please turn off the anti-virus software or firewall and
Note
then try it again.

3. Starting Web Management

The following shows how to start up the Web Management of the
Managed Switch. Note the Managed Switch is configured through an
Ethernet connection. Please make sure the manager PC must be set
on the same IP subnet address.
For example, the default IP address of the Managed Switch
is 192.168.0.100; then the manager PC should be set at
192.168.0.x (where x is a number between 1 and 254, except
100) and the default subnet mask is 255.255.255.0.
Managed Switch
IP Address: 192.168.0.100
Figure 3-1: IP Management Diagram
Figure 3-3: Web Main Screen of Managed Switch
The Switch Menu on the left of the Web page lets you access all the
commands and statistics the Managed Switch provides.
Figure 3-4: Switch Menu
Now, you can use the Web management interface to continue the
Switch management. Please refer to the user's manual for more.
PC / Workstation
with Web Browser
192.168.0.x
RJ-45/UTP Cable
– 2 –
– 4 –
