4.6.5 QoS Remap

This page allows you to configure the QoS Remap settings for all switch ports as the QoS Remap screen in
appears.
The page includes the following fields:
Object
•
Port Selection
• Mode
• Q0 ~Q7
• Port No.
• TX Remap Q0-Q7
• RX Remap Q0-Q7
Button
: press this button to take effect.

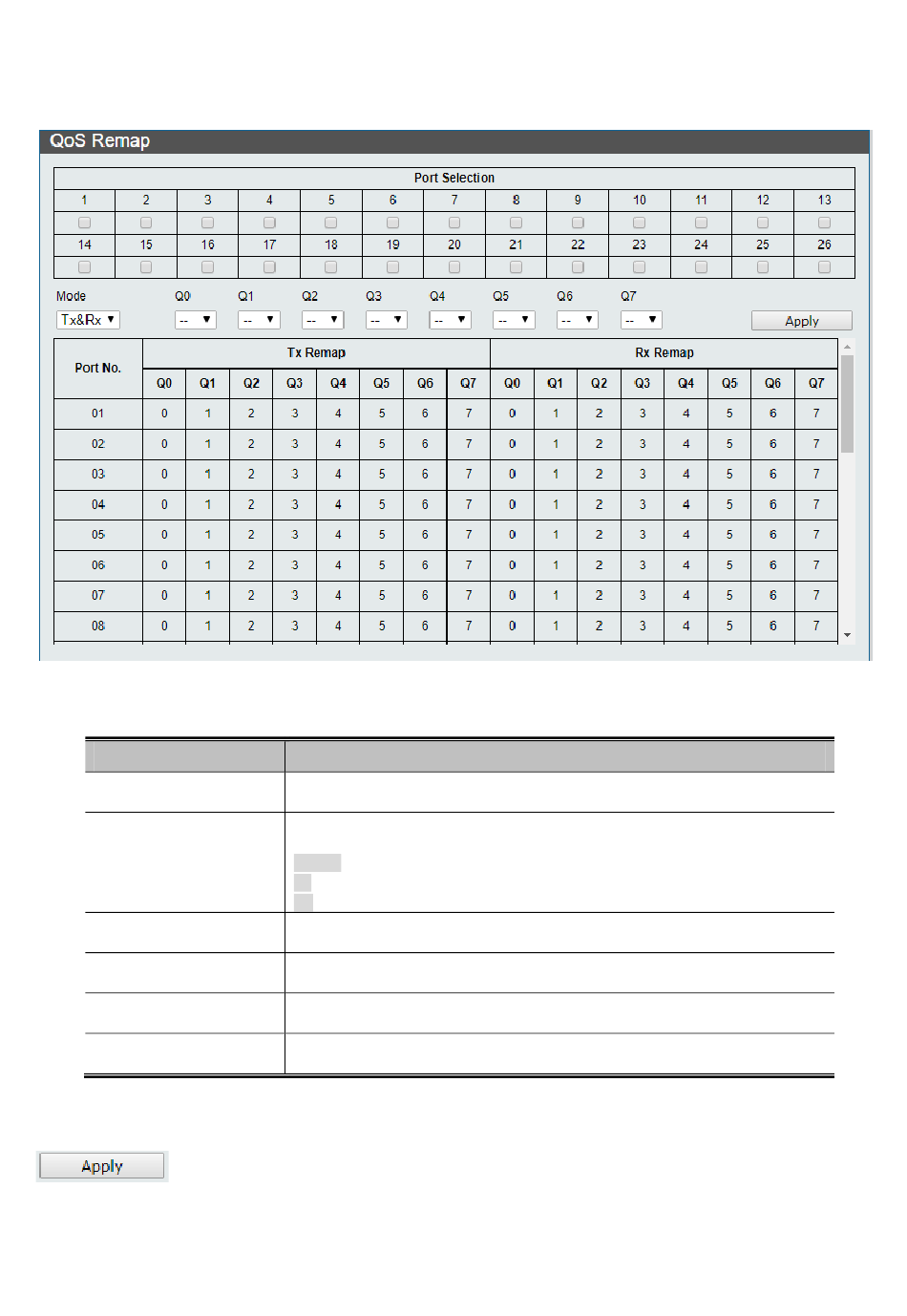

Figure 4-6-5: QoS Remap Configuration Page Screenshot
Description
Select specific port for QoS Remap settings.
Set operation mode for specific port and the available options are shown as
below:
Tx&Rx
Tx
Rx
Set each queue to the queue number of QoS Remap.
Display per port list.
Display per port queue number of Q0 to Q7 from TX Remap.
Display per port queue number of Q0 to Q7 from RX Remap.
