4.9.1.3 MST Configuration Identification

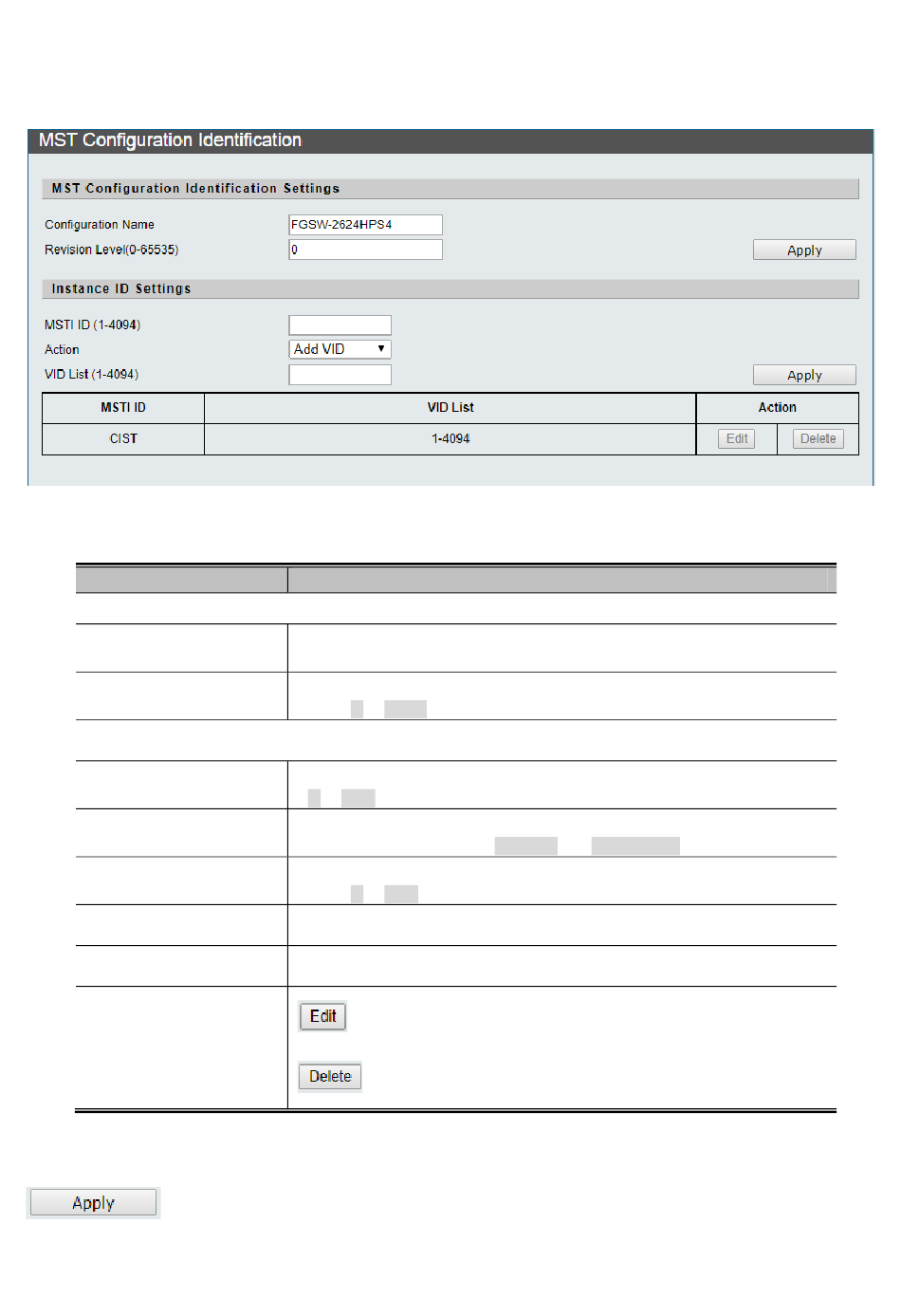

This page allows you to configure the MST Configuration Identification settings for Managed PoE+ Switch as the screen in
Figure 4-9-7 appears.
Figure 4-9-7: MST Configuration Identification Configuration Page Screenshot
The page includes the following fields:
Object
MST Configuration Identification Settings
• Configuration Name
• Revision Level
Instance ID Settings
• MSTI ID (1-4094)
• Action
• VID List (1-4094)
• MTSI ID
• VID List
• Action
Button
: press this button to take effect.
Description
This column provides configuring the configuration name and the available
characters is 32.
This column provides configuring the Revision Level settings and the available
range is 0 to 65535.
This column provides configuring the MSTI ID settings and the available range
is 1 to 4094.
This column provides selecting the Action of MSTI; the default version is Add
VID and available options are Add VID and Remove VID.
This column provides configuring the VID List settings f MSTI; the available VID
range is 1 to 4094.
Display MSTI ID information.
Display VID List information.
: press this button to edit specific Instance ID Settings.
: press this button to delete specific Instance ID Settings.
