4.7.2 ACL Profile List

This page allows you to configure the ACL Profile List settings for Managed PoE+ Switch as the ACL Profile List screen in
Figure 4-7-2
appears.
The page includes the following fields:
Object
• User Entries
• Profile Name
• Type
• Action

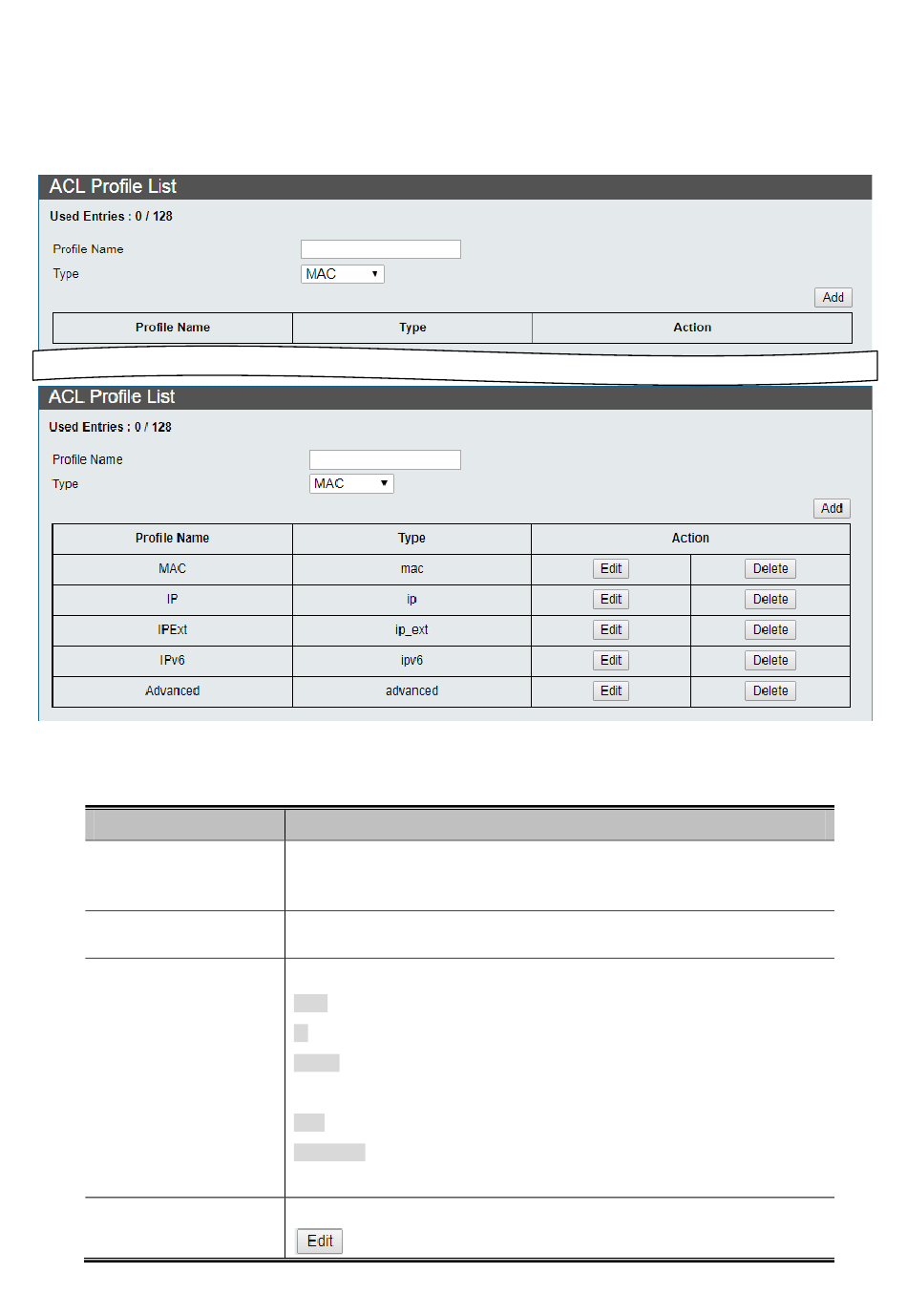

Figure 4-7-2: ACL Profile List Configuration Page Screenshot
Description
Display the amount of entry occupied by rules that has been set up successfully,
with a maximum of 128. It is not a rule that takes up an entry; the number of entry
occupied by a rule is automatically calculated according to the setting.
Display and configure the name of a specific ACL Profile; the maximum length is
20 characters.
Indicates the frame type of the ACL Profile. Possible values are:
MAC: The ACL will match the MAC address.
IP: The ACL will match all IPv4 frames.
IP_Ext: The ACL will match all IPv4 frames with VID/CoS/TCP Flag/ DSCP/IP
protocol.
IPv6: The ACL will match all IPv6 standard frames.
Advanced: The ACL will match all MAC address and IPv4 frames with
VID/CoS/TCP Flag/ DSCP/IP protocol.
Indicates the forwarding action of the ACL Profile.
: press this button to edit the specific ACL Profile.
