4.3.1 PoE Port Settings

This page provides configuration for all PoE ports as the PoE Port settings screen in
The page includes the following fields:
Object
•
Total Available Power
•
Total Consumption
• Port Selection
•
State
•
Mode
•
Budget (Watt)
• Extended
Port
Settings
• State
• Budget (Watt)
• AT/AF
• Extended
Status
• Class
• Consumption (Watt)

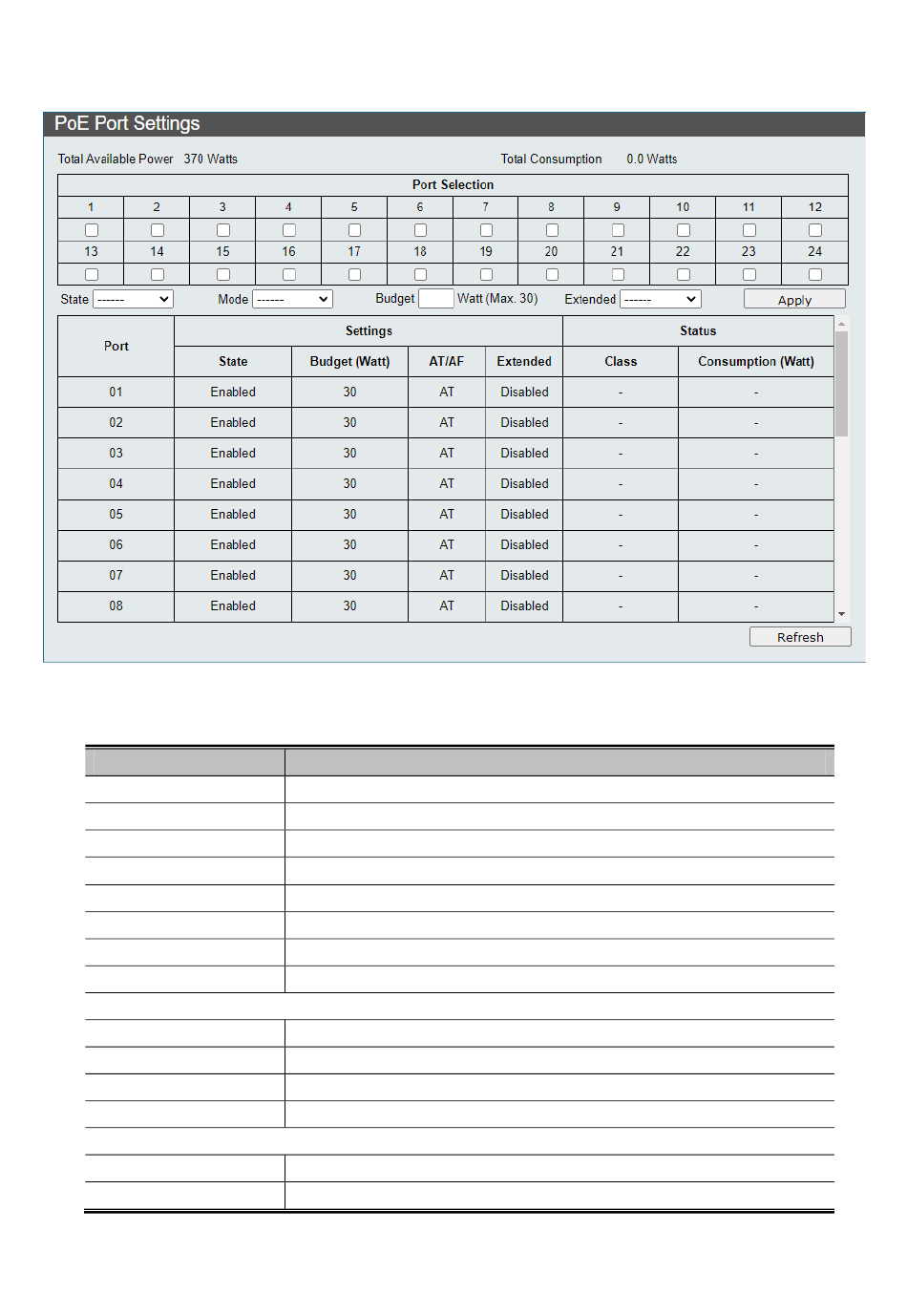

Figure 4-3-3: PoE Port Settings Configuration Page Screenshot
Description
Display Managed PoE+ Switch PoE Budget.
Display Managed PoE+ Switch current PoE power used in watts..
Select specific PoE port for further configuration.
Enable or disable specific PoE port power feeding function.
Choose AT or AF PoE operation mode.
Input the PoE power output value and the available options are 1 to 30 watts.
Enable or disable PoE extend mode
Display per PoE port list.
Display per PoE port operation status.
Display per PoE port budget setting.
Display per PoE port AT/AF setting.
Display per PoE port extend mode status
Display per PoE port current PoE class value detection.
Display per PoE port current PoE power usage information in watts.
Figure 4-3-3
