4.6.8 DSCP-based Priority

This page allows you to configure the DSCP-based Priority settings for Managed PoE+ Switch as the DSCP-based Priority
screen in Figure 4-6-8 appears.
The page includes the following fields:
Object
• Priority For DSCP Not
Match
• IP ToS/DSCP CoS Base
Priority
• List
•
Value
• Priority
Button
: press this button to take effect.

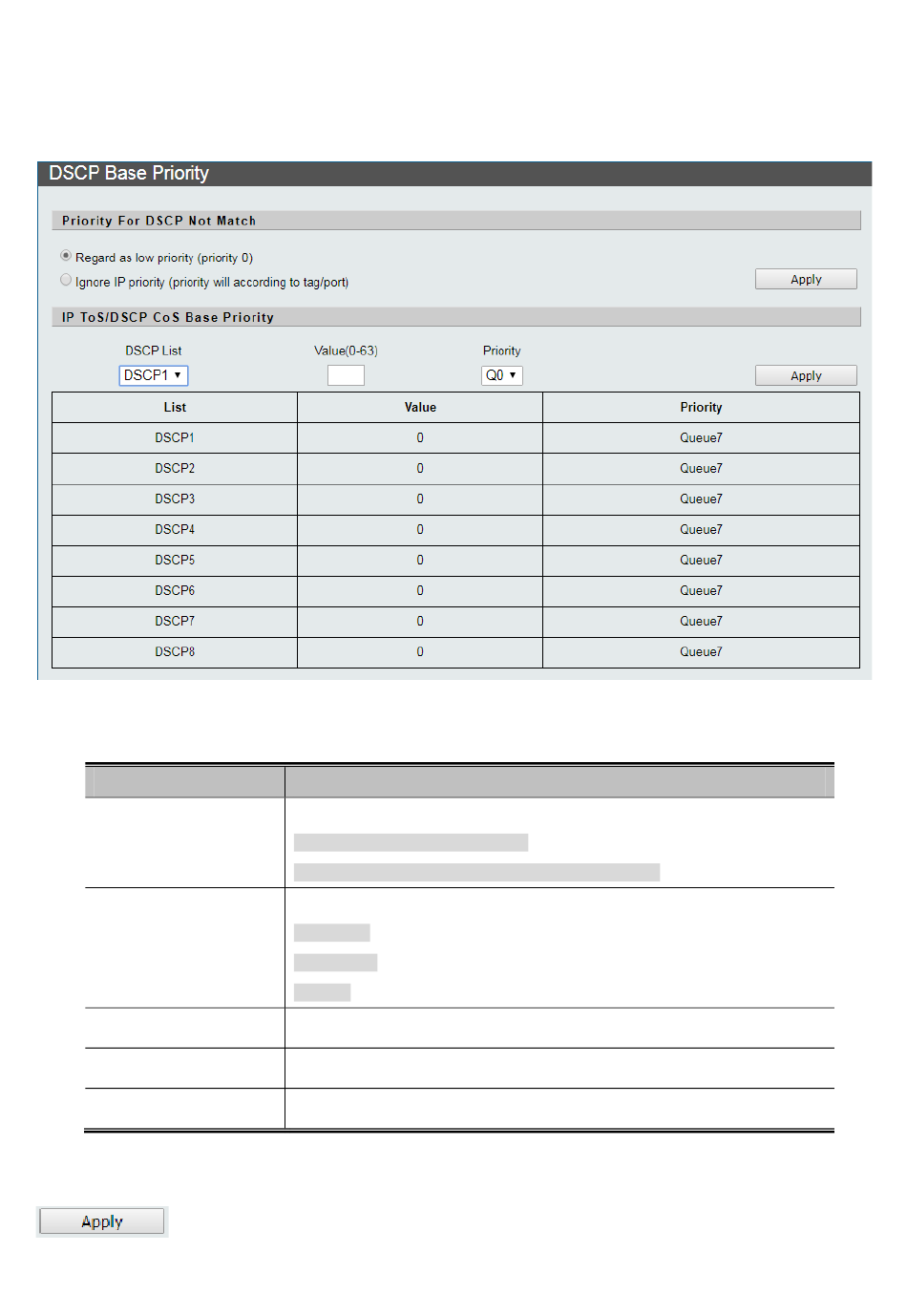

Figure 4-6-8: DSCP-based Priority Configuration Page Screenshot
Description
Provide two options for selection.
Regard as low priority (priority 0)
Ignore IP priority (priority will according to tag/port)
Provide three functions for setting.
DSCP List: provide DSCP1 to DSCP8 options to choose.
Value(0-63):allow input the value range from 0 to 63.
Priority: provide Q0 to Q7 options to choose.
Display DSCP1 to DSCP8.
Display the value setting of per DSCP1 to DSCP8.
Display the priority setting of per DSCP1 to DSCP8.
