Q-in-Q Port Configuration
The Q-in-Q Port configuration screen in
The page includes the following fields:
Object
•
Port Selection/Port
• Index
• Tagging
•
RX Detect
•
Keep PCP/DEI
Button
: press this button to take effect.
Figure 4-5-8 is shown below.

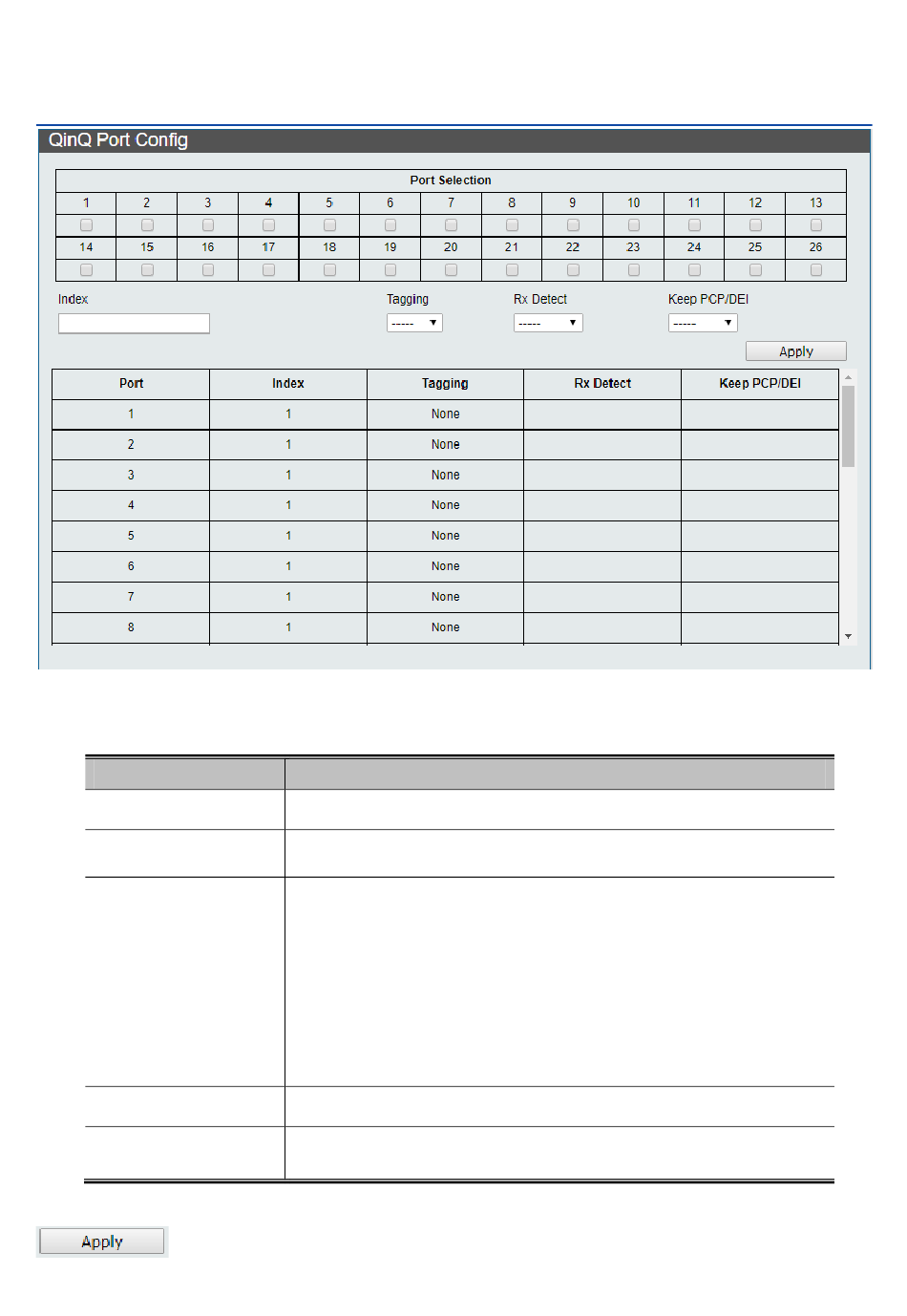

Figure 4-5-8 : Q-in-Q Port Configuration Page Screenshot
Description
Select specific port for Q-in-Q Port configuration./ List per port numbers.
Choose to use the set of indexes in which the service Tag value is placed in the
Q-in-Q Index config web page setting. Also display current Index information.
Set whether VLAN Tag is added or removed from the packet sent out by selected
port. The available options are "Add", "RMV" and "None".
Add:
Do the new service Tag action on the incoming and outgoing packet from this
port, if the incoming packet itself has service tag, modify or directly replace the
service Tag action depending on whether the RX detect is opened or not.
RMV:
RX detect enable state to remove service Tag.
Also display current Tagging information.
Enable or disable the packet that enters the port to do the service Tag check.
Also display current RX Detect information.
Set whether to retain the original PCP and DEI values when modifying the
service Tag entered into the packet. Also display current Keep PCP/DEI
information.
