In this example, only the default STP values are used.
The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost
between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one
(optional) Gigabit port on both switch B and C. The redundant link between switch B and C is deliberately chosen as a 100 Mbps
Fast Ethernet link (default port cost = 200,000). Gigabit ports could be used, but the port cost should be increased from the
default to ensure that the link between switch B and switch C is the blocked link.
The Spanning Tree Protocol configuration includes the Port-MAC-IP Port Setting, Port-MAC-IP Entry Setting and DHCP
Snooping Entry Setting and table 4-9-2 show the items of Port-MAC-IP Binding functions.
Spanning Tree Protocol Configuration
Item
STP Global Settings
STP Port Settings
MST Configuration Identification
STP Instance Settings
MSTP Port Information
STP Loop Detect Settings

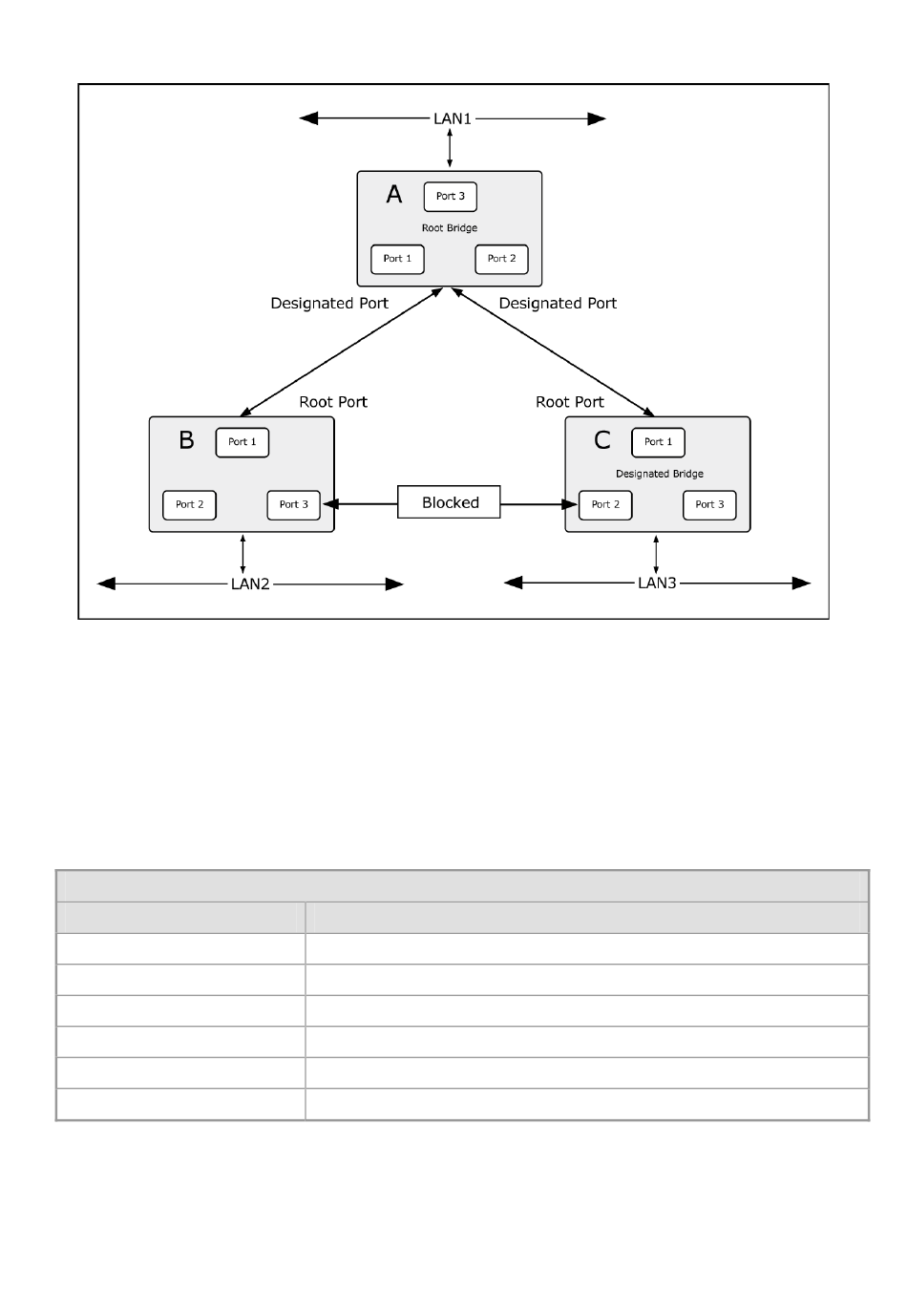

Figure 4-9-4: After Applying the STA Rules
Configure and display STP Global settings on this web page.
Configure and display STP Port settings on this web page.
Configure and display MST Configuration Identification settings on this web page.
Configure and display STP Instance settings on this web page.
Configure and display MSTP Port Information on this web page.
Configure and display STP Loop Detect settings on this web page.
Table 4-9-2: Descriptions of Spanning Tree Protocol Configuration
Description
