4.9.1.1 STP Global Settings

This page allows you to configure the STP Global settings for Managed PoE+ Switch as the screen in
The page includes the following fields:
Object
•
STP State
• STP Version
• Bridge Max Age (6-40)
• Bridge Hello Time (1-10)
• Bridge Forward Delay
(4-30)
• Max Hops (6-40)
• TC Counters (5-30)
• STP BPDU Filter
Button
: press this button to take effect.

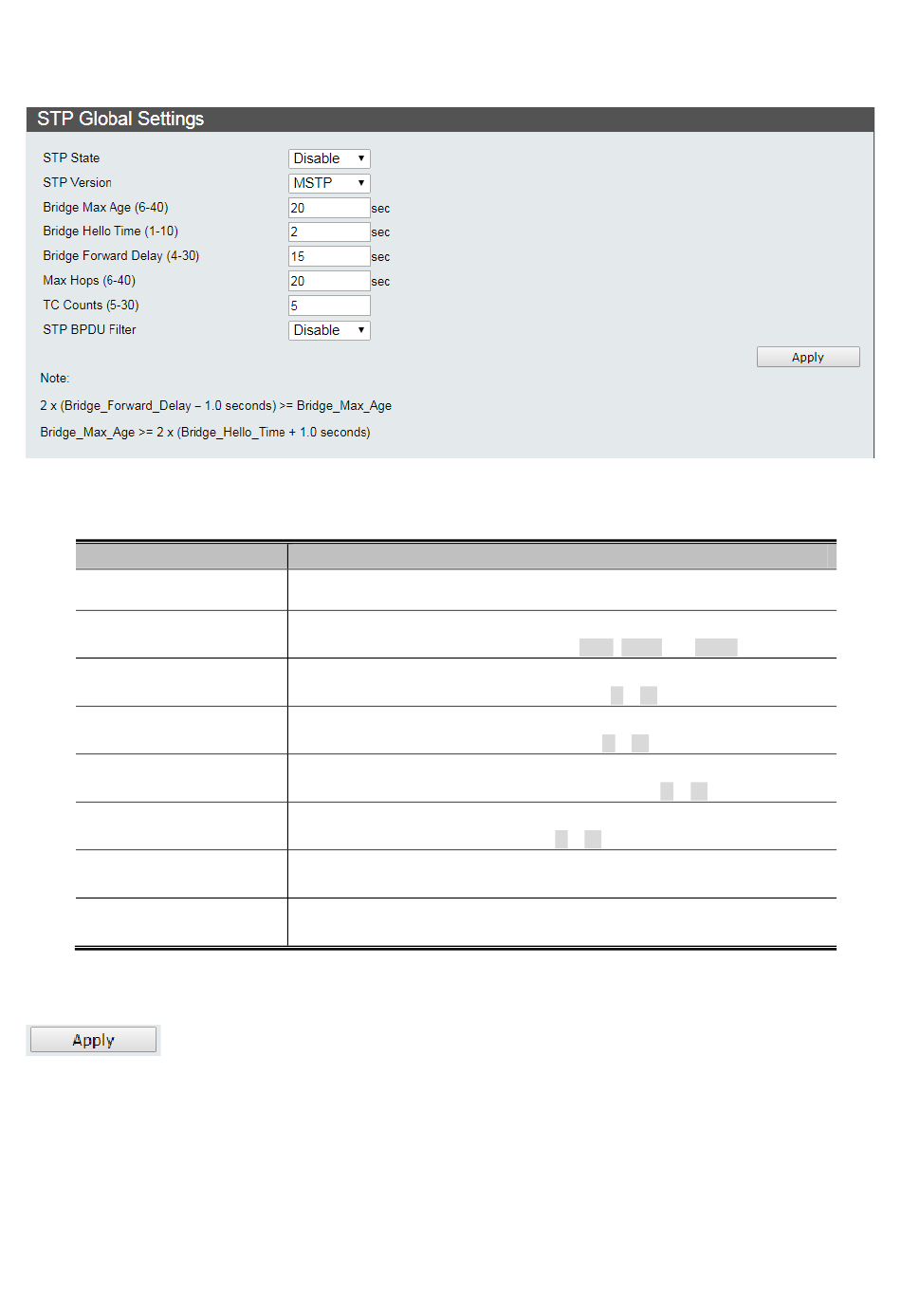

Figure 4-9-5: STP Global Settings Configuration Page Screenshot
Description
This column provides configuring enable or disable the spanning tree function.
This column provides selecting the spanning tree operation version; the default
version is MSTP and available options are STP, RSTP and MSTP.
This column provides configuring the value for Bridge Max Age; the default
value is 20 seconds and the available range is 6 to 40 seconds.
This column provides configuring the value for Bridge Hello Time; the default
value is 2 seconds and the available range is 1 to 10 seconds.
This column provides configuring the value for Bridge Forward Delay; the
default value is 15 seconds and the available range is 4 to 30 seconds.
This column provides configuring the value for Max Hops; the default value is
20 seconds and the available range is 6 to 40 seconds.
This column provides configuring the value for TC Counters; the default value is
5 and the available range is 5 to 30.
This column provides configuring enable or disable the spanning BPDU Filter
function.
