User's Manual of FGSW-Series

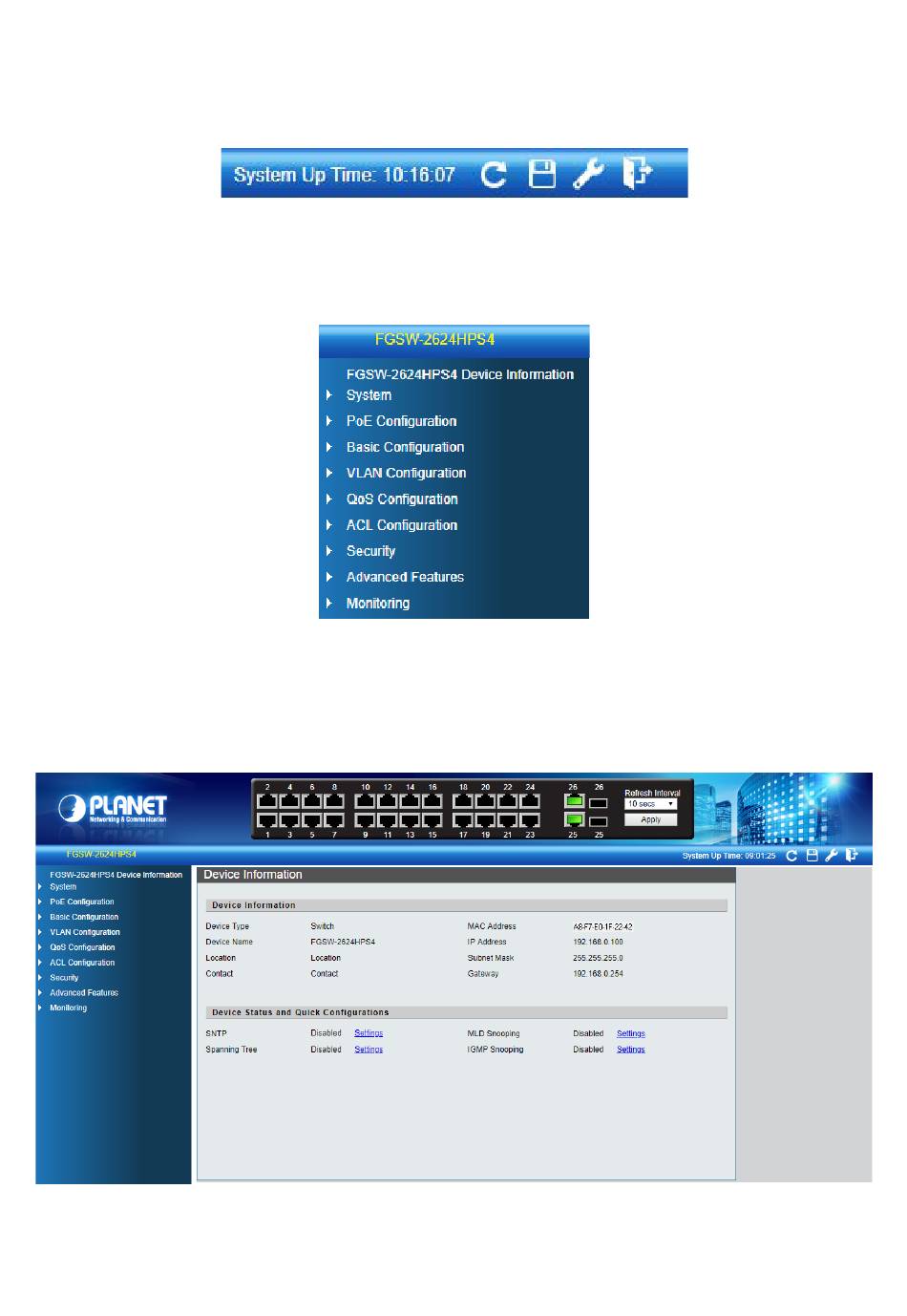

System Hot Key Icons
The system hot keys icons are in the right side of the Managed PoE+ Switch's web page, from left to right side is System Up
Time, refresh button, save config button, reboot button and logout button.
Main Menu
Using the onboard web agent, you can define system parameters, manage and control the Managed PoE+ Switch, and all its
ports, or monitor network conditions. Via the Web-Management, the administrator can set up the Managed PoE+ Switch by
selecting the functions those listed in the Main Function. The screen in Figure 4-1-5 appears.
Figure 4-1-5: Managed PoE+ Switch Main Functions Menu
Device Information
Access Device Information web page, you can view device informations of the Managed PoE+ Switch, the screen in Figure
4-1-6 appears and table 4-1-1 show the items of Device Information.
Figure 4-1-6: Managed PoE+ Switch Device Information Web Page
