4.9.1.5 MSTP Port Information

This page allows you to configure the MSTP Port Information settings for Managed PoE+ Switch as the screen in
appears.
The page includes the following fields:
Object
• Port
MSTP Port Settings
• Instance ID
• Internal Path Cost
• (0-200000000,0=Auto)
• Priority
• (0-240)
• MTSI
• Designated Bridge
• Internal Path Cost
• Priority
• Status
• Role
• Action
Buttons
: press this button to find MSTP Port information.
: press this button to take effect.

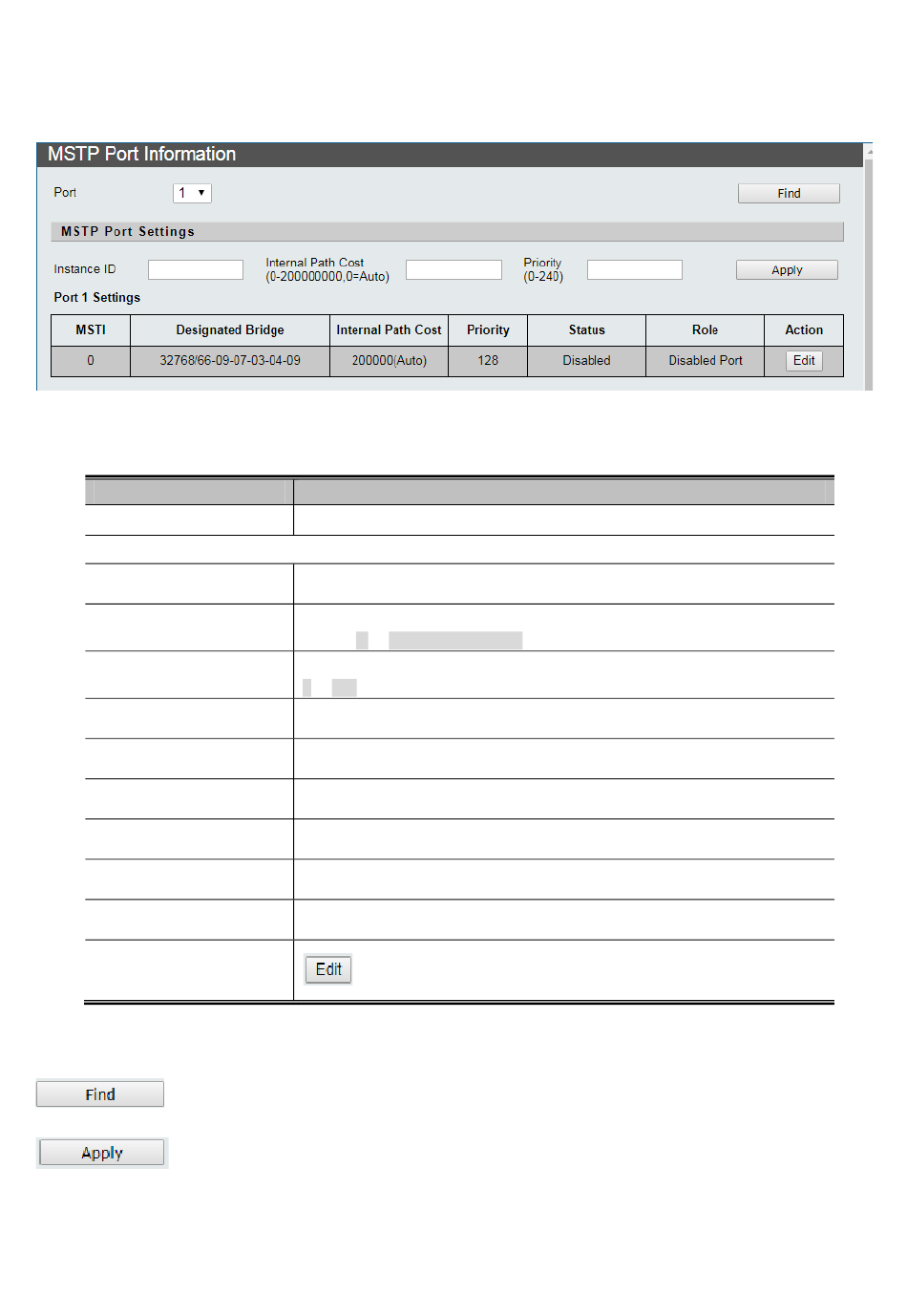

Figure 4-9-9: MSTP Port Information Configuration Page Screenshot
Description
Select specific port for further configuration.
This column provides configuring the Instance ID settings.
This column provides configuring the Internal Path Cost settings; the available
range is 0 to 200000000, 0=Auto.
This column provides configuring the Priority settings; the available VID range is
0 to 240.
Display MSTI information.
Display Designated Bridge information.
Display Internal Path Cost information.
Display Priority information.
Display Status information.
Display Role information.
: press this button to edit specific MSTP Port Settings.
