4.8.3 MAC Address Binding

The MAC Address Binding configuration provides MAC address-based security function. When this function is enabled, the port
will discard packet which does not conform to the MAC table or discard a specific MAC address, mirror forwarding and sampling
to the CPU port and other activities.
Only when the port learning function is disabled, can the MAC address in the non-MAC table be effectively prevented from
entering the device by the port it binds. Without the broadcast port learning function, only the MAC address existing in the MAC
table can be limited to enter the device by its bound port. The MAC address in the non-MAC table cannot be assigned to any
port.

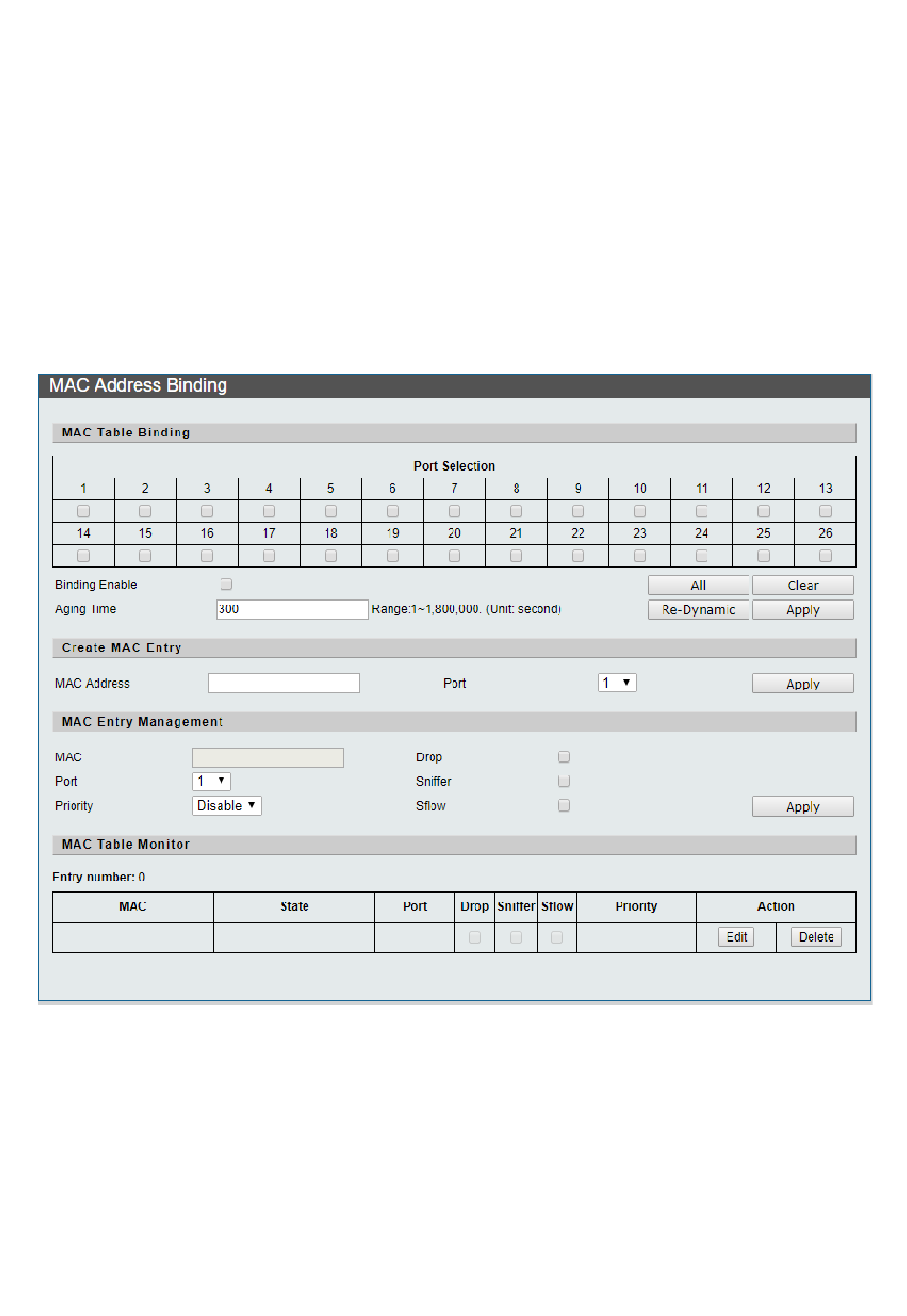

The MAC Address Binding Configuration screen in Figure 4-8-6 is shown below.
Figure 4-8-6: MAC Address Binding Configuration Screen Page Screenshot
