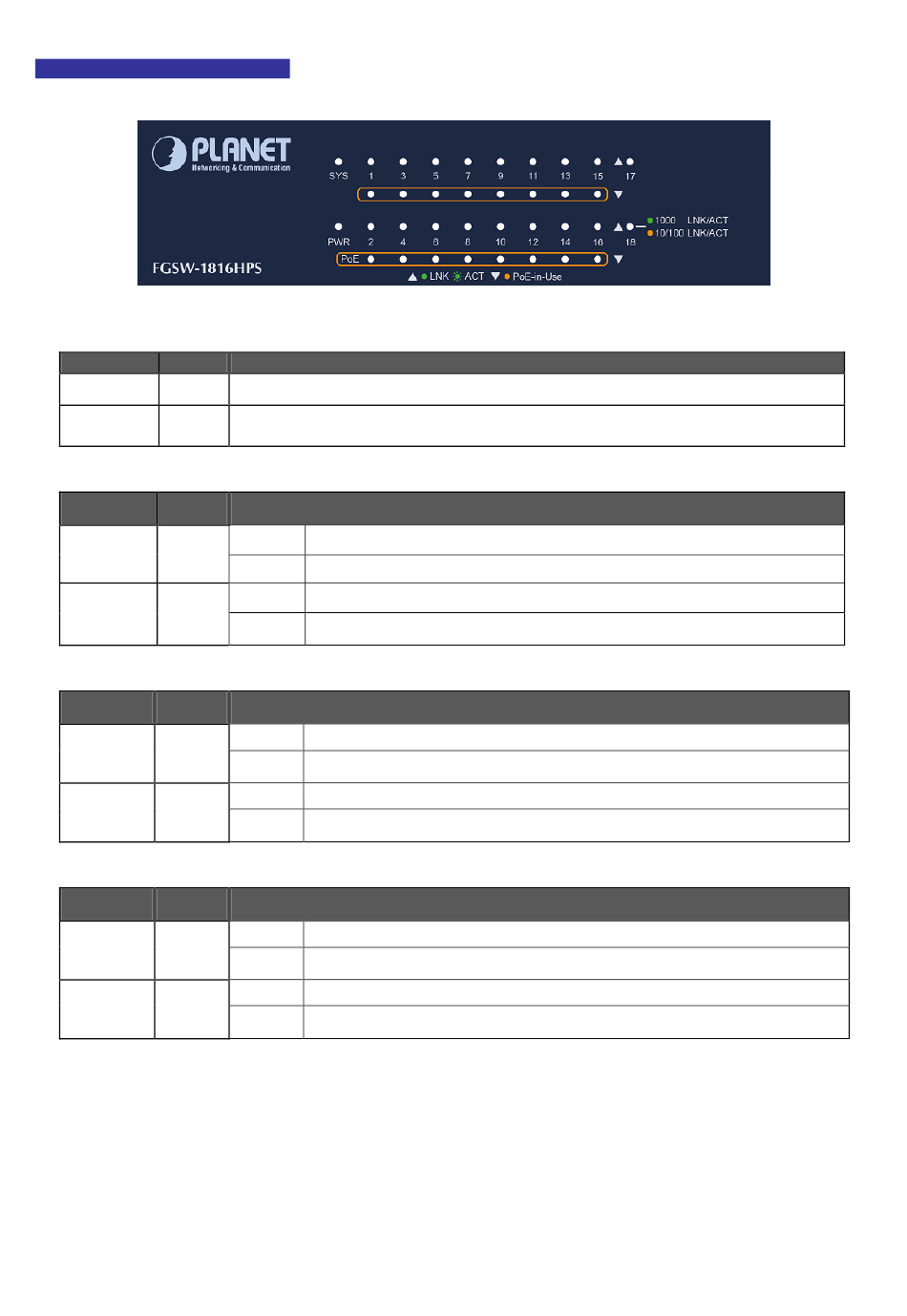

FGSW-1816HPS LED Indication
System
LED
Color
PWR
Green
SYS
Green
Per 10/100Mbps Port with PoE Interfaces (Port1 to Port16)
LED
Color
LNK/ACT
Green
PoE-in-Use
Amber
Per 10/100/1000Mbps RJ45 Combo Interface (Port17 to Port18)
LED
Color
1000
Green
LNK/ACT
10/100
Amber
LNK/ACT
Per 1000Mbps SFP Combo Interface (Port17 to Port18)
LED
Color
1000
Green
LNK/ACT
10/100
Amber
LNK/ACT
Lights to indicate the Switch has power.
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights
Indicates the link through that port is successfully established at 10/100Mbps.
Blink
Indicates the Switch is actively sending or receiving data over that port.
Lights
Indicates the port is providing PoE power.
Off
Indicates the port is not providing PoE power.
Lights
Indicates the port is successfully established.
Blink
Indicates the Switch is actively sending or receiving data over that port.
Lights
Indicates the port is successfully established.
Blink
Indicates the Switch is actively sending or receiving data over that port.
Lights
Indicates the port is successfully established.
Blink
Indicates the Switch is actively sending or receiving data over that port.
Lights
Indicates the port is successfully established.
Blink
Indicates the Switch is actively sending or receiving data over that port.
Function
Function
Function
Function
