The VLAN Port configuration screen in
The page includes the following fields:
Object
•
Port Selection
• PVID
• Tag
• Force
• Uplink
• Exclusive
• Egress
• Ingress-Check
• GVRP
• Ingress-Frame
Figure 4-5-6 is shown below.

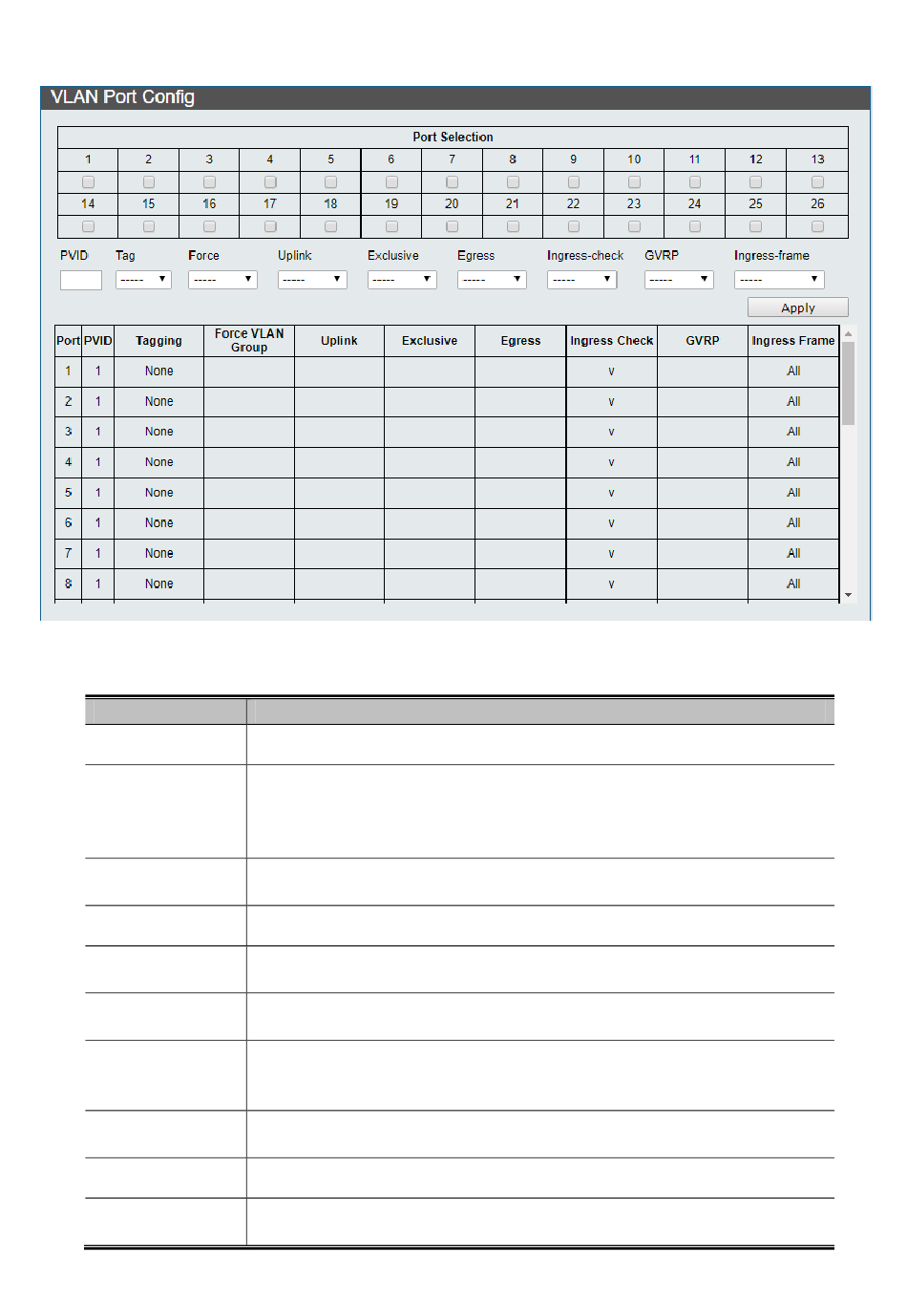

Figure 4-5-6 : VLAN Port Config Configuration Page Screenshot
Description
Select specific port for VLAN settings.
Allow assigned PVID for selected port. The range for the PVID is 1-4094.
The PVID will be inserted into all untagged frames entering the ingress port. The PVID
must as same as the VLAN ID that the port belong to VLAN group, or the untagged
traffic will be dropped.
Set whether VLAN Tag is added or removed from the packet sent out by selected port.
The available options are "Add", "RMV" and "None".
Whether or not to set priority according to the group VLAN setting for the action.
Set up the Uplink port, which automatically sends the packet out of the Uplink Port
when the destination Port is not the same as the VLAN.
Enable or disable the exclusive function on specific port, the exclusive port unable to
transfer packets.
Enable or disable the exgress function on specific port, when the destination port of the
packet is not in the same VLAN, it can still be transmitted to the destination port via the
egress rule.
Enable or disable the ingress check function, check whether port is member of this
VLAN through VID.
Enable or disable the port GVRP function.
Setting allows the specified frame to do the forwarding action.
The available options are "Tag-Frame" and "All".
