Analog Devices ADRV9001 User Manual page 64

Reference Manual
DATA INTERFACE

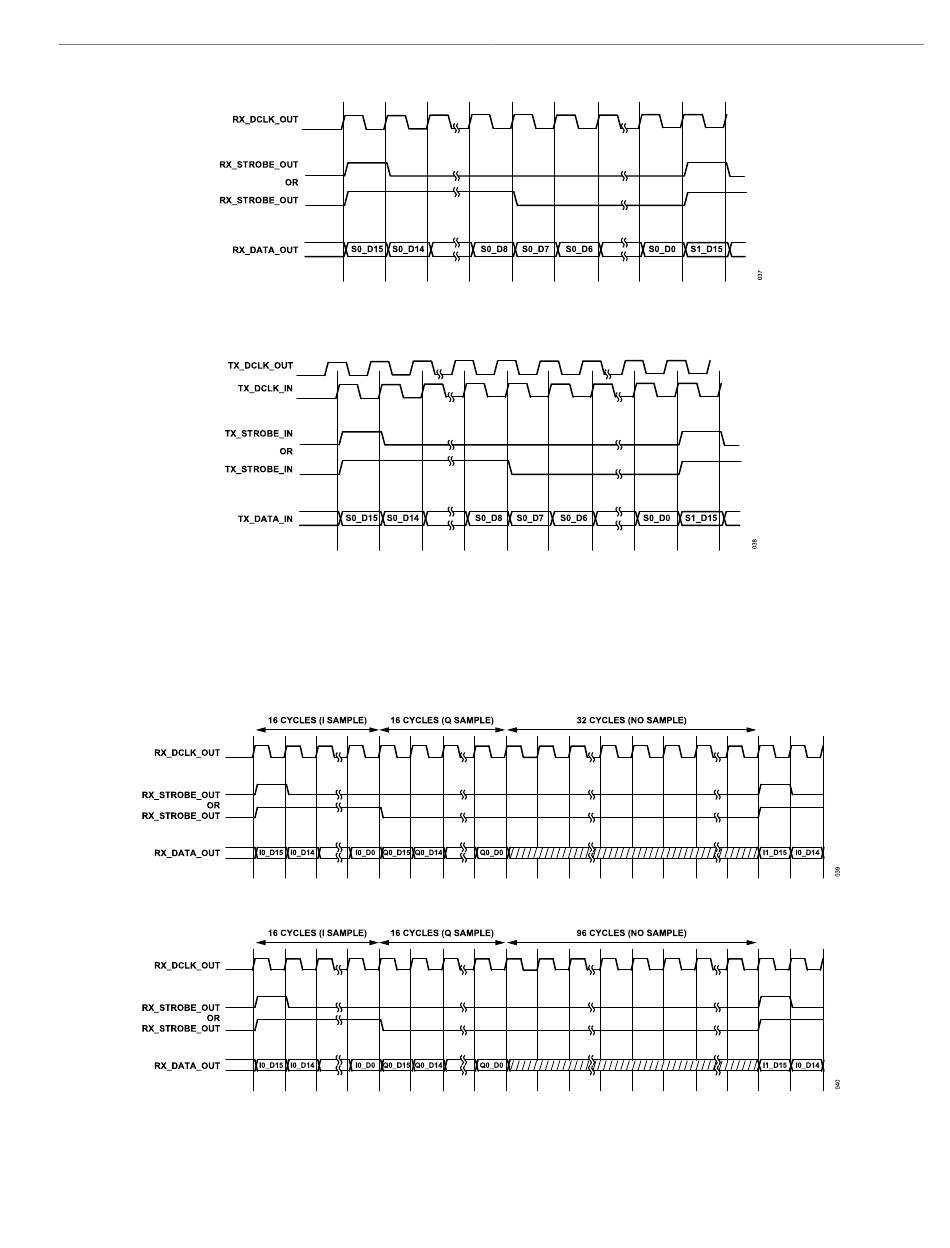

Figure 38 shows the transmit CSSI (Tx) for 16-bit data symbols.
Receive CSSI with Two, Four, and Eight Times Data Clock Rates
The ADRV9001 receive CSSI supports two, four, or eight times of the data clock rate for some applications.
Figure 39, Figure 40, and Figure 41
The strobe pulse validates the start of the 32-bit I and Q samples, and the remaining data bits are ignored.
Figure 39. Receive CSSI Timing with 2 Times Data Clock Rate for 16-Bit I/Q Data Sample (MSB First), 32 Cycles
Figure 40. Receive CSSI Timing with 4 Times Data Clock Rate for 16-Bit I/Q Data Sample (MSB First), 96 Cycles
analog.com
Figure 37. Receive CSSI Timing for 16-Bit Symbols (MSB First)
Figure 38. Transmit CSSI Timing for 16-Bit Symbols (MSB First)
show the receive CSSI (Rx1 and Rx2) for 16-bit I/Q data sample with two, four, and eight times clock rates.
ADRV9001
Rev. 0 | 64 of 351
