Reference Manual ADRV9001
ADRV9001 EVALUATION SYSTEM

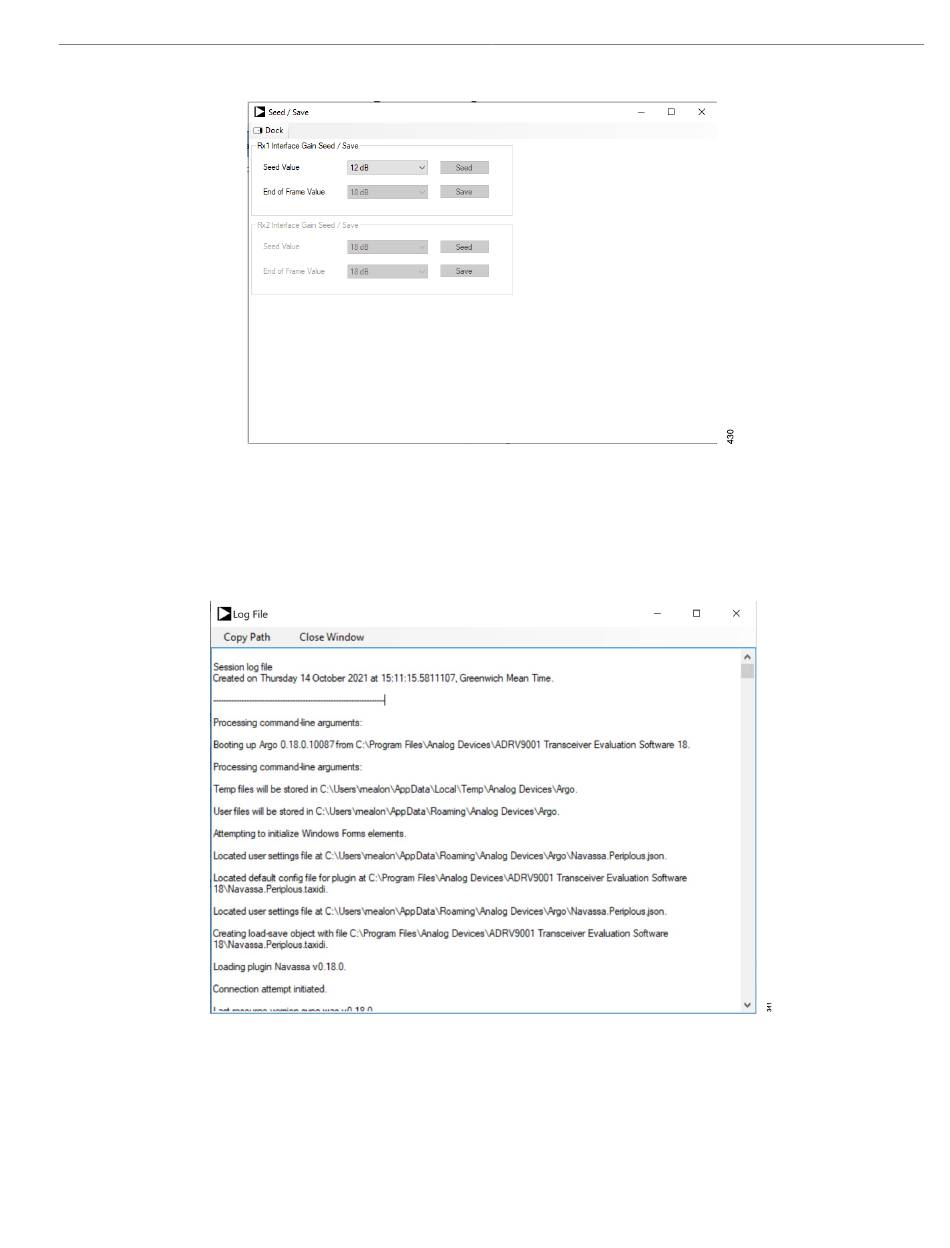

Figure 329. Interface Gain Seed / Save
Log File
The Log File button at the top of the GUI shows the logging information of the system. If the PC is connected to the evaluation platform, the log
file shows the version numbers for the different components of the system, including the firmware, FPGA, API, and others. If errors occur, for
example, programming the chip fails, the log file provides certain debugging information on what is failing.
Figure 330. Log File Window
Sample Code
Use Matlab and Python to initialize the system. First, connect the PC to the part by clicking Connect. Then, configure the system to the desired
state and program. After the programming is successful, click Sample Code-> Matlab / Python/ C99/ C# in the GUI to generate Matlab,
Python, C, and C# initialization code. Then execute the generated Matlab Python or C code to bring the part to the same desired state as the
GUI.
