Reference Manual
SYNTHESIZER CONFIGURATION AND LO OPERATION

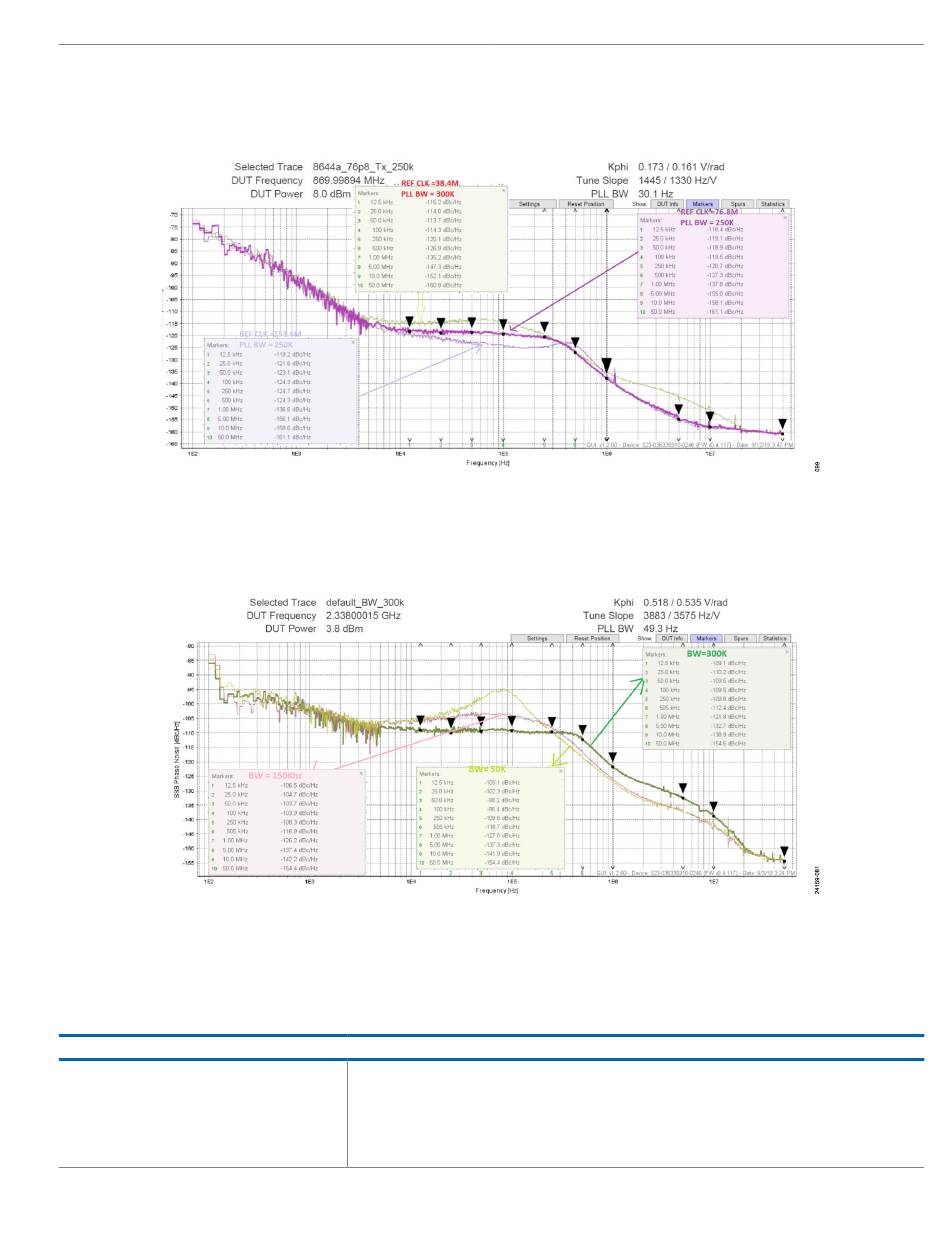

Figure 99 shows that the PLL phase noise is highly dependent on the PFD frequency (REF_CLK). A higher PFD frequency achieves a better
phase noise.
Figure 100 shows where a trade off can be made between the close-in phase noise and far-end phase noise by adjusting the loop filter
bandwidth. As mentioned, the higher the loop filter bandwidth, the better the close-in noise but with the scarification of the far-end noise, and
vice versa.

API OPERATION

Data Structure and Enumerations
Table 43. Data Structures Related to LO Operation
Data Structure
adi_adrv9001_Device_t
adi_adrv9001_Carrier_t
adi_common_Port_e
adi_common_ChannelNumber_e
adi_adrv9001_LoGenOptimization_e
analog.com
Figure 99. Effect of PFD (REF_CLK) Frequency on PLL Phase Noise
Figure 100. Effect of Loop Filter Bandwidth on PLL Phase Noise
Description
Data structure to hold ADRV9001 device instance settings.
Carrier structure for carrier configuration.
Enumeration of port types.
Enumeration of channel numbers.
Enumeration of LO optimization.
ADRV9001
Rev. 0 | 107 of 351
