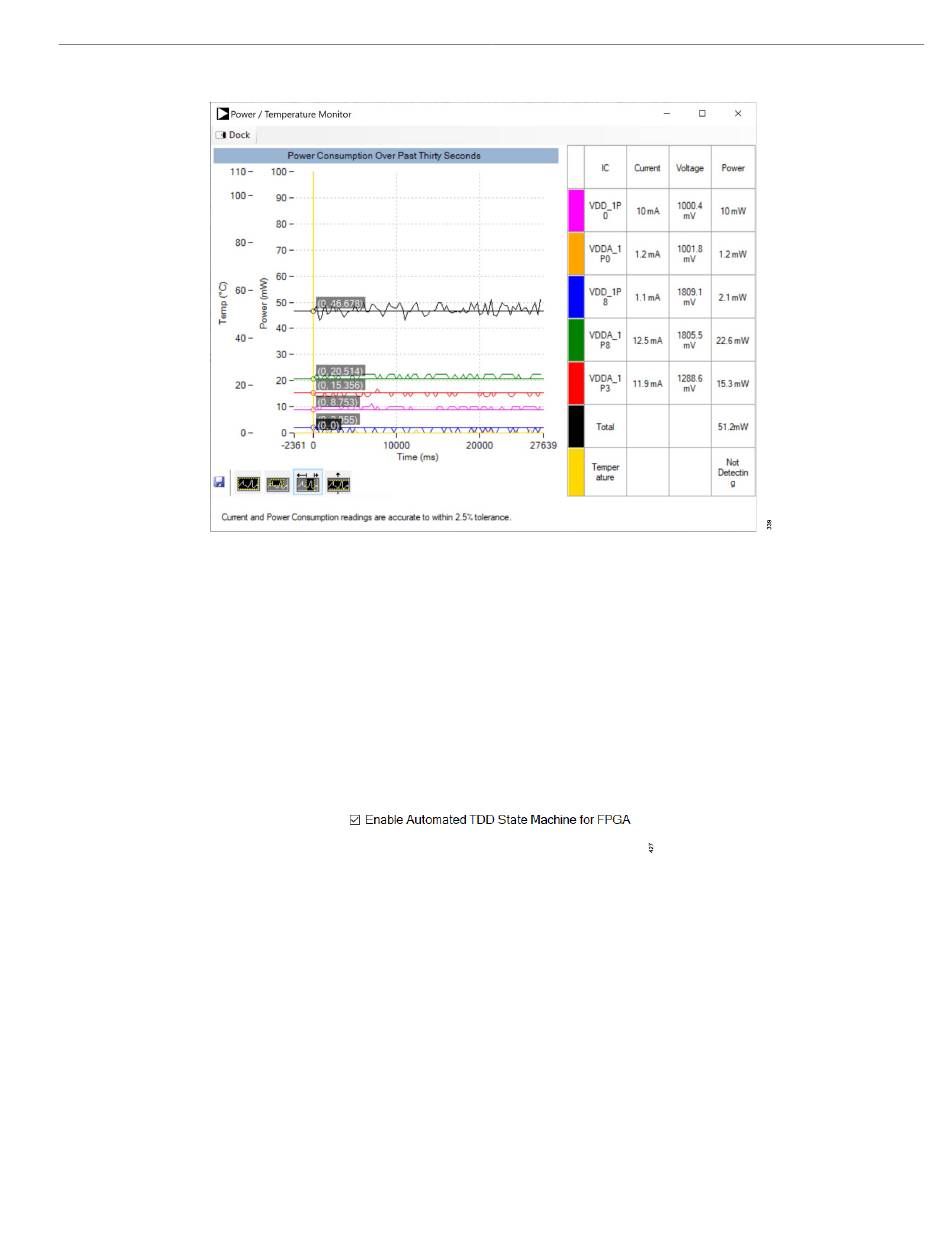

Figure 325. Power / Temperature Monitoring Window
Power Savings
This option opens a window with radio button options to change the system state for monitor mode. Select the "Monitoring" button to force the
state into monitor mode. Similarly select "Detected" to push the state to detected. There are options to toggle monitor mode enable and wake
up pins, also options to toggle both channels power saving pins. For more information on this see Power Saving and Monitor Mode and Power
Savings and Monitor Mode
Timing Diagram
The timing diagram window will show when the "Enable Automated TDD State Machine for FPGA" option in the Automated TDD tab is
selected.
Figure 326. Enable Auto TDD option in TDD Tab
This window has two tabs, the first tab shows a visual representation of the timing diagram of all the TDD signals that have been input into the
Automated TDD signal table. The second shows a visual representation of the hopping signals from the hop tables in the Carriers tab and
needs frequency hopping enabled to display the signals.
