ADRV9001 EVALUATION SYSTEM
When the evaluation hardware is connected to a PC, and to start using the complete evaluation system, the TES establishes a connection
with the Xilinx platform system through the Ethernet connection upon clicking Connect. Upon establishing proper connection, configure an
evaluation hardware. Upon selecting the Connection tab, the top part of that window shows the TCP IP address (default 192.168.1.10) and
Port Number (default 55557), where the bottom part of the window displays the information about the connected hardware and revisions of
different software setup blocks. DHCP is enabled by default in Firmware version 0.14.5.5. When connecting the evaluation platform directly
to a PC, the default IP address works. If connecting to the platform through a router, then identify and populate the IP address into the TES
before connecting. Contact the Analog Devices applications engineering team if the ADRV9001 evaluation system must operate over a remote
connection and a different IP address is required for the Xilinx platform. For common connection issues, reference the debug section in the
Engineer Zone.
Figure 290 shows an example of the correct connection between a PC and a Xilinx platform with an ADRV9001 daughter card connected to it.
In this window, check both the hardware version and all software component versions used by the system in the current TES revision.
Configuring the Device and Board
The Device Configuration tab has the setup options for the device. In this page, select the following:
►
Product
►
analog.com

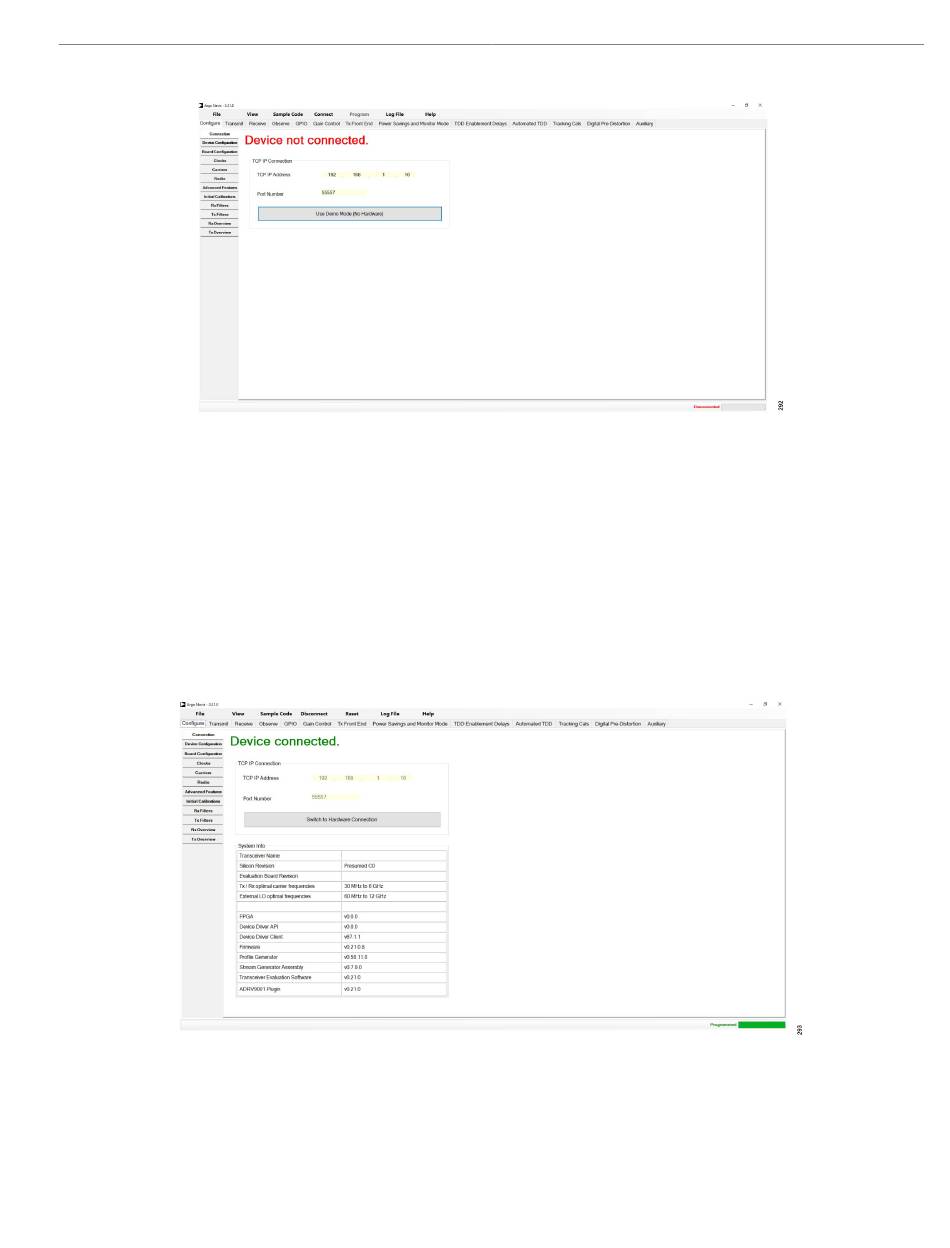

Figure 289. Main Interface of Transceiver Evaluation Software Bridge
Figure 290. Setup Revision Information
