Reference Manual
DATA INTERFACE
Also manually edit the CMOS DDR relative configurations based on the BBIC requirements.
corresponding Rx output Clock/Strobe/Data timing diagram with different CMOS DDR configurations.
A set of API commands can set and inspect the SSI test/debug functions.
Table 28. SSI Test/Debug API List
SSI Function Name
adi_adrv9001_Ssi_Rx_TestMode_Configure
adi_adrv9001_Ssi_Tx_TestMode_Configure
adi_adrv9001_Ssi_Tx_TestMode_Status_Inspect
adi_adrv9001_Ssi_Loopback_Set
adi_adrv9001_Ssi_Delay_Configure
adi_adrv9001_Ssi_Delay_Inspect
adi_adrv9001_Ssi_PowerDown_Set
CSSI/LSSI TESTABILITY AND DEBUG
The ADRV9001 SSI has built-in test pattern generator and checker to quickly test and debug the SSI between the ADRV9001 and baseband
processor.
Figure 63
shows the ADRV9001 SSI testability and debug diagram with a baseband processor.
analog.com

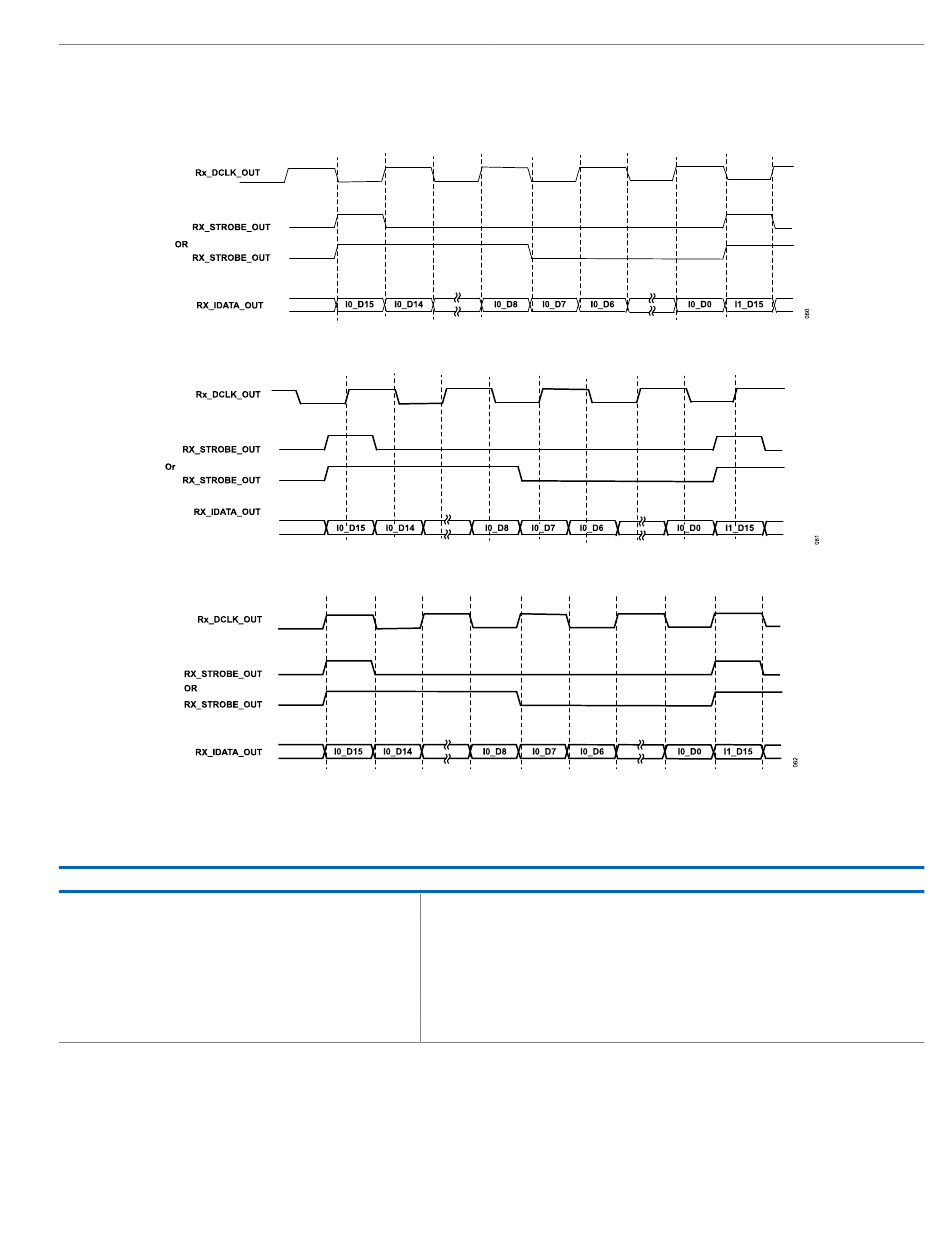

Figure 60. RX CMOS DDR SSI Output (cmosDdrPosClkEn=True, cmosClkInversionEn=False)
Figure 61. RX CMOS DDR SSI Output (cmosDdrPosClkEn=False, cmosClkInversionEn=True)
Figure 62. RX CMOS DDR SSI Output (cmosDdrPosClkEn=True, cmosClkInversionEn=True)
Description
Configures the SSI test mode for the specified Rx channel.
Configures the SSI test mode for the specified Tx channel.
Inspects the SSI test mode status for the specified Tx channel.
Enables the Rx to Tx SSI loopback.
Programs the SSI delay configuration.
Gets the SSI delay configuration from the ADRV9001 device.
Sets the power-down mode for the specified channel and SSI type.
Figure
60,
Figure
Table 28
summarizes these.
ADRV9001
61, and
Figure 62
show the
Rev. 0 | 74 of 351
