ADAU1401A, ADAU1401, ADAU1701, and ADAU1702 SigmaDSP Evaluation Board

GENERAL DESCRIPTION

The EVAL-ADAU1401AEBZ is a platform that operates all of
the ADAU1401A's functions with a full range of analog and
digital inputs and outputs. Digital I/O connections are available
in both S/PDIF and 3-wire serial data formats. The DSP is
controlled by the SigmaStudio™ software, which interfaces to
the board through a USB connection. This evaluation board is
powered by a single supply, which is regulated to the proper
voltages on the board. The PCB is in a 6" × 6" 4-layer design,
with a single ground plane and a single power plane on the
inner layers.
The ADAU1401A can be controlled via the USBi interface
control board connected to the I
interface. On-board self-boot EEPROM is included for
operating the board independently of the SigmaStudio software.
Push-buttons, LEDs, potentiometers, and other interface
options on the included GPIO board can be connected to the
evaluation board to enable GPIO control.
The EVAL-ADAU1401AEBZ can also be used for evaluation of
the pin-compatible
The differences between the ADAU1401A, ADAU1401,
ADAU1701, and ADAU1702 are:
The ADAU1701, ADAU1401A, and ADAU1401 have 1024
program RAM locations, while the ADAU1702 has 512
program RAM locations.
The ADAU1701 has 2k words of data memory, while the
ADAU1702 has 0.5k words of data memory.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
2
C/SPI communications
ADAU1701
and
ADAU1702
SigmaDSP®s.

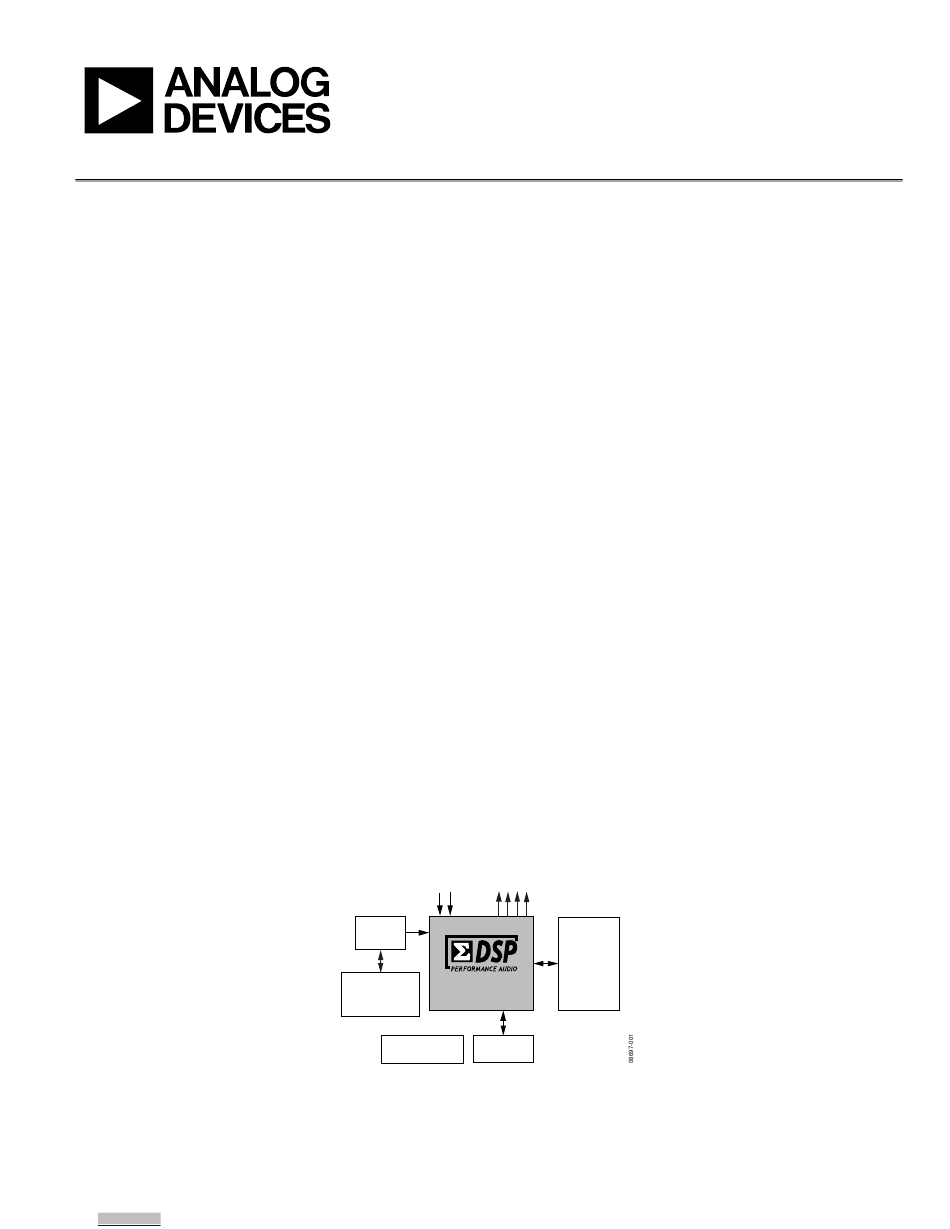

EVALUATION BOARD BLOCK DIAGRAM

CPLD
S/PDIF
RECEIVER AND
TRANSMITTER
Evaluation Board User Guide
The ADAU1401A is qualified over the automotive
temperature range (−40°C to +105°C), while the
ADAU1701 and ADAU1702 are qualified over the
consumer temperature range (0°C to 70°C).
The ADAU1401 is an older revision of the ADAU1401A.
The ADAU1401A is recommended for new designs.

PACKAGE CONTENTS

EVAL-ADAU1401AEBZ evaluation board
GPIO control board
USBi board
Universal power supply
Mini-USB cable
Evaluation board/software quick-start guide, including a
download link for the SigmaStudio tools

OTHER SUPPORTING DOCUMENTATION

When using this evaluation board, refer also to the following
documentation available at www.analog.com:
ADAU1401A, ADAU1401, ADAU1701, ADAU1702 data
sheets
AN-923 Application Note, Designing a System Using the
ADAU1701/ ADAU1702 in Self-Boot Mode
AN-951 Application Note, Using Hardware Controls with
SigmaDSP GPIO Pins
AN-1006 Application Note, Using the EVAL-ADUSB2EBZ
SigmaStudio help file (included with the software)
ANALOG
ANALOG
INPUTS
OUTPUTS
INTERFACE
ADAU1401A
POWER SUPPLY
USB
REGULATION
INTERFACE
Figure 1.
Rev. A | Page 1 of 20
MULTI-
PURPOSE
PIN
UG-072
