ADRV9001 EVALUATION SYSTEM
TDD Enablement Delays
For more detailed information on TDD enablement delays, see the
Automated Time Division Duplexing
The ADRV9001 supports the automatic time division duplexing (TDD) operation. Send and receive TDD-framed data by configuring this tab
(Figure 316). This of course depends on how the system and setup is selected. The ADRV9001 comes with predefined timing configurations by
default. However, configure the timing as needed.
In the Automated TDD tab, configure the parameters using TDD configuration files:
Frame and Sequences
►
Specify the duration of a frame.
►
Select from sequencing of frames.
►
Specify the number of frames in a sequence.
►
Select the "Enable Automated TDD" checkbox. A prompt displays a timing diagram. This diagram updates every time one of the parameters
in the TDD table changes. This timing diagram, as shown in
analog.com

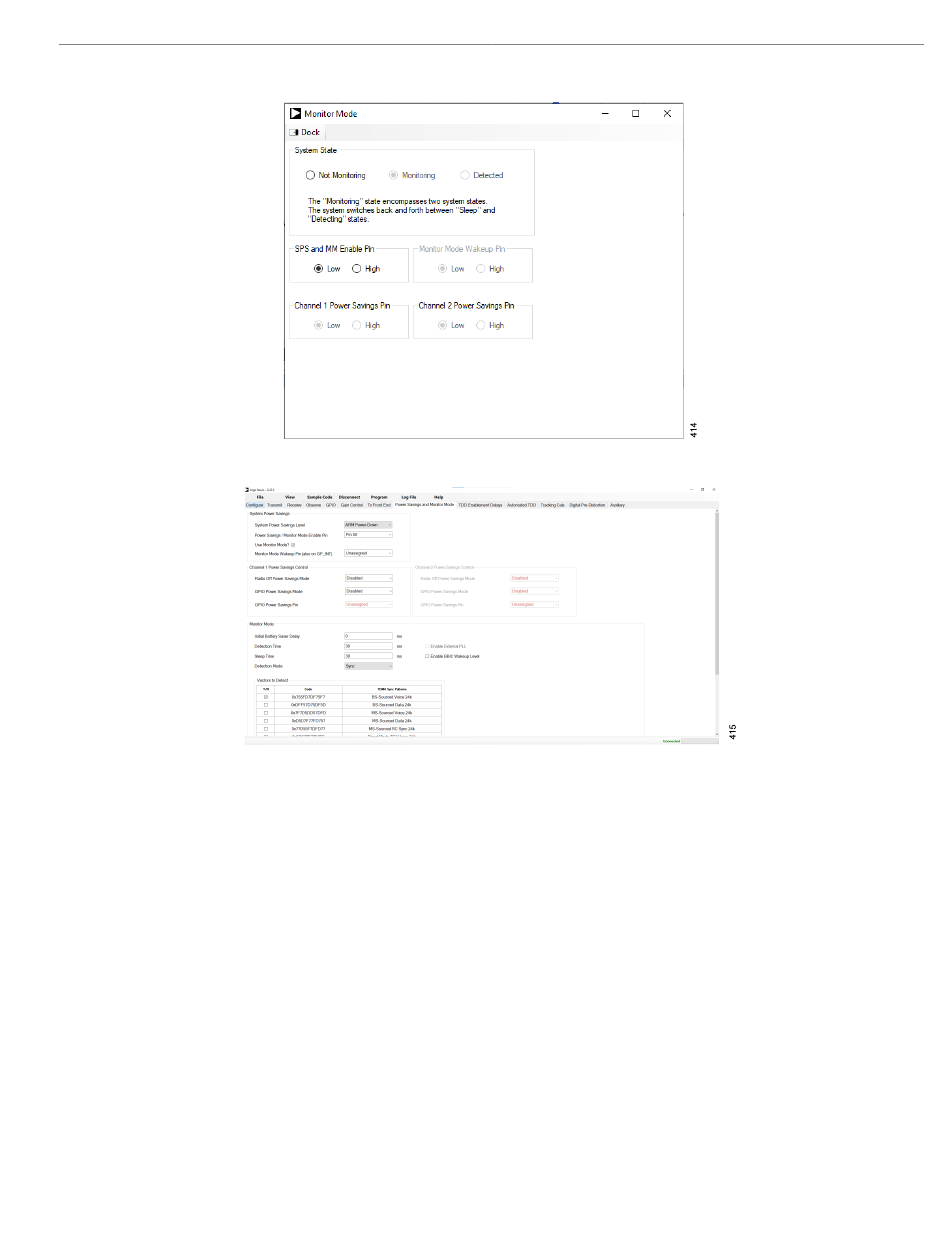

Figure 314. Monitor Mode Window
Figure 315. Power Savings and Monitor Mode
Timing Parameters Control
Figure 317, is based off the TDD table in
ADRV9001
section.
Figure 316.
Rev. 0 | 330 of 351
