Evaluation Board User Guide
UG-116
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Setting Up the Evaluation Board for the ADP151
FEATURES
Input voltage range: 2.2 V to 5.5 V
Output current range: 0 mA to 200 mA
Output voltage accuracy: ±1%
Operating temperature range: −40°C to +125°C
GENERAL DESCRIPTION
The ADP151 evaluation board is used to demonstrate the
functionality of the ADP151 series of linear regulators.
Simple device measurements such as line and load regulation,
dropout voltage, and ground current can be demonstrated with
only a single voltage supply, a voltmeter, a current meter, and
load resistors.
For more information about the ADP151 linear regulator, see
the ADP151 data sheet.

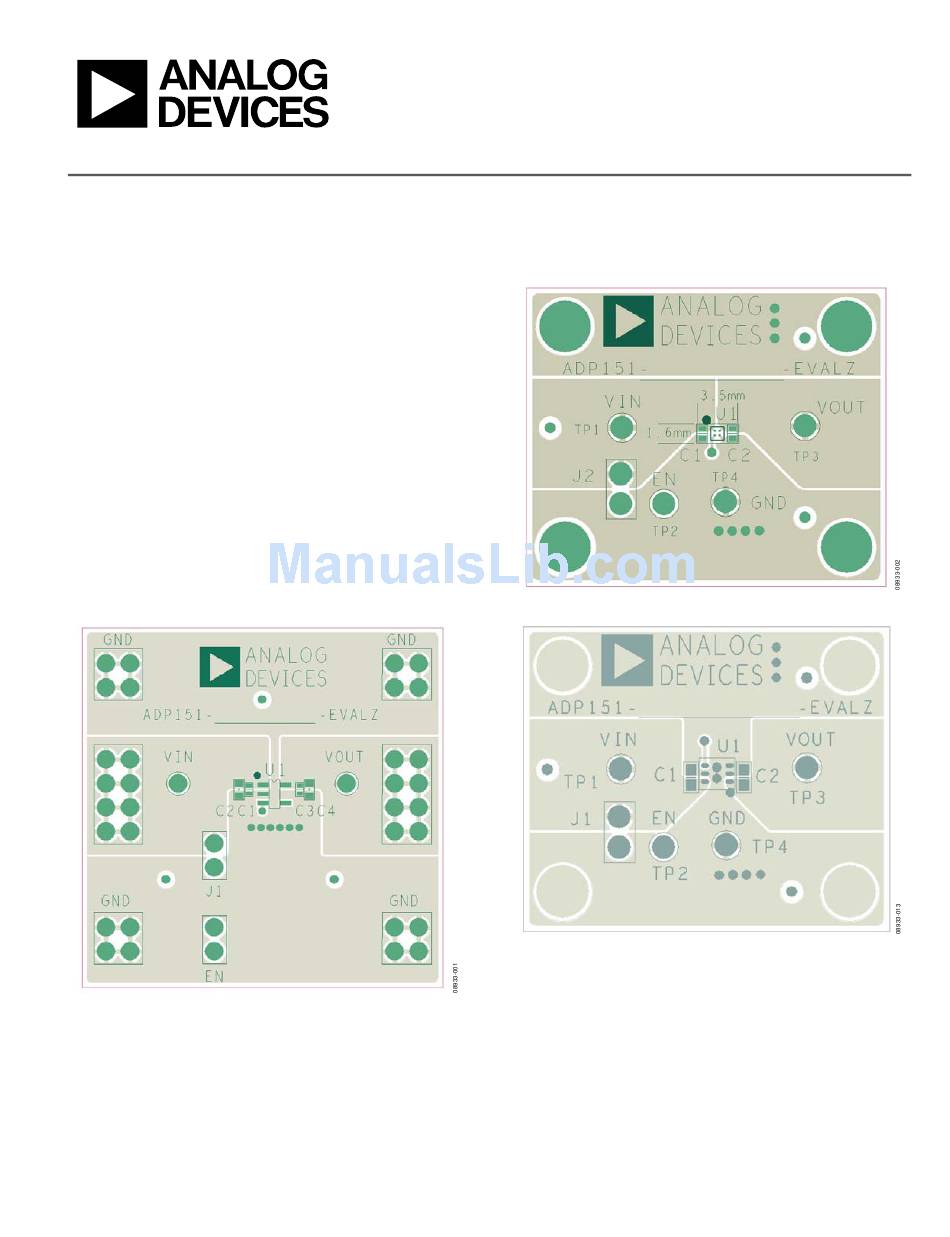

EVALUATION BOARDS
Figure 2. WLCSP PCB Layout
Figure 1. TSOT PCB Layout
Figure 3. LFCSP PCB Layout
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
www.BDTIC.com/ADI
Rev. A | Page 1 of 12
WARNING AND LEGAL TERMS AND CONDITIONS.
Advertisement
Table of Contents
Related Manuals for Analog Devices ADP151
Summary of Contents for Analog Devices ADP151
-
Page 1: Features
Output voltage accuracy: ±1% Operating temperature range: −40°C to +125°C GENERAL DESCRIPTION The ADP151 evaluation board is used to demonstrate the functionality of the ADP151 series of linear regulators. Simple device measurements such as line and load regulation, dropout voltage, and ground current can be demonstrated with only a single voltage supply, a voltmeter, a current meter, and load resistors. -
Page 2: Table Of Contents
UG-116 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Measuring Output Voltage ...............4 General Description ................. 1 Line Regulation Measurements...........5 Evaluation Boards................1 Load Regulation Measurements..........5 Revision History ................2 Dropout Voltage Measurements..........6 ... -
Page 3: Evaluation Board Hardware
The evaluation board with the WLCSP package is the ADP151CB-xxx-EVALZ. The evaluation board with the TSOT package is the. ADP151UJ-xxx-EVALZ. The ADP151 evaluation board requires only one input bypass capacitor and one output capacitor for stable operation. Figure 5. Evaluation Board Schematic, WLCSP www.BDTIC.com/ADI... -
Page 4: Measuring Output Voltage
UG-116 Evaluation Board User Guide MEASURING OUTPUT VOLTAGE VOLTAGE SOURCE VOLTMETER 1.99711 – – LOAD Figure 7. Output Voltage Measurement Setup, TSOT VOLTAGE SOURCE VOLTMETER 1.99711 – – LOAD Figure 8. Output Voltage Measurement Setup, WLCSP www.BDTIC.com/ADI Rev. A | Page 4 of 12... -
Page 5: Line Regulation Measurements
Figure 11 shows the typical load regulation performance of an as close as possible to the output capacitor to reduce the effects ADP151 with a 2.8 V output for an input voltage of 3.2 V. of IR drops. LINE REGULATION MEASUREMENTS For line regulation measurements, the output of the regulator is monitored while its input is varied. -
Page 6: Dropout Voltage Measurements
UG-116 Evaluation Board User Guide 2.83 The input supply voltage may need to be adjusted to account for IR drops, especially if large load currents are used. Figure 12 2.82 shows the typical curve of dropout voltage measurements with different load currents. 2.81 2.80 2.79... -
Page 7: Measuring Ground Current
Evaluation Board User Guide UG-116 MEASURING GROUND CURRENT VOLTAGE SOURCE AMMETER 1.99711 – – LOAD Figure 13. Ground Current Measurement Setup, TSOT AMMETER VOLTAGE SOURCE 0.00112 – – LOAD Figure 14. Ground Current Measurement Setup, WLCSP www.BDTIC.com/ADI Rev. A | Page 7 of 12... -
Page 8: Ground Current Consumption
UG-116 Evaluation Board User Guide VOLTAGE SOURCE – AMMETER 0.00112 LOAD – Figure 15. Ground Current Measurement Setup, LFCSP GROUND CURRENT CONSUMPTION Figure 13 and Figure 14 show how the evaluation board can be connected to a voltage source and an ammeter for ground current Ground current measurements can determine how much current measurements. -
Page 9: Bill Of Materials
Manufacturer Part No. C1, C2 Capacitor, MLCC, 1 μF, 10 V, 0402, X5R Murata (or equivalent) Header, single, STR, 2 pins Sullins Connector Solutions PEC02SAAN IC, LDO regulator Analog Devices, Inc. ADP151 www.BDTIC.com/ADI Rev. A | Page 9 of 12... - Page 10 UG-116 Evaluation Board User Guide NOTES www.BDTIC.com/ADI Rev. A | Page 10 of 12...
- Page 11 Evaluation Board User Guide UG-116 NOTES www.BDTIC.com/ADI Rev. A | Page 11 of 12...
-
Page 12: Www.bdtic.com/Adi Rev. A | Page 2 Of
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
