POWER-SUPPLY RECOMMENDATIONS
Make optimizations in the power supply section to reduce the number of individual rails and filters to save on BOM and space. One possible
optimization is the combination of different rails of the same voltage domain. In doing this, it is important to identify the aggressor and victim
rails to decide what to combine and what to keep shielded with an FB filter.
Table 121. Victim and Aggressor Rails
Rail Name
VANNA1_1P3
VANNA2_1P3
VCONV_1P3
For this experiment, the combined rails are as follows. This reduces the number of caps and ferrite beads needed on the board.
analog.com
Rail Type
Victim
Victim
Aggressor

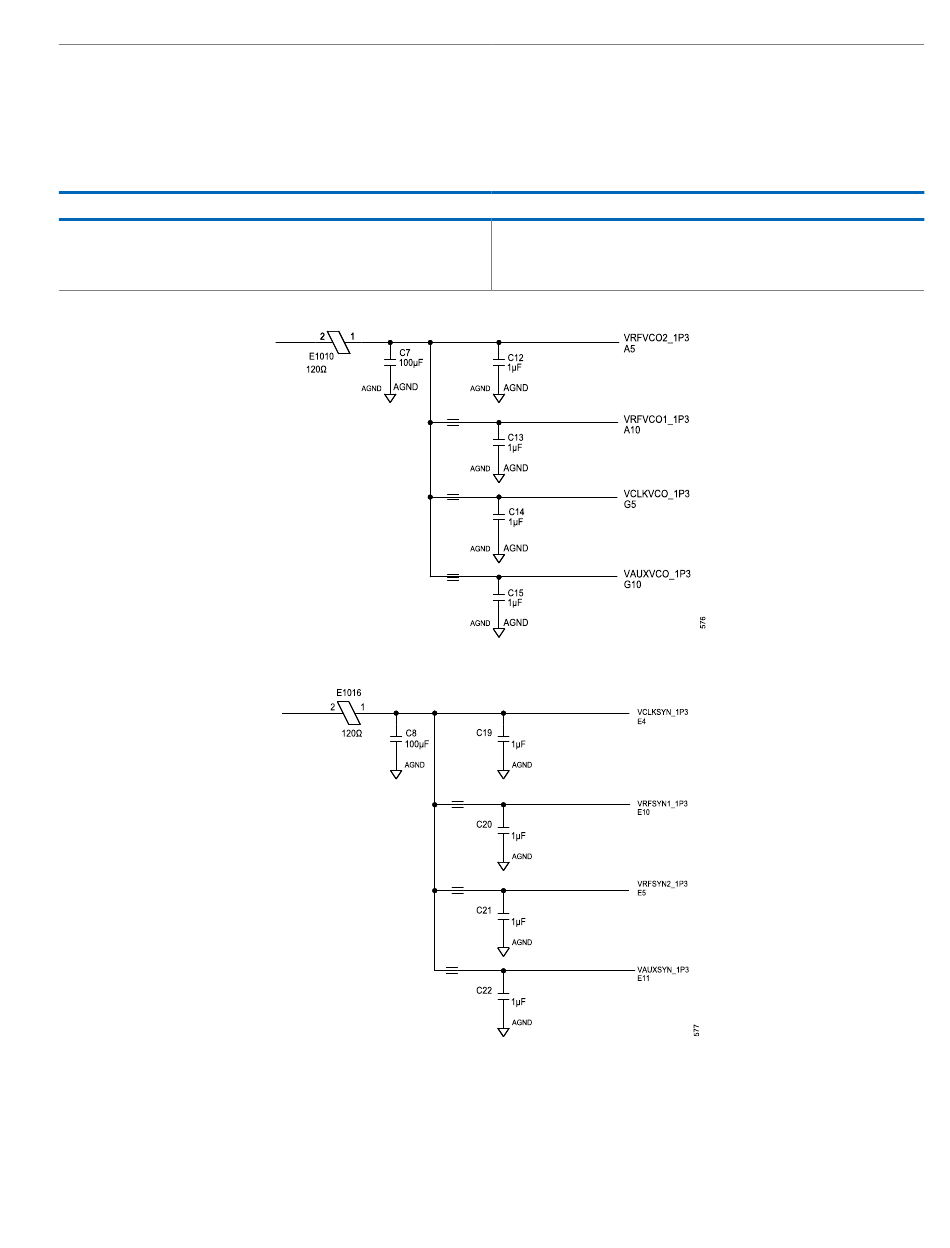

Figure 276. Merged VCO Supplies
Figure 277. Merged SYNTH Supplies
ADRV9001
Rev. 0 | 297 of 351
