Reference Manual
RF PORT INTERFACE INFORMATION
TRANSMITTER RF PORT IMPEDANCE MATCHING NETWORK
TX1± and TX2± Impedance Matching Network
For the transmitter path, the ADRV9001 evaluation board uses both the top and bottom layers of the PCB evaluation platform to accommodate
two balun footprints. The 0805 footprint accommodates the high- frequency narrowband baluns while the backside accommodates the larger
AT224-1A case style transformer.
analog.com

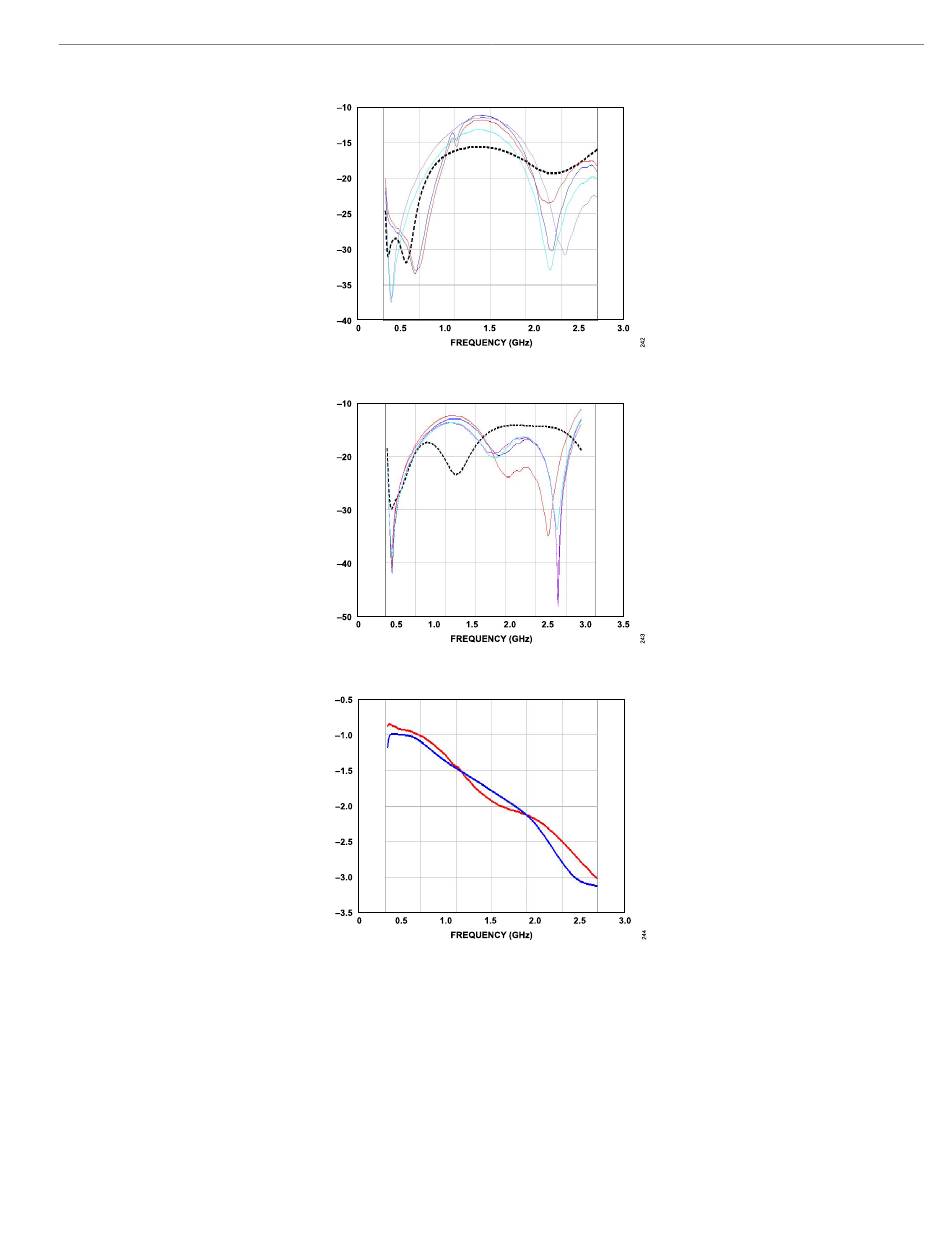

Figure 236. Return Loss of RX1(2) A Port
Figure 237. Return Loss of RX1(2) B Port
Figure 238. Insertion Loss – Simulated RX1(2) A Port – Red Curve RX1(2) B Port – Blue Curve
ADRV9001
Rev. 0 | 257 of 351
