Reference Manual ADRV9001
ADRV9001 EVALUATION SYSTEM
the ADRV9001 performance. However, as of the date of the current release of this user guide, there are no known incompatibilities with
any versions and derivatives of the ZC706. For example, the following versions have been successfully used for evaluation purposes:
EK-Z7-ZC706-G and EVAL-TPG-ZYNQ3

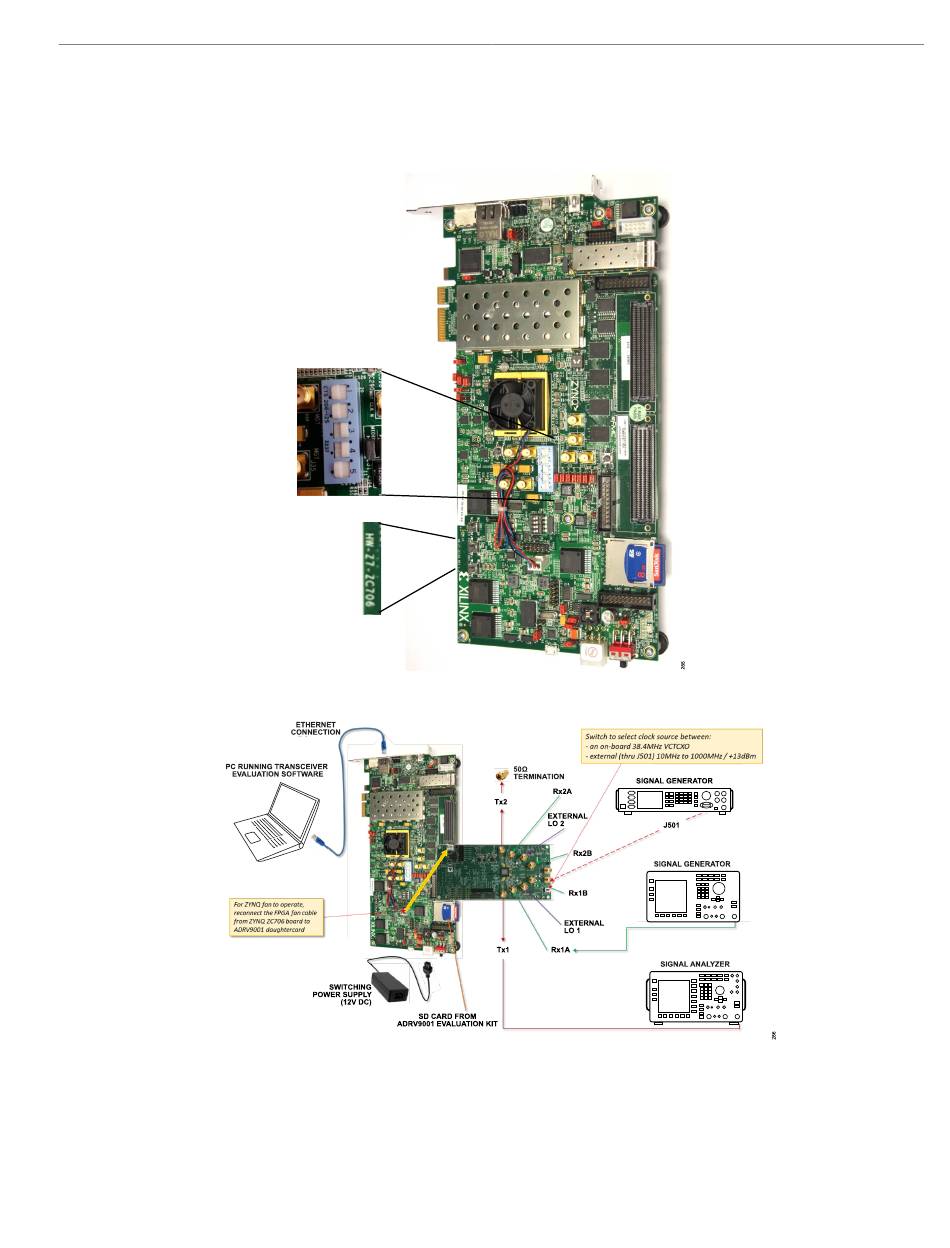

Figure 282. Xilinx Evaluation Board with Jumper Settings and Switch Position Configured to Work with ADRV9001 Evaluation Platform
Figure 283. ADRV9001 Evaluation Card and ZYNQ ZC706 Evaluation Platform with Connections Required for Testing
The steps to set up the evaluation board for testing are as follows:
1. Connect the ADRV9001 evaluation card and the ZYNQ ZC706 evaluation platform together, as shown in Figure 283. Use the LPC FMC
connector (J5). Take care to align the connectors properly.
