Reference Manual
ADRV9001
ADRV9001 EVALUATION SYSTEM

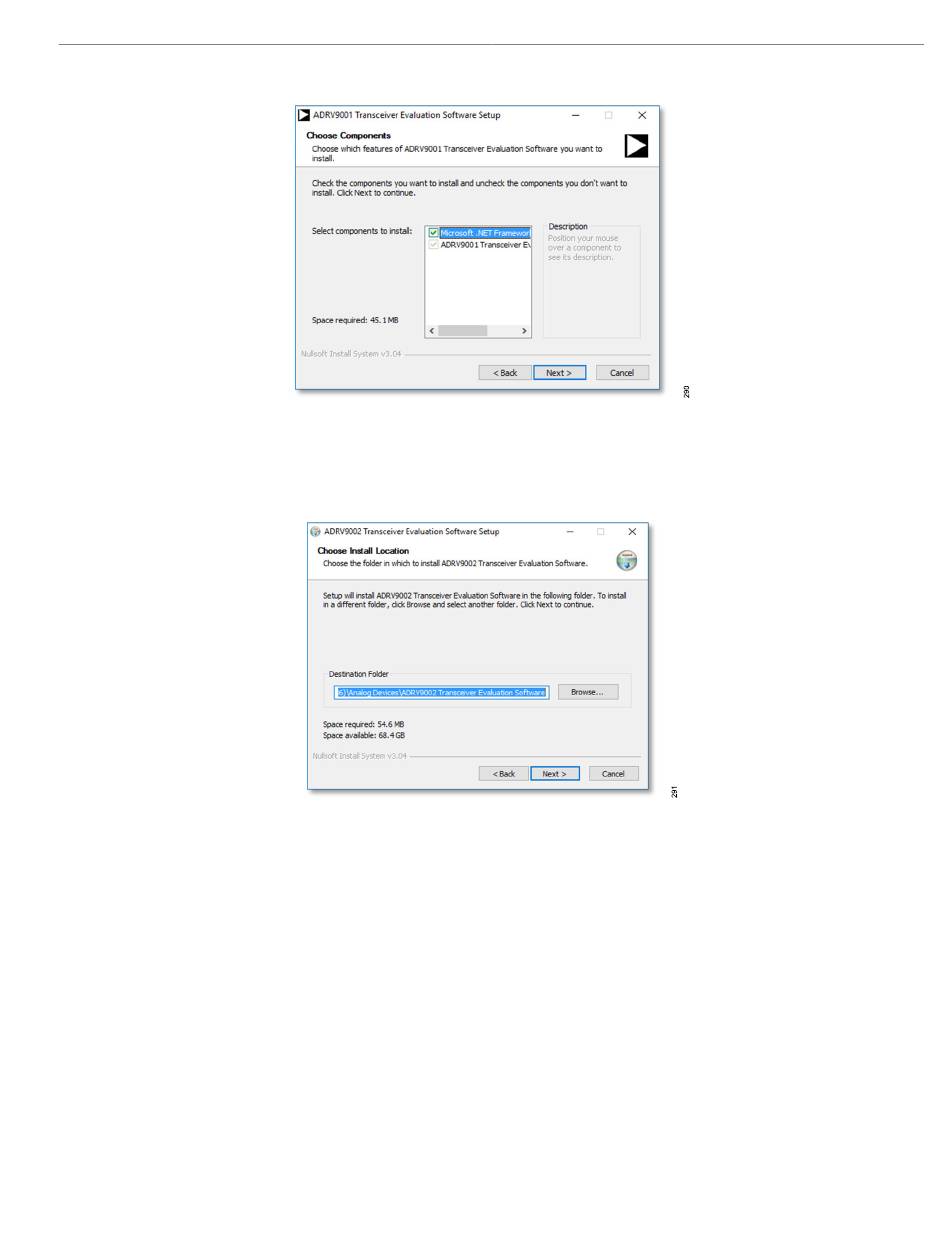

Figure 287. Software Installation Components
During installation process, the TES asks for the destination folder to install the files
(Figure
288). Stay with the default location C:\Program
Files (x86)\Analog Devices\ADRV9002 Transceiver Evaluation Software. If this is not possible, install the TES into any other location with
write access. Select the shortcut configuration as the last step of the installation process.
Figure 288. Software Installation Directory
Starting the Transceiver Evaluation Software
Start the TES by clicking "Start → ADRV9001 Transceiver Evaluation Software".
Figure 289
shows the opening page of the TES after
activation.
analog.com
Rev. 0 | 311 of 351
