ADRV9001 EVALUATION SYSTEM
2. Make sure that all jumpers on the ZYNQ ZC706 evaluation platform as well as the SW11 position (1, 2, 5 = "A" position) match the settings
shown in Figure 282.
3. Insert the SD card that comes with the ADRV9001 evaluation kit into the ZYNQ ZC706 evaluation platform SD card slot (J30).
4. On the ADRV9001 evaluation card, provide a device clock (frequency must match the setting selected in the TES) at a +13 dBm power
level to the J501 connector ((this signal drives the reference clock into the ADCLK944 clock distribution chip on the board (the Q1/Q1_N
pins of the ADCLK944 generate the DEV_CLK for the ADRV9001 and REF_CLK for the Xilinx FPGA on the ZYNQ platform)).
a. Note that the quality of the clock source used to generate the DEV_CLK directly impacts the overall system performance. Use a
high-quality, stable, and low-phase noise clock source .
5. Connect a 12 V, 5 A power supply to the ZYNQ ZC706 evaluation platform at the J22 header.
6. Connect the ZYNQ evaluation platform to the PC with an Ethernet cable (connect to P3). Driver installation is not required.
a. When the Ethernet port is already occupied by another connection, use a USB-to-Ethernet adapter.
b. On an Ethernet connection dedicated to the ZYNQ evaluation platform, manually set the following:
1. IPv4 Address to: 192.168.1.2
2. IPv4 Subnet Mask to: 255.255.255.0
See Figure 284 for more details. Make sure the firewall on the PC does not block the following ports.
22 (SSH protocol)
►
55557 (access to the evaluation software on the ZYNQ platform).
►
Note that the ZYNQ ZC706 evaluation platform IP address is set by default to: 192.168.1.10.
►
Hardware Setup (ZCU102)
The Xilinx ZCU102 platform setup requires the following steps:
1. All jumpers are in the positions shown in
2. The SW6 is in position, as shown in
3. Place the SD card included with the evaluation kit in the J100 slot of the ZYNQ platform.
Figure 286 shows the evaluation hardware setup.
analog.com

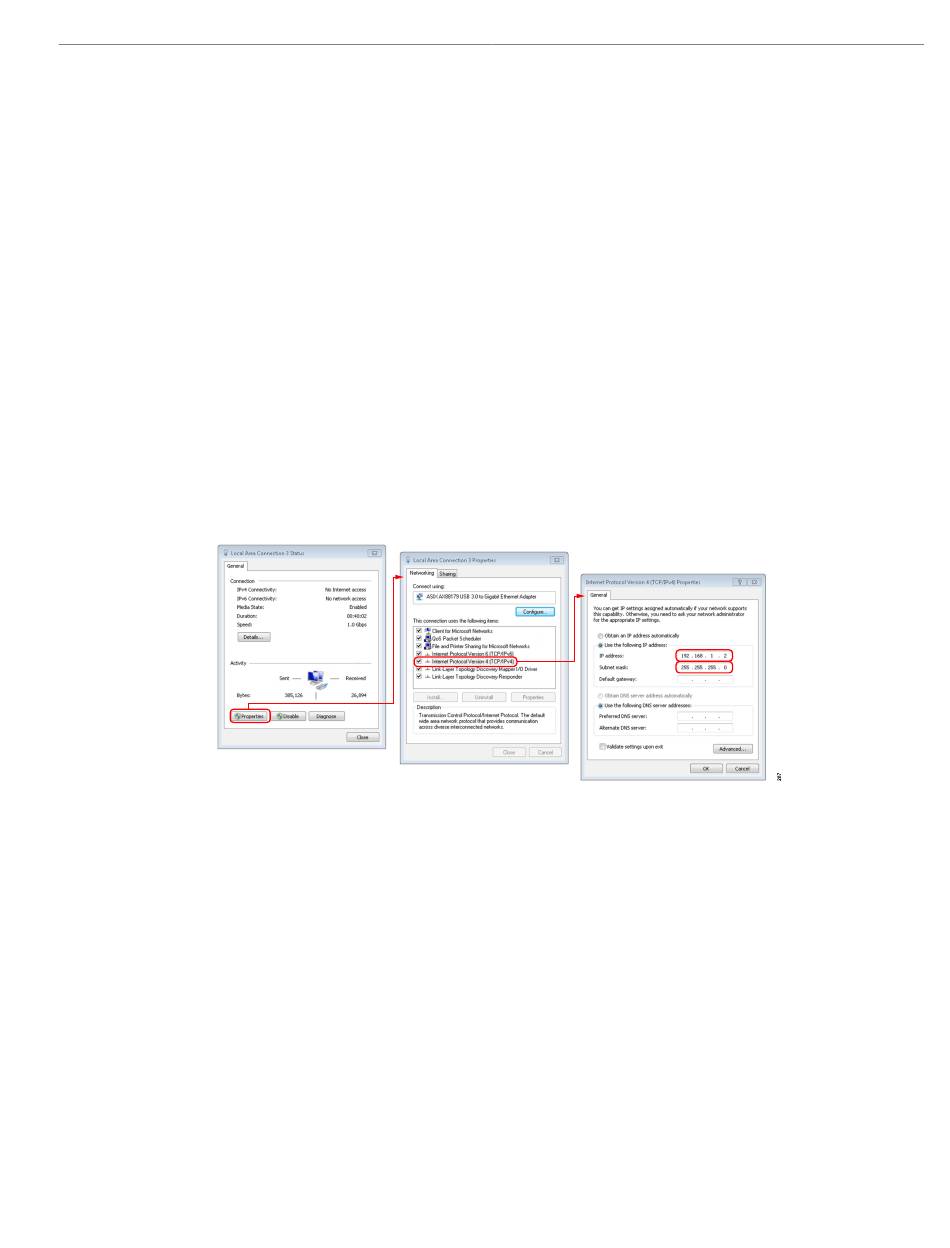

Figure 284. IP Settings for Ethernet Port Dedicated for ZYNQ ZC706 or ZCU102 Evaluation Platform
Figure 285.
Figure 282 (2, 3, 4 = A position).
