RECEIVER GAIN CONTROL

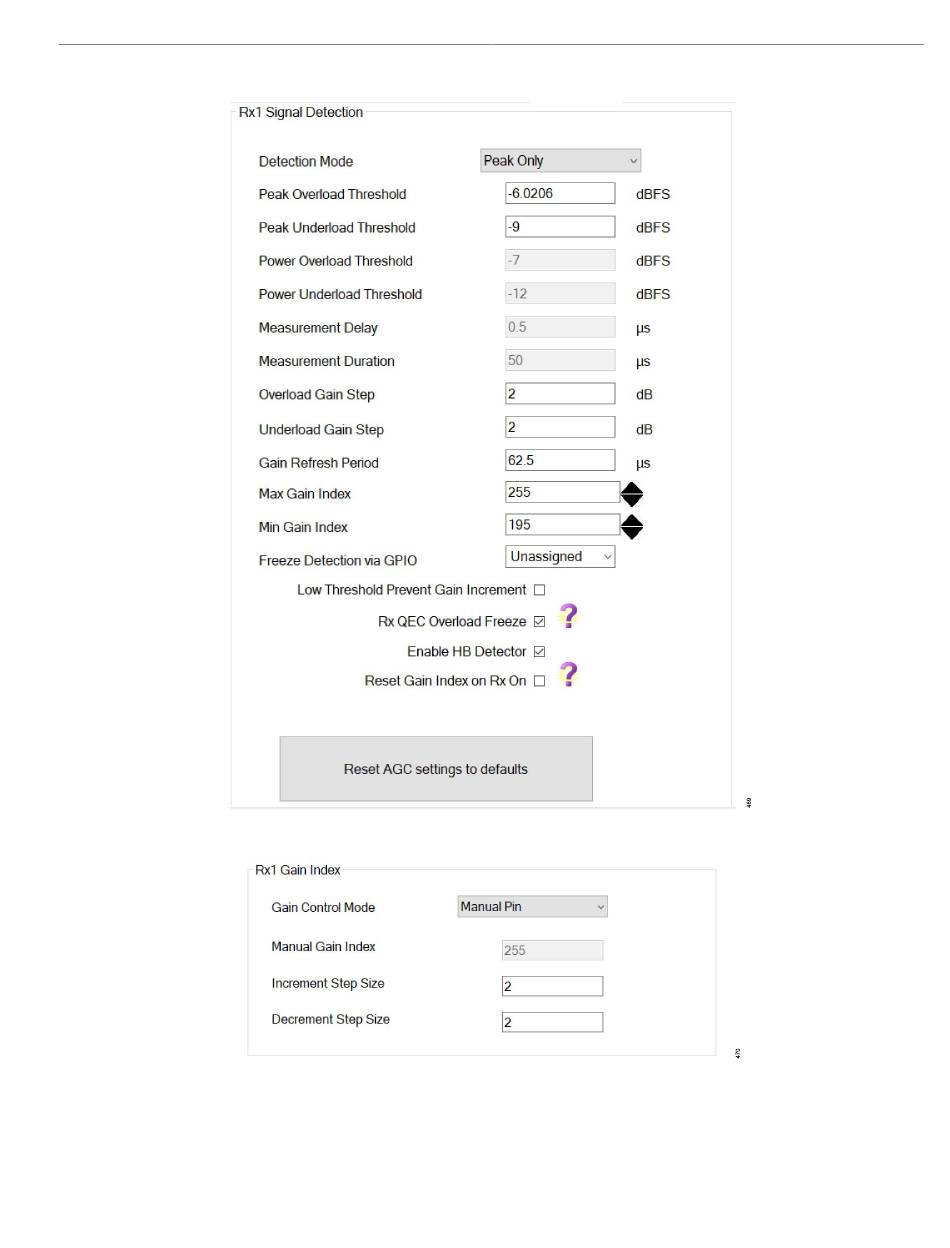

Figure 169. TES Configuration for Signal Detection Parameters
Figure 170. TES Configuration for Manual Control Mode Parameters
After finishing all the configurations, start the receive operations and observe the receiver gain changes. It is recommended to start from the
default settings and change the parameters one by one as needed. "Reset AGC settings to defaults" resets all the parameters to their default
values.
