ADRV9001 EVALUATION SYSTEM
a. The upcoming frame is assigned to the transmitter (first box).
b. There should not be any signal coming out of the transmitter.
3. Click Commit Frame-After-Next to Tx and Perform Hop again.
a. The current frame is played for a frequency of 1000 MHz (highlighted in blue).
b. Assign the next frame as the transmitter as well.
c. The signal should appear at the transmitter output as 1000.001 MHz single tone.
4. Repeat the last step.
a. Advance the current frame to the next 1000.001 MHz.
b. The previous entry returns to the 'Unassigned' state.
c. Set the next frame to 1000.002 MHz.
d. The signal must appear at the transmitter output as 1000.001 MHz single tone.
analog.com

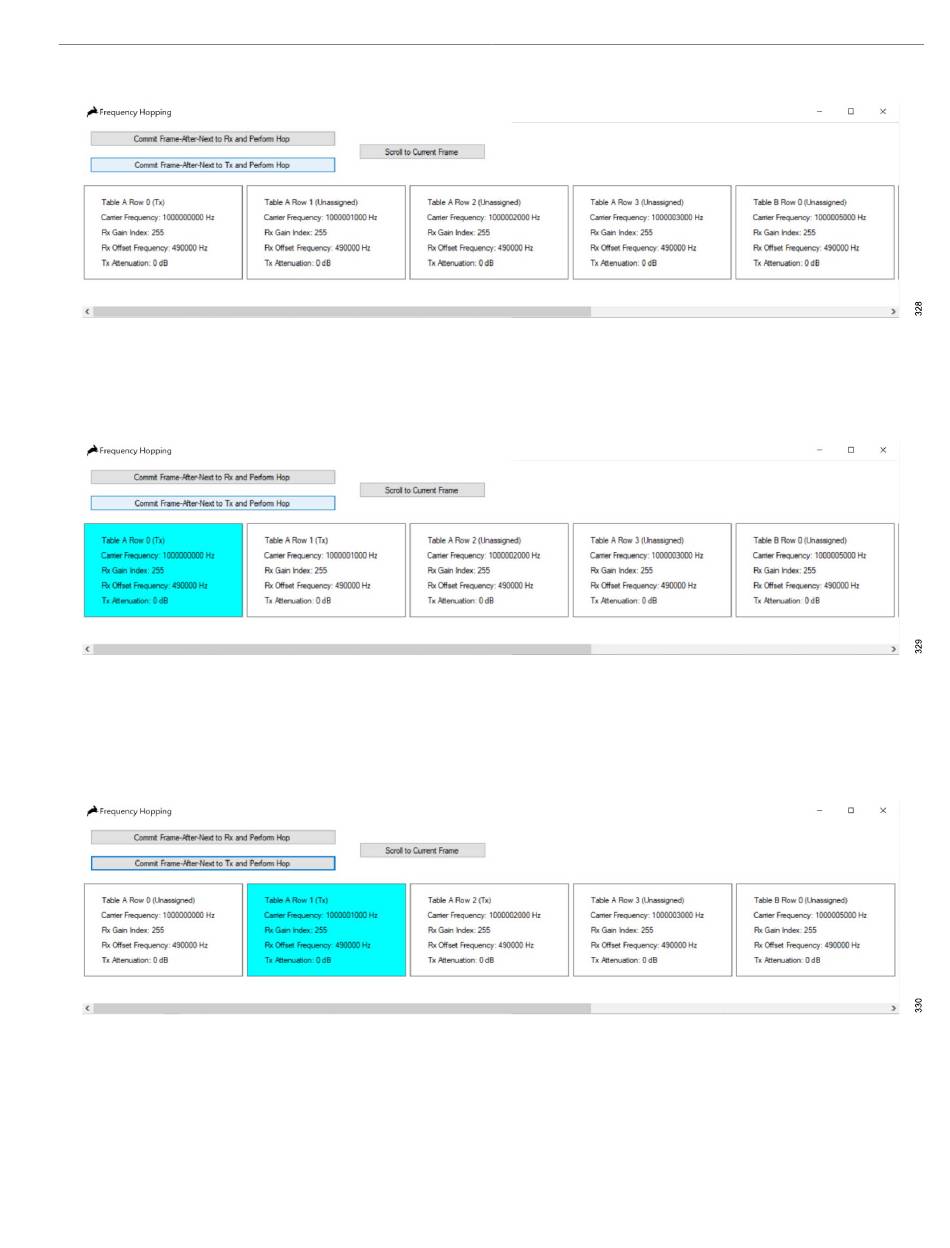

Figure 336. Manual Frequency Hopping Using TES
Figure 337. Manual Frequency Hopping Using TES
Figure 338. Manual Frequency Hopping Using TES
