RF PORT INTERFACE INFORMATION
RF chokes are used to bias the differential transmitter output lines and connect into a transformer.
►
RF chokes are used to bias the differential output lines that are AC-coupled into the input of a driver amplifier.
►
Transmitter Interface Configurations
analog.com

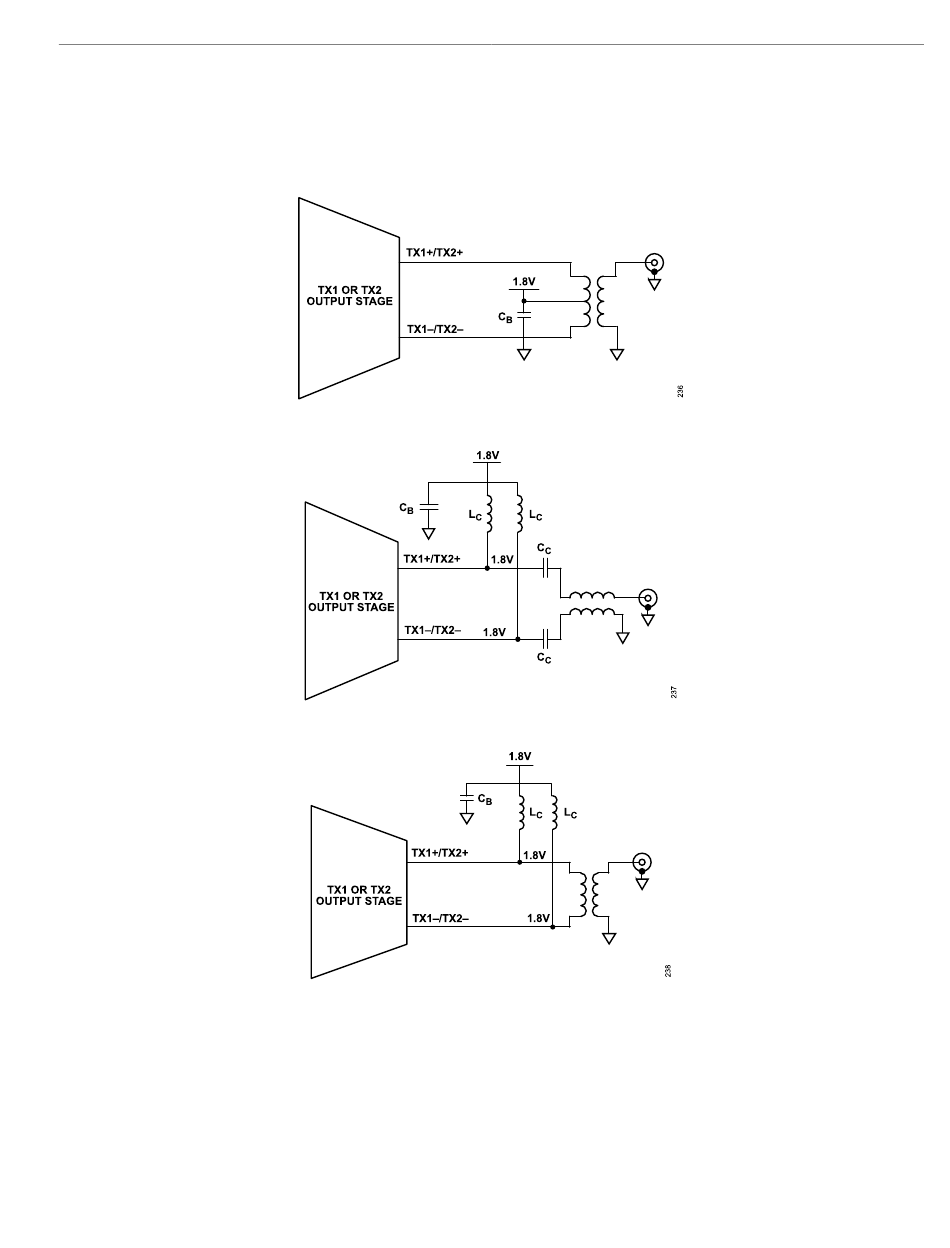

Figure 230. ADRV9001 RF Transmitter Interface Configuration A
Figure 231. ADRV9001 RF Transmitter Interface Configuration B
Figure 232. ADRV9001 RF Transmitter Interface Configuration C
