Evaluating spi, 1.5 o ron, +-15 v/+-5 v/+12 v, high density octal spst switch

Advertisement

Quick Links

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the

FEATURES

SPI with error detection
Includes CRC, invalid read and write address, and SCLK
count error detection
Analog supply voltages
Dual-supply: ±4.5 V to ±16.5 V
Single-supply: 5 V to 20 V
PC control in conjunction with the evaluation software
EVAL-SDP-CB1Z
(SDP-B) system demonstration platform

PACKAGE CONTENTS

EV-ADGS1414DSDZ

DOCUMENTS NEEDED

ADGS1414D
data sheet

EQUIPMENT NEEDED

EVAL-SDP-CB1Z
(SDP-B) controller board
DC voltage source
±16.5 V (dual supply)
20 V (single supply)
Optional 3.3 V digital logic supply
Analog signal source
Method to measure voltage, such as a digital multimeter (DMM)

SOFTWARE NEEDED

ACE
software with EV-ADGS1414DSDZ plugin
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADGS1414D
SPI, 1.5 Ω R
High Density Octal SPST Switch

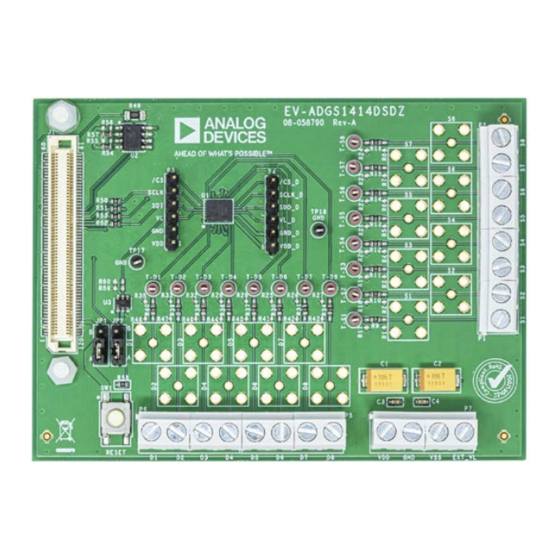

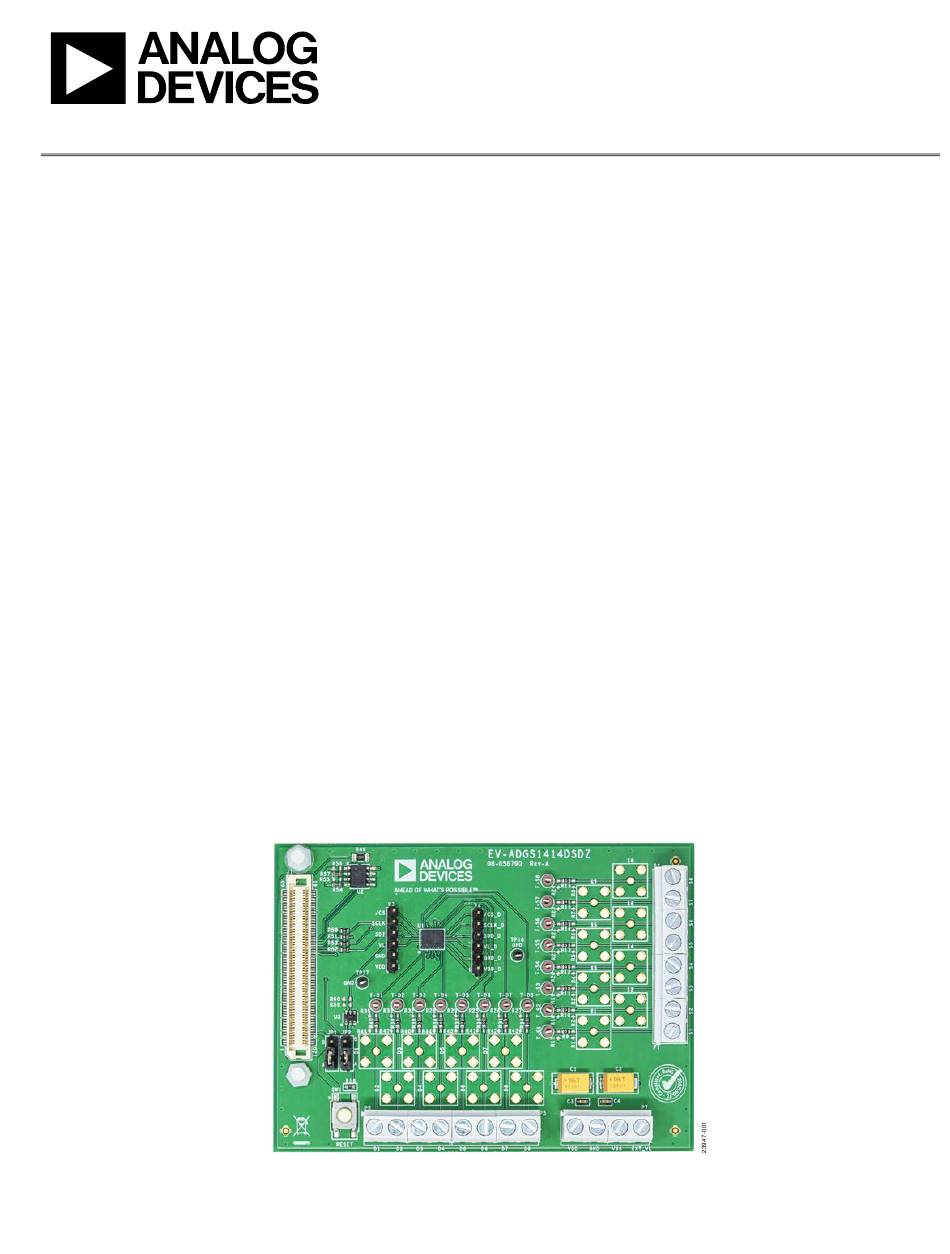

EVALUATION BOARD PHOTOGRAPH

Figure 1.
Rev. 0 | Page 1 of 13
EV-ADGS1414DSDZ
, ±15 V/±5 V/+12 V,
ON

GENERAL DESCRIPTION

The EV-ADGS1414DSDZ is the evaluation board for the
ADGS1414D. The
ADGS1414D
controlled by a serial peripheral interface (SPI). The SPI has robust
error detection features, including cyclic redundancy check
(CRC) error detection, invalid read and write address detection,
and SCLK count error detection. The
burst mode, which decreases the time between SPI commands.
Figure 1 shows the EV-ADGS1414DSDZ in a typical evaluation
setup. The EV-ADGS1414DSDZ is controlled by the system
demonstration platform (SDP)
connects to a PC via a USB port. The
of the evaluation board, and wire screw terminals are provided
to connect to each of the source and drain pins. Three screw
terminals power the device, and a fourth terminal provides users
with a defined digital logic supply voltage, if required. Alternatively,
the digital logic supply voltage can be supplied from the SDP-B.
The
EVAL-SDP-CB1Z
(SDP-B) controller board is available to
order on the Analog Devices, Inc., website.
For full details on the ADGS1414D, see the
sheet, which must be consulted in conjunction with this user
guide when using this evaluation board.
User Guide
UG-1814
is an iCMOS®, octal SPST switch
ADGS1414D
also supports
EVAL-SDP-CB1Z
(SDP-B), which
ADGS1414D
is on the center
ADGS1414D
data

Advertisement

loading
Need help?

Need help?

Do you have a question about the EV-ADGS1414DSDZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices EV-ADGS1414DSDZ

  • Page 1: Features

    PC control in conjunction with the evaluation software burst mode, which decreases the time between SPI commands. EVAL-SDP-CB1Z (SDP-B) system demonstration platform Figure 1 shows the EV-ADGS1414DSDZ in a typical evaluation PACKAGE CONTENTS setup. The EV-ADGS1414DSDZ is controlled by the system demonstration platform (SDP)
  • Page 2: Table Of Contents

    UG-1814 EV-ADGS1414DSDZ User Guide TABLE OF CONTENTS Features ....................1 Route Through Pins For Daisy Chains ........3 Package Contents ................1 Evaluation Board Software ...............4 Documents Needed ................1 Installing the Software ..............4 Equipment Needed ................1 Initial Set Up ..................4 Software Needed ................
  • Page 3: Evaluation Board Hardware

    ADGS1414D. For dual-supply voltages, evaluation board. Table 1 details the positions of the links to the EV-ADGS1414DSDZ can be powered from ±4.5 V to ±16.5 V. control the evaluation board via the SDP-B...
  • Page 4: Evaluation Board Software

    User Guide EVALUATION BOARD SOFTWARE INSTALLING THE SOFTWARE INITIAL SET UP The EV-ADGS1414DSDZ uses the Analog Devices Analysis, To set up the EV-ADGS1414DSDZ, complete the following steps: Control, Evaluation (ACE) software. is a desktop software Connect the EV-ADGS1414DSDZ to the SDP-B...
  • Page 5: Block Diagram And Description

    ADGS1414D data sheet. Therefore, it is section as they pertain to the EV-ADGS1414DSDZ. Figure 3 simple to correlate the functions on the EV-ADGS1414DSDZ with shows the full screen block diagram (with labels), and Table 3 the descriptions in the data sheet. See the...
  • Page 6: Daisy-Chain Mode

    HW Reset button in the Daisy Chain Mode need for external passive components. view (JP2 must be set to Position B), or press the physical hardware reset button on the EV-ADGS1414DSDZ. Figure 4. Daisy Chain Mode View Rev. 0 | Page 6 of 13...
  • Page 7: Memory Map

    Click Apply Changes to transfer the data All registers are fully accessible from the ADGS1414D Memory to the EV-ADGS1414DSDZ. Map view. To access the ADGS1414D Memory Map view, click All changes made in the ADGS1414D Memory Map view Proceed to Memory Map.
  • Page 8: Evaluation Board Schematics And Artwork

    UG-1814 EV-ADGS1414DSDZ User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 7. EV-ADGS1414DSDZ Schematic 1 Rev. 0 | Page 8 of 13...
  • Page 9 PAR_D3 PORT PAR_D2 PAR_D5 PAR_D4 PAR_D7 PAR_D6 PAR_D9 PAR_D8 PAR_D11 PAR_D10 PAR_D13 PAR_D12 PAR_D14 PAR_D15 PAR_D17* *PAR_D16 PAR_D19* *PAR_D18 PAR_D21* *PAR_D20 PAR_D23* *PAR_D22 USB_VBUS *NC ON SDP-B FX8-120S-SV(21) Figure 8. EV-ADGS1414DSDZ Schematic 2 Rev. 0 | Page 9 of 13...
  • Page 10 UG-1814 EV-ADGS1414DSDZ User Guide 0.1µF – 10µF TP17 TP18 EXT_VL 0.1µF 10µF – M20-9990345 RESET_VL EVQQ2K03W M20-9990345 ADG819BRTZ GPIO Figure 9. EV-ADGS1414DSDZ Schematic 3 Figure 10. EV-ADGS1414DSDZ Silkscreen Rev. 0 | Page 10 of 13...
  • Page 11 EV-ADGS1414DSDZ User Guide UG-1814 Figure 11. EV-ADGS1414DSDZ Top Layer Figure 12. EV-ADGS1414DSDZ Layer 2 Figure 13. EV-ADGS1414DSDZ Layer 3 Rev. 0 | Page 11 of 13...
  • Page 12 UG-1814 EV-ADGS1414DSDZ User Guide Figure 14. EV-ADGS1414DSDZ Bottom Layer Rev. 0 | Page 12 of 13...
  • Page 13: Ordering Information

    By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
