MULTICHIP SYNCHRONIZATION
Read Delay: It helps delay FIFO read time. Once information is fed in the FIFO, this value guarantees the FIFO has samples for all channels
before reading.
Calculate them in the following way:
Transmitter:
Each channel is independent from other channels
sampleDelay = MCS_to_Strobe latency – 1
readDelay = 4
Syncing multiple channels: (for example, TX1 and TX2, or multiple devices)
analog.com

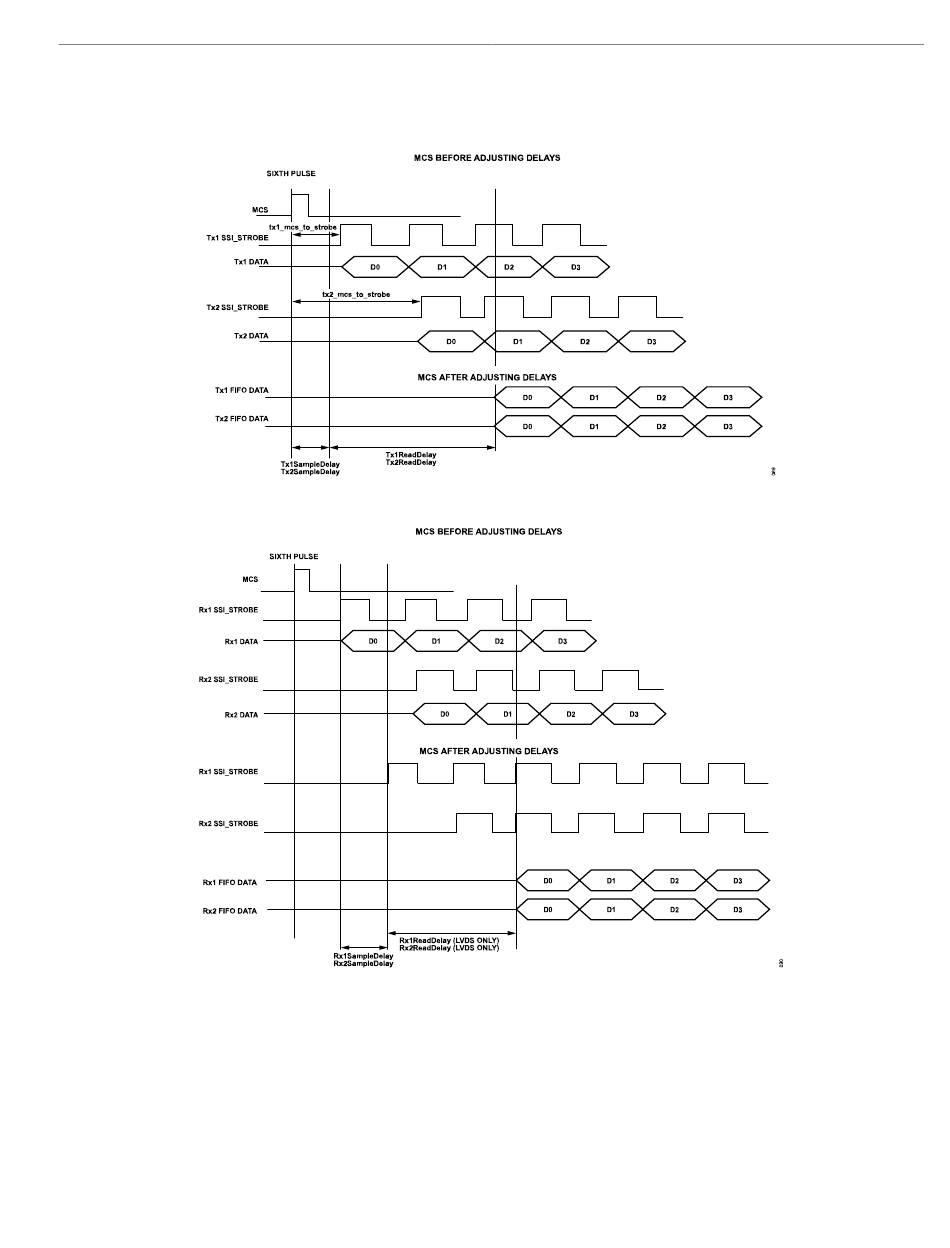

Figure 89. Tx MCS to Strobe Timing Diagram
Figure 90. Rx MCS to Strobe Timing Diagram
ADRV9001
Rev. 0 | 101 of 351
