Reference Manual
ADRV9001 EVALUATION SYSTEM
Transmitter Operation
Select the Transmit tab to open a page, as shown in
and the lower plot shows its time domain waveform. When multiple transmitter outputs are enabled, select the desired data to display in the
"Spectrum" plot using the checkboxes below it.
Once the Transmit tab is open, do the following:
Check the RF transmitter carrier frequency in MHz.
►
Change the transmitter attenuation level in 0.05 dB steps.
►
Continuous transfer selects by default and repeats the chosen transmitter signal on loop. To transmit just once, unselect this.
►
Transmit the content of the selected file. The TES comes with some example files. Assuming the default TES installation process, the
►
example files are located in C:\Program Files (x86)\Analog Devices\ADRV9002 Transceiver Evaluation Software\Example.
Transmit a single-tone, two tones, and zeros. Adjust the digital power of the single- or dual-tone signal as well as the frequency offsets.
►
analog.com

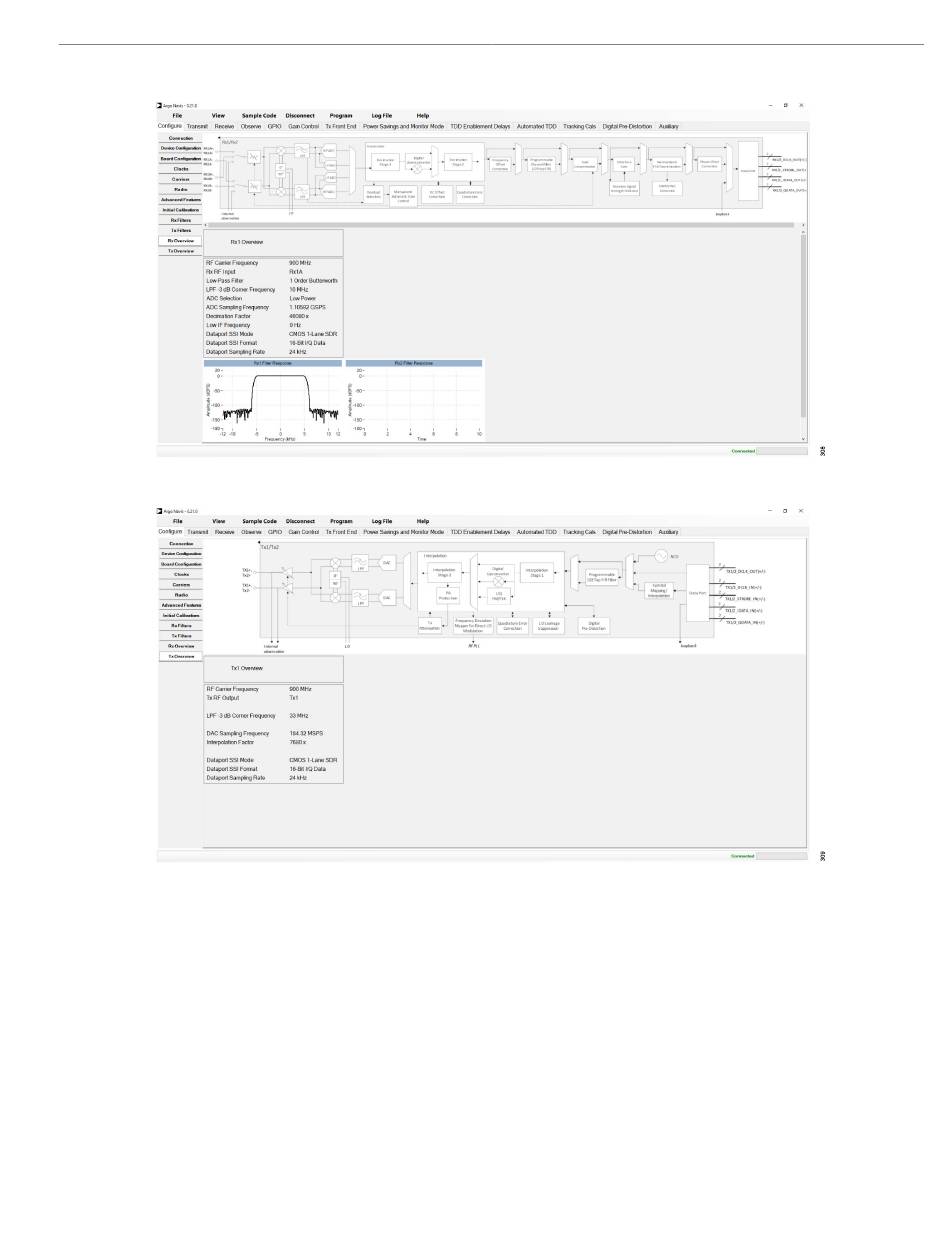

Figure 305. Rx Overview Tab
Figure 306. Tx Overview Tab
Figure 307. The upper plot displays the fast fourier transform (FFT) of the digital data
ADRV9001
Rev. 0 | 323 of 351
