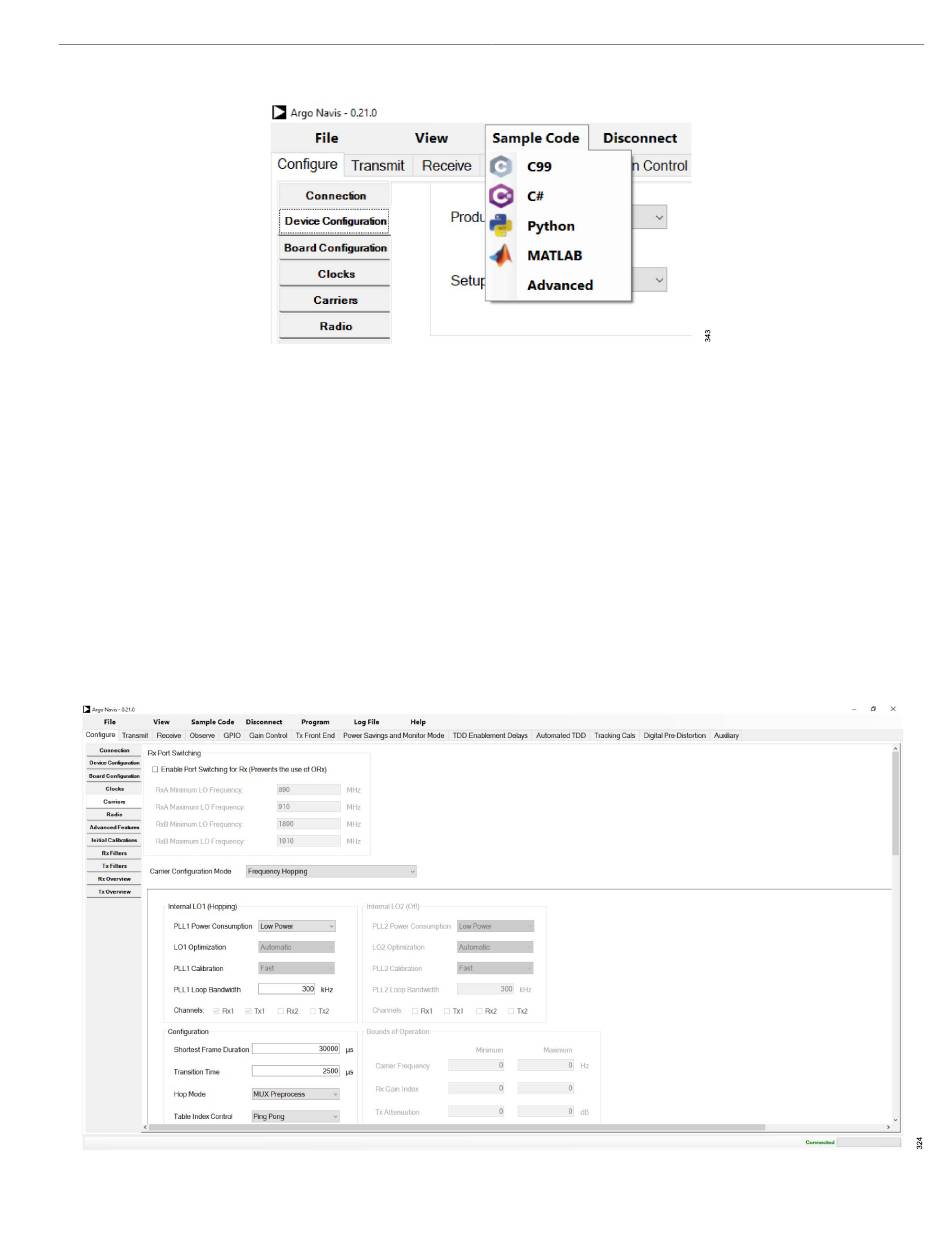

Figure 331. Auto Generated Code Options
Frequency Hopping TES Examples
This section shows three examples to use the TES to achieve frequency hopping for the ADRV9001. For details on the frequency hopping
operation, see the Frequency Hopping section.
Example 1: Manual Frequency Hopping
In this mode, there is no need to specify the timing. In most cases, this is a mode to understand how frequency hopping operates in the
ADRV9001. This example uses the DMR profile. Other profiles are largely the same.
This example shows the frequency hopping for the transmitter only, receiver only, and transceiver.
1. Connect.
2. Go to Carriers tab on the left pane.
3. Select "Frequency Hopping" under "Carrier Configuration Mode".
The first three steps are the same for "Automated TDD Frequency Hopping" as well.
Figure 332. Manual Frequency Hopping Example
