Receiver Only
The Receiver Only steps are the same as
on the Receive tab.
Transceiver
The transceiver steps are also very similar, except that click Play on both the Transmit and Receive tabs before operating frequency hopping.
Note: Upon reset, all frequencies entries must assign back to "Unassigned".
Example 2: GPIO-Controlled Frequency Hopping
Following the setup of Example 1 through to step 8, implement GPIO controls with the following instructions:
1. Enable separate gain and attenuation tables that correspond with the GPIO codes to call for individual hops. Do this by loading tables into
the "Gain Table" and "Attenuation Table" in the Frequency Hopping tab.
2. When the tables are loaded, enable an upload sequence in the "Control Hopping by GPIO" section, shown in
contains a row of integers from 0 to 7 in the required sequence. The integer 0 corresponds to the gain and attenuation value used in the
table shown in Figure 339.
analog.com
Transmitter Only . The only difference is that instead of clicking Play on the Transmit tab, click Play

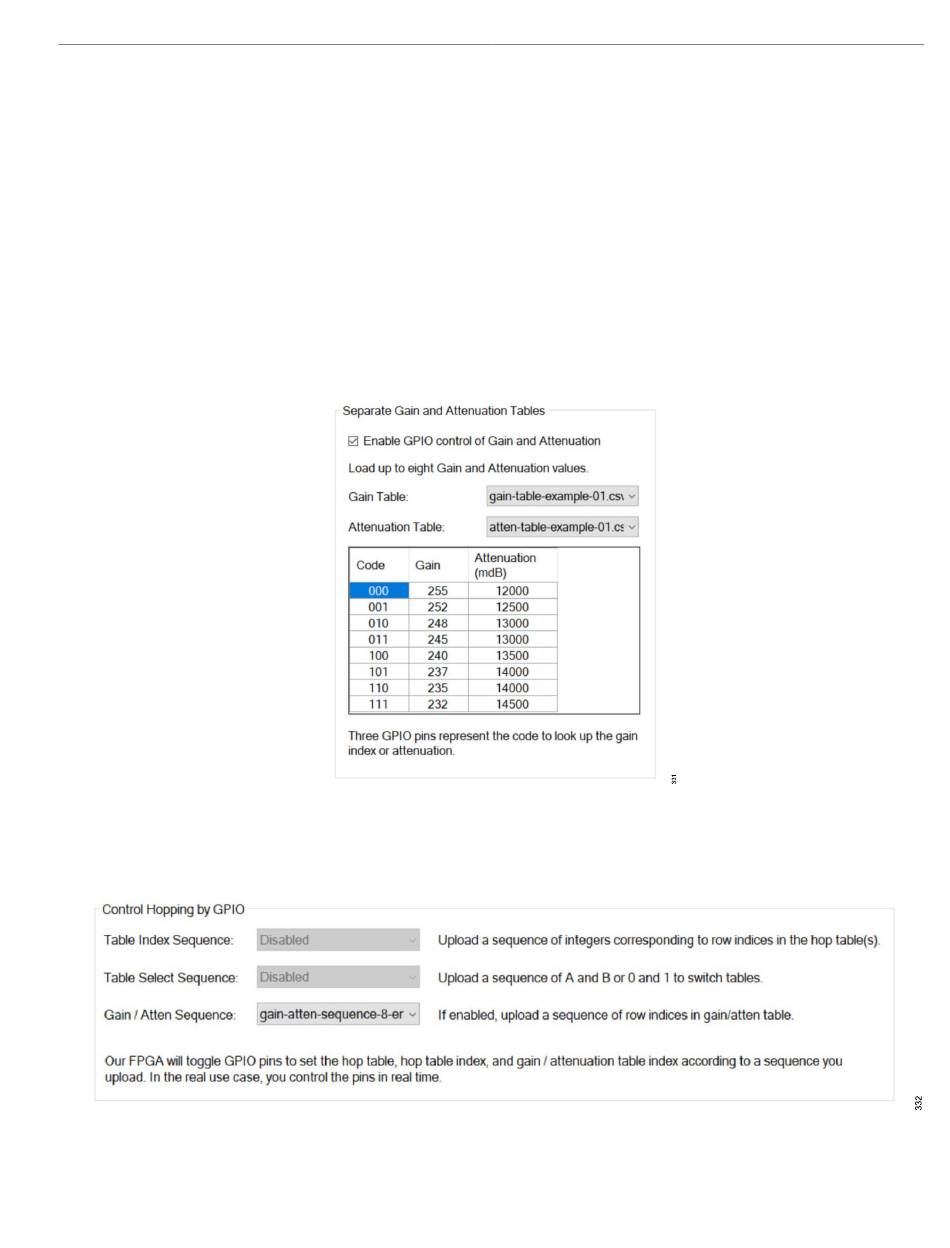

Figure 339. Separate Gain and Attenuation Tables
Figure 340. Control Hopping by GPIO
ADRV9001
Figure 340. This CSV file
