Evaluating the
FEATURES
Self contained board, including
synthesizer with integrated VCO, differential 122.88 MHz
temperature controlled crystal oscillator (TCXO), loop
filter (20 kHz), USB interface, and voltage regulators
Windows®-based software allows control of synthesizer
functions from a PC
Externally powered by 6 V
EVALUATION KIT CONTENTS
EV-ADF4355-2SD1Z
USB cable
EQUIPMENT NEEDED
Windows-based PC with USB port for evaluation software
System demonstration platform, serial only (SDP-S)
EVAL-SDP-CS1Z
controller board
Power supply (6 V)
Spectrum analyzer
50 Ω terminators
ONLINE RESOURCES
Documents Needed
ADF4355-2
data sheet
EV-ADF4355-2SD1Z
user guide
PLL Software Installation Guide
Required Software
Analog Devices, Inc.,
ADF4355-2
or higher (available for download at
www.analog.com/ADF4355-2)
ADF4355-2
Fractional-N/Integer-N PLL Frequency Synthesizer
ADF4355-2
frequency
software, Version 0.46.1

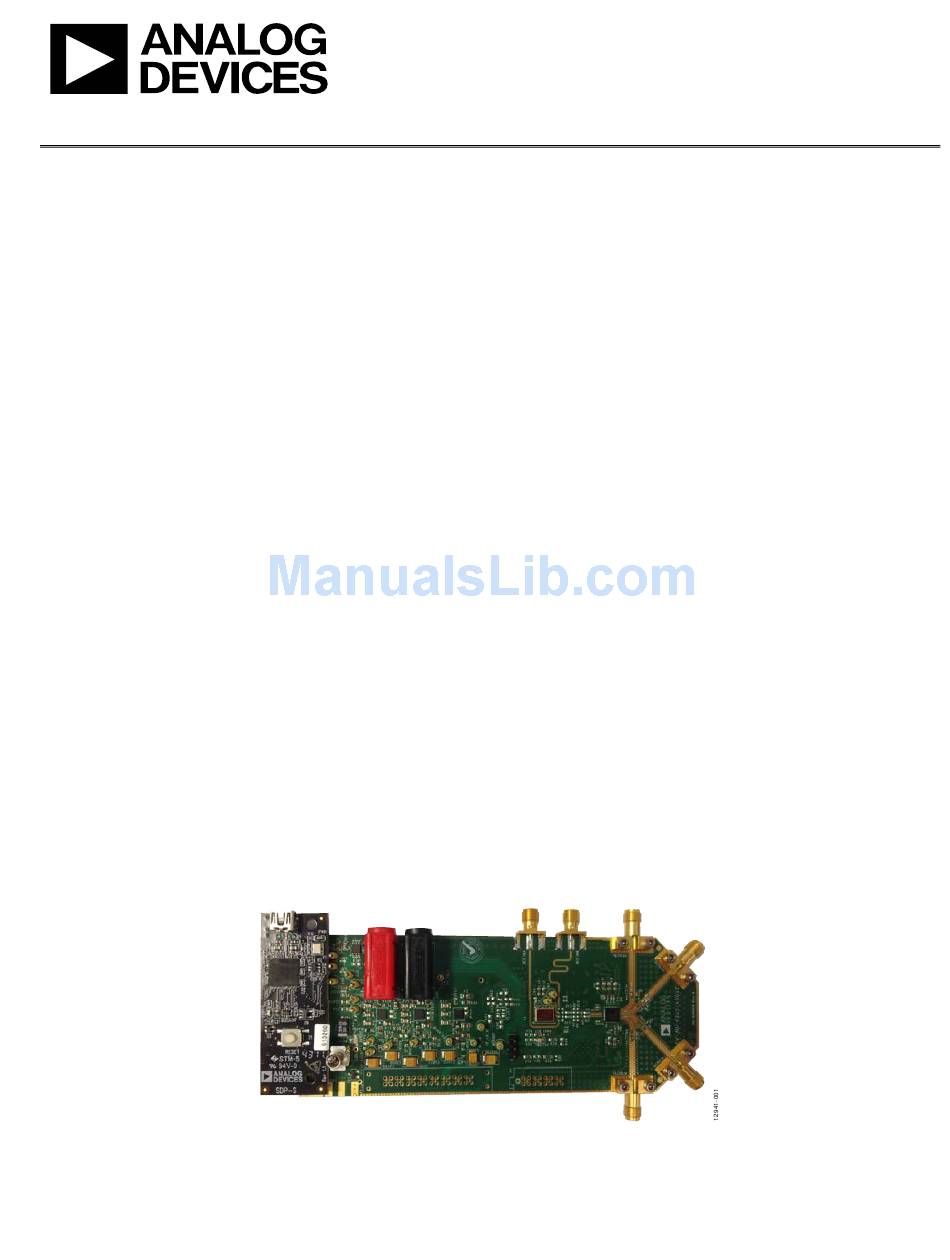

EVALUATION BOARD PHOTOGRAPH
Figure 1.
EV-ADF4355-2SD1Z User Guide
GENERAL DESCRIPTION
The
EV-ADF4355-2SD1Z
ADF4355-2
frequency synthesizer with integrated VCO for
phase-locked loops (PLLs). A photograph of the evaluation
board is shown in Figure 1. The evaluation board contains the
ADF4355-2
frequency synthesizer with integrated VCO, a
differential 122.88 MHz reference (TCXO), a loop filter, a USB
interface, power supply connectors, and subminiature Version
A (SMA) connectors. A USB cable is included to connect the
board to a PC USB port.
For easy programming of the synthesizer, download the
Windows-based software from www.analog.com/ADF4355-2.
This board requires an
supplied with the kit). The
of the
EV-ADF4355-2SD1Z
EV-ADF4355-2SD1Z
Rev. 0 | Page 1 of 18
evaluates the performance of the
SDP-S
(shown in Figure 1, but not
SDP-S
allows software programming
device.
UG-804
