ExtremeSwitching X620-16p Switch Ports and Slots

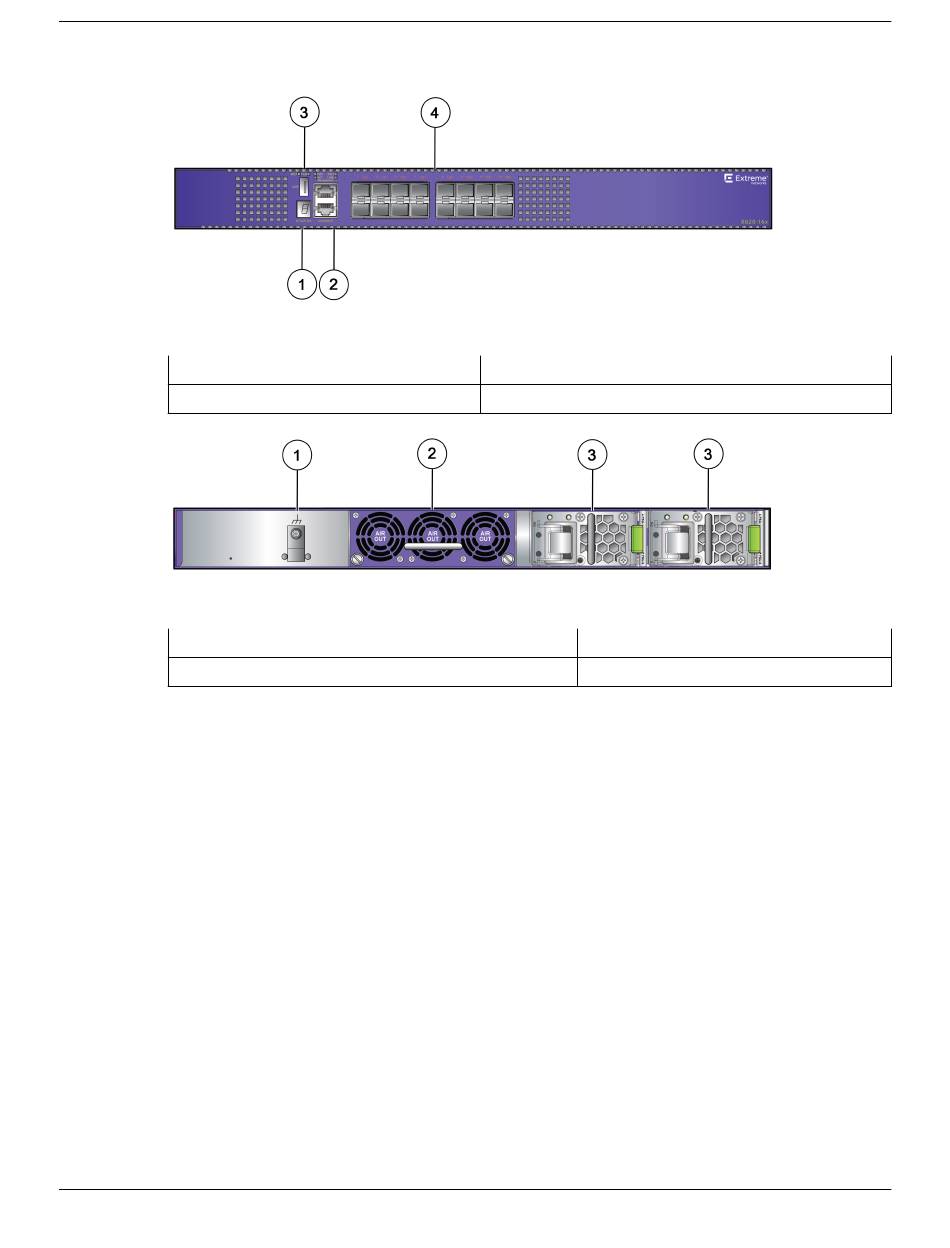

Figure 94: ExtremeSwitching X620-16x Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
Figure 95: ExtremeSwitching X620-16x Rear Panel
1 = Grounding lug
2 = Fan module
ExtremeSwitching X620-16p Switch Ports and Slots
The ExtremeSwitching X620-16p switch ports and slots include:
•
Eight front panel PoE++ ports of 100Mb/1 Gb/2.5Gb/5Gb/10GBASE-T (with EEE at 10 Gb).
•
Four front panel PoE+ ports of 100Mb/1 Gb/2.5Gb/5Gb/10GBASE-T (with EEE at 10 Gb).
•
Four front panel PoE+ ports of 100Mb/1 Gb/10GBASE-T, shared with four front panel SFP+
combination ports of 1 Gb/10GBASE-X.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
Ethernet management port (10/100/1000BASE-T).
•
One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
•
One rear slot for fan module with front-to-back or back-to-front airflow.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.
