Technical Specifications

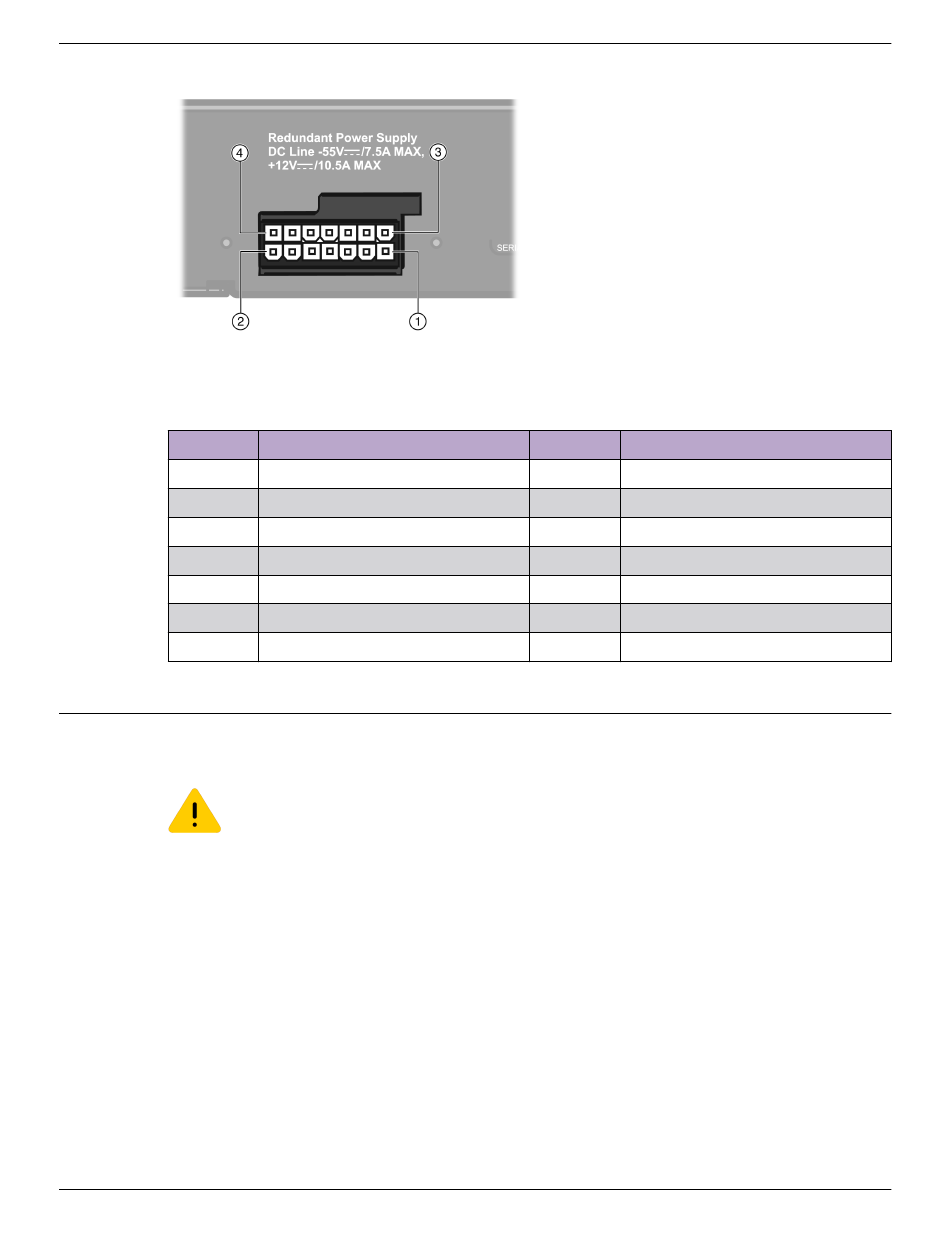

Figure 318: RPS-500p Connector Pin Locations
Table 339: RPS-500p Connector Pins
Pin
1
2
3
4
5
6
7

STK-RPS-150PS and RPS Shelves Technical Specifications

The Extreme Networks STK-RPS-150PS is a 150 watt DC power redundant power supply for use with an
Extreme Networks stackable or standalone fixed switch model that does not support PoE.
Caution
The STK-RPS-150PS does not support pliant fixed switch models. Do not connect the power
cable from an STK-RPS-150PS to a PoE-compliant fixed switch. Otherwise, damage to the
switch may result.
The STK-RPS-150PS can be installed as a standalone unit or with the following rack-mounted shelves:
•
STK-RPS-150CH2, a two-slot shelf
•
STK-RPS-150CH8, an eight-slot shelf
Function
- 55 V return
- 55 VDC
12 VDC output
12 VDC output
12 VDC output
12 VDC output
Ground
STK-RPS-150PS and RPS Shelves Technical
Pin Function
8 Ground
9 No connection
10 RPS present
11 Status 1 Status
12 Status 2
13 Power good
14 Ground
ExtremeSwitching Hardware Installation Guide 469
Specifications
