Attaching the Switch to a Rack or Cabinet
Take care to load the rack so that it is not top-heavy. Start installing equipment at the bottom and work
up.
Note
The X440-G2 and X620 switches can be front-mounted or mid-mounted to a two-post rack
only. They cannot be attached to a four-post rack or cabinet.
1. On one side of the switch, set a mounting bracket against the switch housing.
Set the flange even with the front panel of the switch – or, if you are mid-mounting the switch in a
two-post rack, set the flange toward the back of the switch.
The following figures illustrate how to attach the brackets for two common mounting options.
Figure 169
Figure 170

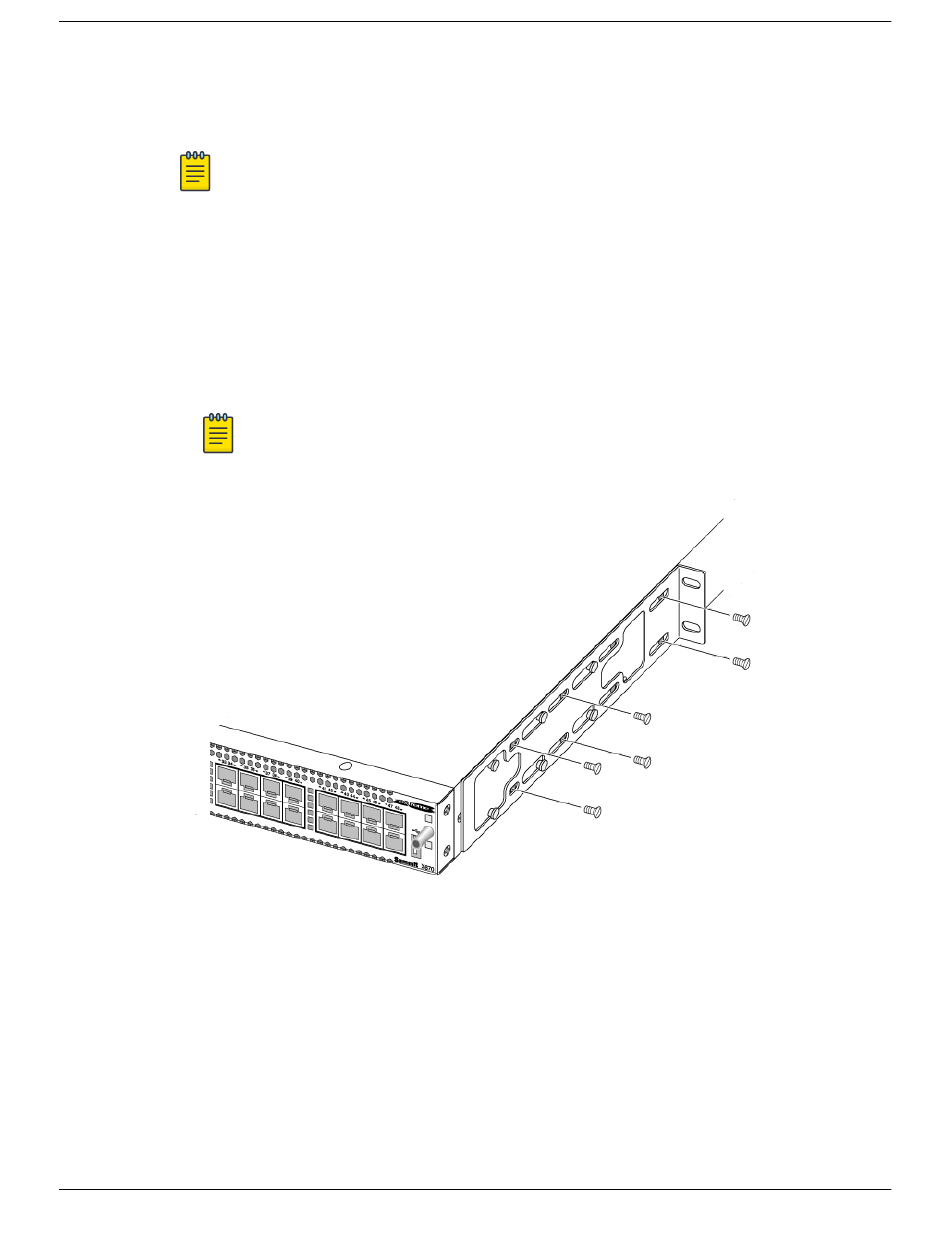

Figure 169: Mid-Mount: Attaching a Long Mounting Bracket
224 ExtremeSwitching Hardware Installation Guide
shows a mid-mount configuration using a long mounting bracket.
shows a front-mount configuration using a short mounting bracket.
Note
For some switch models, only short mounting brackets are provided.
Installing Your Extreme Networks Switch
