ExtremeSwitching Switches
3
MGT FAN P1 P2 S S2
1
CLK ACT LINK
CONSOLE
STACK NO.
1 2

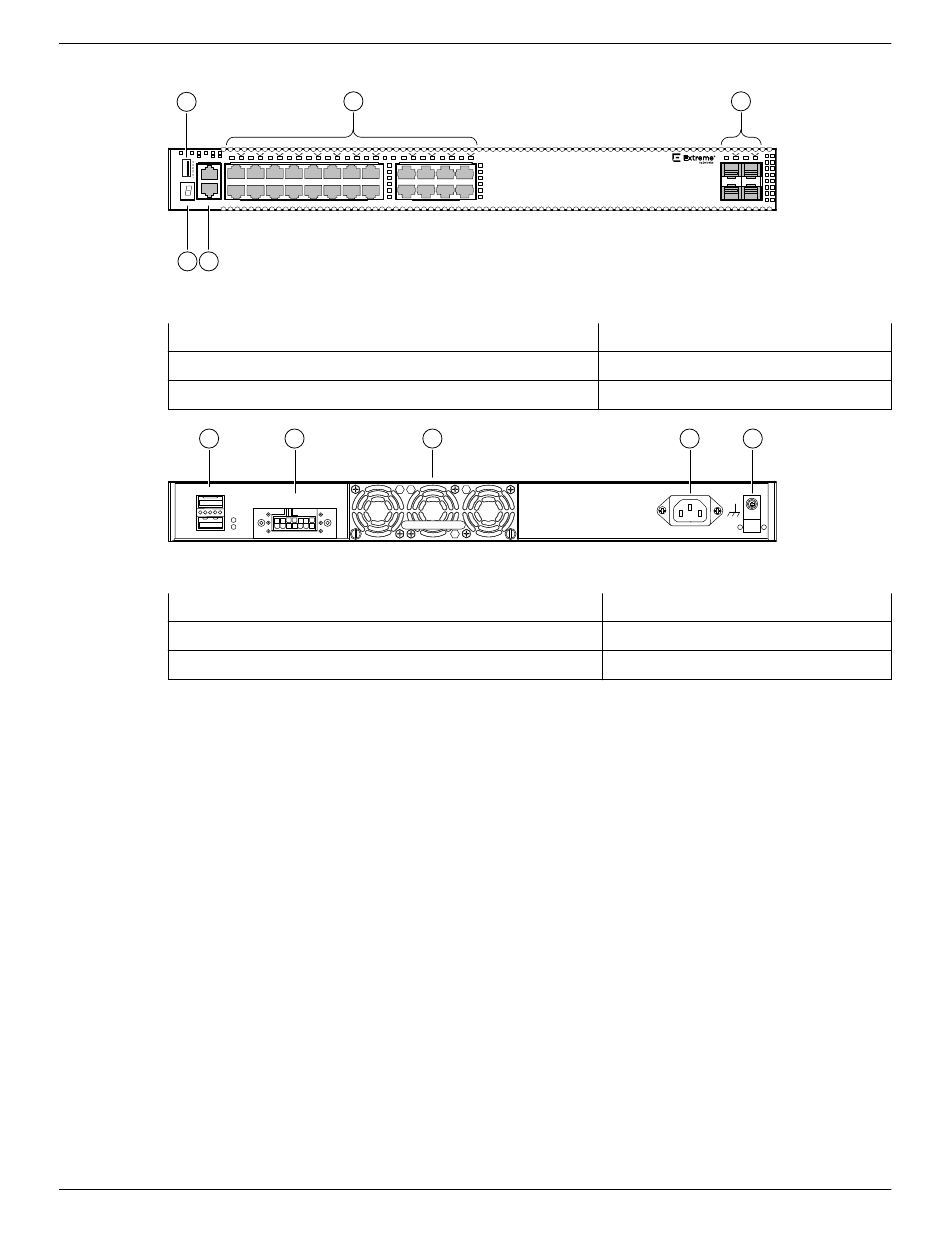

Figure 38: X450-G2-24t-GE4 Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
3 = USB port
1
SummitStack-V84
1
2
Figure 39: X450-G2-24t-GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
2 = Redundant power supply (RPS) connector
3 = Front-to-back fan module slot

ExtremeSwitching X450-G2-24t-10GE4 Switch Ports and Slots

X450-G2-24t-10GE4 switch ports and slots include:
•
24 front panel ports of 10/100/1000BASE-T (ports 1–24).
•
Four front panel ports of 10GBASE-X SFP+ (ports 25–28, with ports 27 and 28 configurable to be
stacking ports). The SFP+ ports are dual speed (1 Gb/10 Gb).
•
Front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One fixed power supply.
•
One rear redundant power supply connector.
•
One rear slot for fan module with front-to-back airflow.
•
Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
4
10 11 12 13 14 15 16 17 18
2 3 4 5 6 7 8 9
2
Redundant Power Input
! See Manual
ExtremeSwitching X450-G2-24t-10GE4 Switch Ports
19 20 21 22 23 24
3
ExtremeSwitching Hardware Installation Guide
5
25 27 28
26
Summit
™ X450-G2-24t-GE4
GbE S FP
4 = 10/100/1000BASE-T ports
5 = SFP 1GBASE-X ports
4 5
4 = AC power input connector
5 = Grounding screw
and Slots
