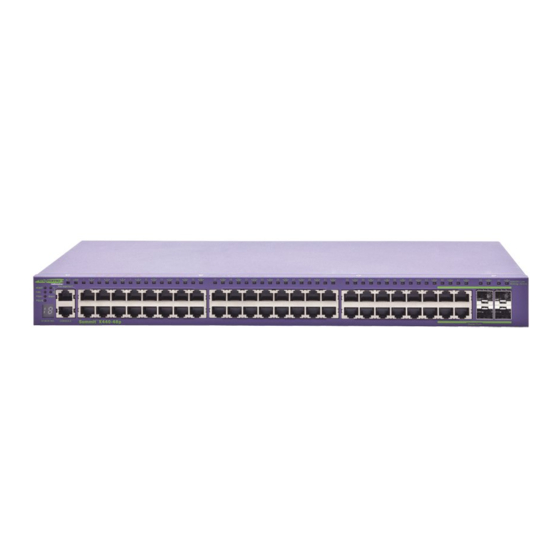

Summit X440 Series Switches
Installation Note
16519 & 16519T, 16520 & 16520T
Pre-installation Requirements
Before you install the Summit X440 series switch, read the information in
page
2.
The following items are provide with the Summit X440 series switch:
Mounting brackets
●
Eight M3 screws to secure the mounting brackets to the switch
●
To install the switch in a rack, you need the following additional tools and equipment:
Four rack mounting screws to match your equipment rack
●
Screwdriver to fit the rack mounting screws
●
AC power cord that is suitable for the current rating of this product (See
●
Supply Cords" on page
Required Tools
The following items are provided with the Summit X440 series switch:
Two rack mounting brackets adaptable for either a front-mount or mid-mount installation
●
Twelve screws for attaching the brackets to the switch enclosure
●
For DC models, spade terminal and M4 screw with captive washer for grounding the switch
●
You need the following additional tools and materials to install the switch in a rack:
#1 Phillips screwdriver
●
Four rack mounting screws to match your equipment rack
●
Screwdriver to fit the rack mounting screws
●
#14 AWG stranded copper cable for grounding the switch (DC powered models)
●
ESD-preventive wrist strap for installing optional ports at the back of the switch
●
Part Number: 120855-00 Rev. 01
5.)X440
"Safety Information" on
"Selecting AC Power
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Extreme Networks X440 Series
Summary of Contents for Extreme Networks X440 Series
- Page 1 Summit X440 Series Switches Installation Note 16519 & 16519T, 16520 & 16520T Pre-installation Requirements Before you install the Summit X440 series switch, read the information in “Safety Information” on page The following items are provide with the Summit X440 series switch: Mounting brackets ●...
-
Page 2: Installing The Switch
6 Connect the other end of the power cable to an AC power socket. Safety Information WARNING! Read the safety information in this section before you install Extreme Networks products. Failure to follow this safety information can lead to personal injury or damage to the equipment. Summit X440 Series Switches Installation Note... - Page 3 Safety Information Only trained service personnel should perform service to Extreme Networks switches and components. Trained service personnel have read all related installation manuals, have the technical training and experience necessary to be aware of the hazards to which they are exposed in performing a task, and are aware of measures to minimize the danger to themselves or other persons.
-
Page 4: Considerations Before Installing
Failure to follow these instructions may damage the equipment or violate required safety and EMC regulations. The chassis cover should be removed only by Extreme Networks personnel. This system contains no ● customer-serviceable components. Repairs to the system must be performed by an Extreme Networks factory service technician. -
Page 5: General Safety Precautions
Selecting AC Power Supply Cords Extreme Networks does not include AC power input cords in the product box. To purchase a power cord for your product and for your specific country, contact your local Extreme Networks Channel Account Manager or Sales Manager, or purchase a cord from your local supplier. - Page 6 ● momentary increases or decreases in electrical power. Summit X440 series switches do not have switches for turning the unit on and off. Remove the wall ● plug from the electrical outlet to disconnect the power from a Summit X440 series switch. Make sure that this connection is near the equipment and is easily accessible for quick disconnect.
- Page 7 Switch to a -48V power source To connect the DC power cables to the Summit X440 DC powered switches: 1 Verify that the DC circuit is de-energized. 2 Connect the DC power input cables as follows: Summit X440 Series Switches Installation Note...
-
Page 8: Cable Routing For Lan Systems
3 Energize the DC circuit. Cable Routing for LAN Systems The Summit X440 series switches meet the requirements for LAN system equipment. LAN systems are designed only for intra-building installations; that is, cable runs between devices must be in the same building as the connected units. - Page 9 Invisible laser radiation can occur when the connectors are open. Avoid direct eye exposure to the ● beam when optical connections are unplugged. Never alter, modify, or change an optical device in any way other than suggested in this ● document. Summit X440 Series Switches Installation Note...
- Page 10 Unified Access Architecture, Unified Access RF Manager, UniStack, XNV, the Extreme Networks logo, the Alpine logo, the BlackDiamond logo, the Extreme Turbodrive logo, the Summit logos, and the Powered by ExtremeXOS logo are trademarks or registered trademarks of Extreme Networks, Inc. or its subsidiaries in the United States and/or other countries.
