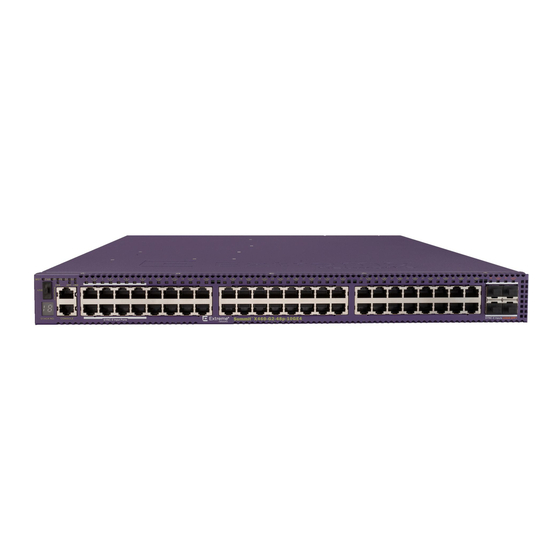

Extreme Networks Summit X460-G2 Series Installation Note

Hide thumbs Also See for Summit X460-G2 Series:

Advertisement

Table of Contents

Summit X460-G2 Series Switches
Installation Note
Pre-installation Requirements
Before you install the Summit X460-G2 series switch, read the information in
page
2.
The following items are provide with the Summit X670 series switch:
Mounting brackets
●
Eight M3 screws to secure the mounting brackets to the switch
●
To install the switch in a rack, you need the following additional tools and equipment:
Four rack mounting screws to match your equipment rack
●
Screwdriver to fit the rack mounting screws
●
AC power cord that is suitable for the current rating of this product (See
●
Supply Cords" on page
Required Tools
The following items are provided with the Summit X460-G2 series switch:
Two rack mounting brackets adaptable for either a front-mount or mid-mount installation
●
Twelve screws for attaching the brackets to the switch enclosure
●
For DC models, spade terminal and M4 screw with captive washer for grounding the switch
●
You need the following additional tools and materials to install the switch in a rack:
#1 Phillips screwdriver
●
Four rack mounting screws to match your equipment rack
●
Screwdriver to fit the rack mounting screws
●
#14 AWG stranded copper cable for grounding the switch (DC powered models)
●
ESD-preventive wrist strap for installing optional ports at the back of the switch
●
Part Number: 120889-00 Rev. 01
4.
"Safety Information" on
"Selecting AC Power
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Summit X460-G2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extreme Networks Summit X460-G2 Series

Summary of Contents for Extreme Networks Summit X460-G2 Series

  • Page 1 Summit X460-G2 Series Switches Installation Note Pre-installation Requirements Before you install the Summit X460-G2 series switch, read the information in “Safety Information” on page The following items are provide with the Summit X670 series switch: Mounting brackets ● Eight M3 screws to secure the mounting brackets to the switch ●...

  • Page 2: Installing The Switch

    6 Connect the other end of the power cable to an AC power socket. Safety Information WARNING! Read the safety information in this section before you install Extreme Networks products. Failure to follow this safety information can lead to personal injury or damage to the equipment. Summit X460-G2 Series Switches Installation Note...

  • Page 3: Considerations Before Installing

    Failure to follow these instructions may damage the equipment or violate required safety and EMC regulations. The chassis cover should be removed only by Extreme Networks personnel. This system contains no ● customer-serviceable components. Repairs to the system must be performed by an Extreme Networks factory service technician.

  • Page 4: General Safety Precautions

    Selecting AC Power Supply Cords Extreme Networks does not include AC power input cords in the product box. To purchase a power cord for your product and for your specific country, contact your local Extreme Networks Channel Account Manager or Sales Manager, or purchase a cord from your local supplier.

  • Page 5: Cable Routing For Lan Systems

    ● momentary increases or decreases in electrical power. Summit X460-G2 series switches do not have switches for turning the unit on and off. Remove the ● wall plug from the electrical outlet to disconnect the power from a Summit X460-G2 series switch.

  • Page 6: Battery Replacement And Disposal

    Batteries included with Extreme products are encapsulated and must be replaced only by qualified Extreme Service personnel. Contact your Extreme Networks Service personnel for product replacement. Do not attempt to replace the battery. If these instructions are disregarded and replacement of these batteries is attempted, the following guidelines must be followed to avoid danger of explosion: Replace with the same or equivalent battery type as recommended by the battery manufacturer.

  • Page 7: Fiber Optic Ports And Optical Safety

    Fiber Optic Ports and Optical Safety Fiber Optic Ports and Optical Safety The following safety warnings apply to all optical devices used in Extreme Networks equipment that are removable or directly installed in an I/O module or chassis system. Such devices include but are not limited to gigabit interface converters (GBICs), small form factor pluggable (SFP) modules (or mini-GBICs), QSFP+ modules, XENPAK transceivers, and XFP laser optic modules.

  • Page 8: Conformity Statements For Emc Class A

    Un disjoncteurListed dédié évalué à 20A doit être utilisée pour chaque connexion d'alimentation . WARNING! Extreme Networks power supplies do not have switches for turning the unit on and off. Disconnect all power cords to remove power from the device. Make sure that these connections are easily accessible.
  • Page 9 This is a Class A product based on the standard of the VCCI Council. If this equipment is used in a domestic environment, radio interference may occur, in which case the user may be required to take corrective actions. Taiwan Warnings 警告:此为A级产品，在生活环境中，该产品可能造成 线电干扰。在这种情下，可能需要用户对干扰采取切 实可行的措施。 Korea EMC Statement Summit X460-G2 Series Switches Installation Note...
  • Page 10 Conformity Statements for EMC Class A Summit X460-G2 Series Switches Installation Note...
  • Page 11 One slot for fan module with front-to-back or back-to-front airflow. ● Ethernet management port 1 x 10/100/1000BASE-T. ● Serial console port implemented as an RJ-45 connector used to connect a terminal and perform local ● management. Summit X460-G2 Series Switches Installation Note...
  • Page 12 One slot for fan module with front-to-back or back-to-front airflow. ● Ethernet management port 1 x 10/100/1000BASE-T. ● Serial console port implemented as an RJ-45 connector used to connect a terminal and perform local ● management. Summit X460-G2 Series Switches Installation Note...
  • Page 13 One slot for fan module with front-to-back or back-to-front airflow. ● Ethernet management port 1 x 10/100/1000BASE-T. ● Serial console port implemented as an RJ-45 connector used to connect a terminal and perform local ● management. Summit X460-G2 Series Switches Installation Note...
  • Page 14 One slot for fan module with front-to-back or back-to-front airflow. ● Ethernet management port 1 x 10/100/1000BASE-T. ● Serial console port implemented as an RJ-45 connector used to connect a terminal and perform local ● management. Summit X460-G2 Series Switches Installation Note...
  • Page 15 Summit X460-G2 Series Switches Summit X460-G2 Series Switches The Summit X460-G2 series includes the following switches: Summit X460-G2-24t-GE4 switch ● Summit X460-G2-24t-10GE4 switch ● Summit X460-G2-48t-GE4 switch ● Summit X460-G2-48t-10GE4 switch ● Summit X460-G2-24p-GE4 switch ● Summit X460-G2-24p-10GE4 switch ●...
  • Page 16 Summit X460-G2 Series Switches Table 1: Summit X460-G2 Series Switch Technical Specifications (Continued) Packaged Weight (no PSU or fan module) Summit X460-G2-24t-GE4 switch 18.6 lb (8.42 kg) Summit X460-G2-24t-10GE4 switch Summit X460-G2-48t-GE4 switch 18.7 lb (8.50 kg) Summit X460-G2-48t-10GE4 switch Summit X460-G2-24p-GE4 switch 20.2 lb (9.14 kg)
  • Page 17 Summit X460-G2 Series Switches Table 2: Summit X460-G2 Series Switch Bundles (Continued) 16734 X460‐G2‐24t‐10GE4‐BF‐DC 10944 Summit 300W AC PSU Back to Front air flow  16734T X460‐G2‐24t‐10GE4‐BF‐DC‐TAA 10946 ( Samsung  PSU Model: PSSW301202A ) Summit X460 fan module Back to Front air flow  ( Fan Model: JDD0405612UB3A01 ) 16760 X460‐G2‐24t‐GE4‐BF‐AC 10943 Summit 300W AC PSU Back to Front air flow  16760T X460‐G2‐24t‐GE4‐BF‐AC‐TAA 10946  ( Delta  PSU Model: EDPS‐300AB CA ) Summit X460 fan module Back to Front air flow  ( Fan Model: JDD0405612UB3A01 ) 16761 X460‐G2‐24t‐GE4‐FB‐DC 10933  Summit 300W DC PSU Front to Back air flow ...
  • Page 18 Summit X460-G2 Series Switches Table 2: Summit X460-G2 Series Switch Bundles (Continued) 16725 X460‐G2‐24p‐10GE4‐FB‐1100 10941  Summit 1100W AC PSU Front to Back air flow 16725T X460‐G2‐24p‐10GE4‐FB‐1100‐TAA 10945 ( Samsung PSU Model#: PSSF112101A) or  ( Delta PSU Model# DPS‐1100CB‐ 1 A ) Summit X460 fan module Front to Back air flow  ( Fan Model: AS04012UB565300 ) 16726 X460‐G2‐24p‐10GE4‐BF‐1100 10942 Summit 1100W AC PSU Back to Front air flow  16726T X460‐G2‐24p‐10GE4‐BF‐1100‐TAA 10946 ( Samsung  PSU Model#: PSSF112102A )  Summit X460 fan module Back to Front air flow  ( Fan Model: JDD0405612UB3A01 ) 16742 X460‐G2‐24p‐GE4‐FB‐715 10951  Summit 715W AC PSU Front to Back air flow 16742T X460‐G2‐24p‐GE4‐FB‐715‐Y‐TAA...
  • Page 19 Summit X460-G2 Series Switches Table 2: Summit X460-G2 Series Switch Bundles (Continued) 16750 X460‐G2‐48p‐10GE4‐BF‐715 10952 Summit 715W AC PSU Back to Front air flow  16750T X460‐G2‐48p‐10GE4‐BF‐715‐TAA 10946 ( Samsung  PSU Model#: PSSF711102A )  Summit X460 fan module Back to Front air flow  ( Fan Model: JDD0405612UB3A01 ) 16773 X460‐G2‐48p‐GE4‐FB‐715 10951 Summit 715W AC PSU Front to Back air flow 16773T X460‐G2‐48p‐GE4‐FB‐715‐TAA 10945 (Samsung  PSU Model#: PSSF711101A) Summit X460 fan module Front to Back air flow  ( Fan Model: AS04012UB565300 ) 16774 X460‐G2‐48p‐GE4‐BF‐715 10952 Summit 715W AC PSU Back to Front air flow  16774T X460‐G2‐48p‐GE4‐BF‐715‐TAA...
  • Page 20 Part #: 10933 300W DC PS FB (front to back) Part #: 10944 300W DC PS BF (back to front) Model: PSSW301201A Model: PSSW301202A +24VDC or -48VDC, 5.25 A per PS +24VDC or -48VDC, 5.25 A per PS Summit X460-G2 Series Switches Installation Note...
  • Page 21 Unified Access Architecture, Unified Access RF Manager, UniStack, XNV, the Extreme Networks logo, the Alpine logo, the BlackDiamond logo, the Extreme Turbodrive logo, the Summit logos, and the Powered by ExtremeXOS logo are trademarks or registered trademarks of Extreme Networks, Inc. or its subsidiaries in the United States and/or other countries.
  • Page 22 Summit X460-G2 Series Switches Summit X460-G2 Series Switches Installation Note...
