Installing Expansion Modules
b. Insert and tighten the retaining screws you removed in step
provided.

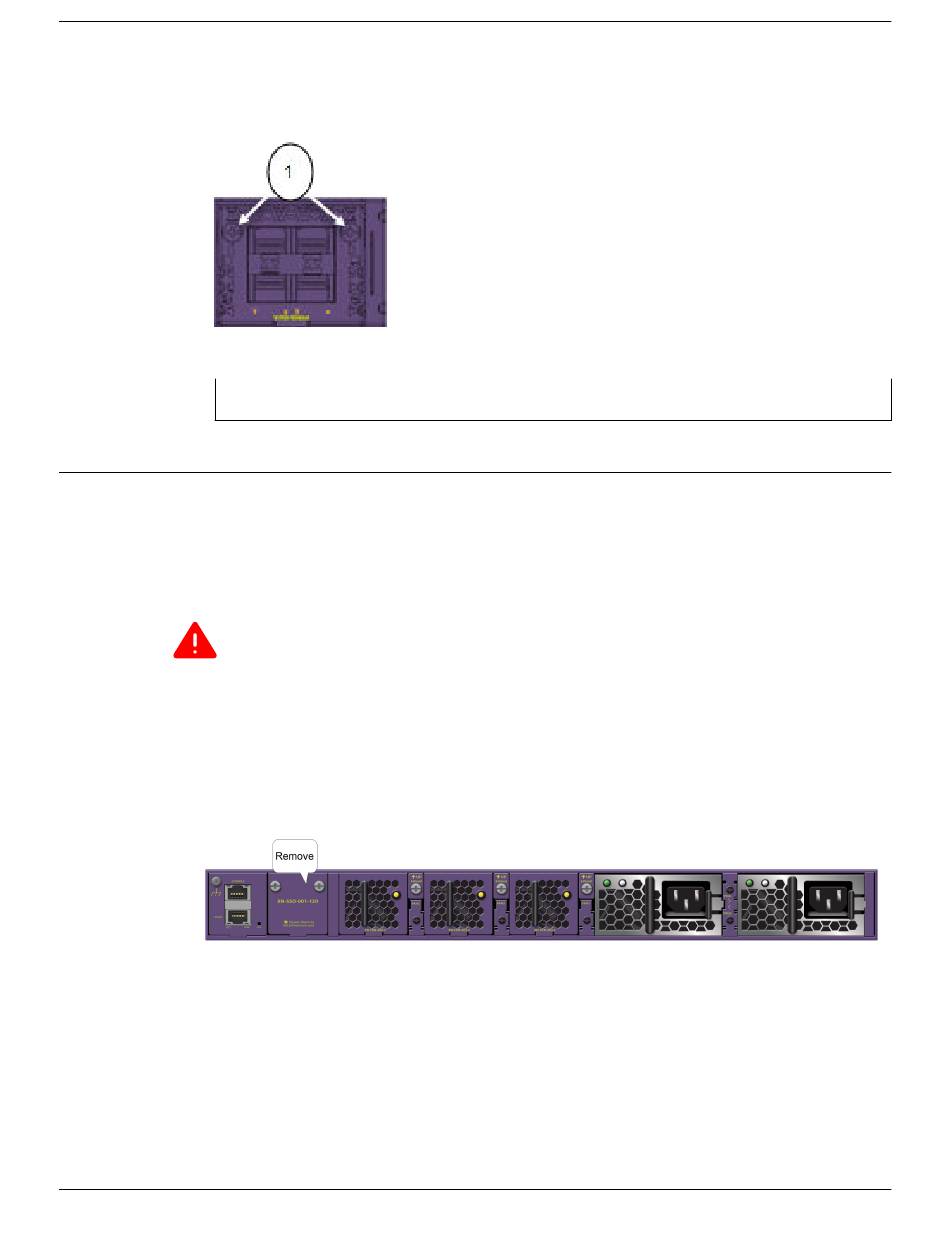

Figure 265: Tighten Screws on the Inserted VIM5 Module
1 = VIM5 module retaining screw locations

Install an SSD Module

This section describes how to install a Solid-state Drive (SSD) module in the rear slot of a switch.
You need the following tools and materials to install an SSD module:
•
ESD-preventive wrist strap
•
#2 Phillips screwdriver
Warning
To prevent damage to the switch or VIM, the switch must be powered OFF when removing or
installing SSD modules.
To install an SSD module, follow these steps:
1. Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point
on the rack.
2. Ensure that the switch is completely powered down.
3. Remove the cover plate from the SSD slot (#2 Phillips screwdriver required).
Figure 266: Switch with SSD Rear Panel
4. Remove the SSD module from its packaging.
3.a on page 324, using the screws
ExtremeSwitching Hardware Installation Guide
Install an SSD Module
325
