V300HT-8P-2X Model
•
One USB port
•
One console/management port
•
Two DC input ports
The V300HT-8P-2X model requires that ExtremeXOS (EXOS) version 30.5 (or later) be installed on the
switch to which it is attached. For more information about configuring EXOS for use with this
equipment, see the
The V300HT-8P-2X model is compatibile with the following power supplies: 40W AC PS FRU (Model
XN-ACPWR-40W).
•
Model XN-ACPWR-320W-HT - a 320W AC power supply high temperature
•
Model 16807 - an IS AC-DC power supply with 240W output and DIN rail compatible
Important
The high temperature power supplies for the V300HT models require field wiring. Power
supplies must be installed in accordance with local electrical codes by a licensed electrician.
Note
Power supplies for this model are sold separately.

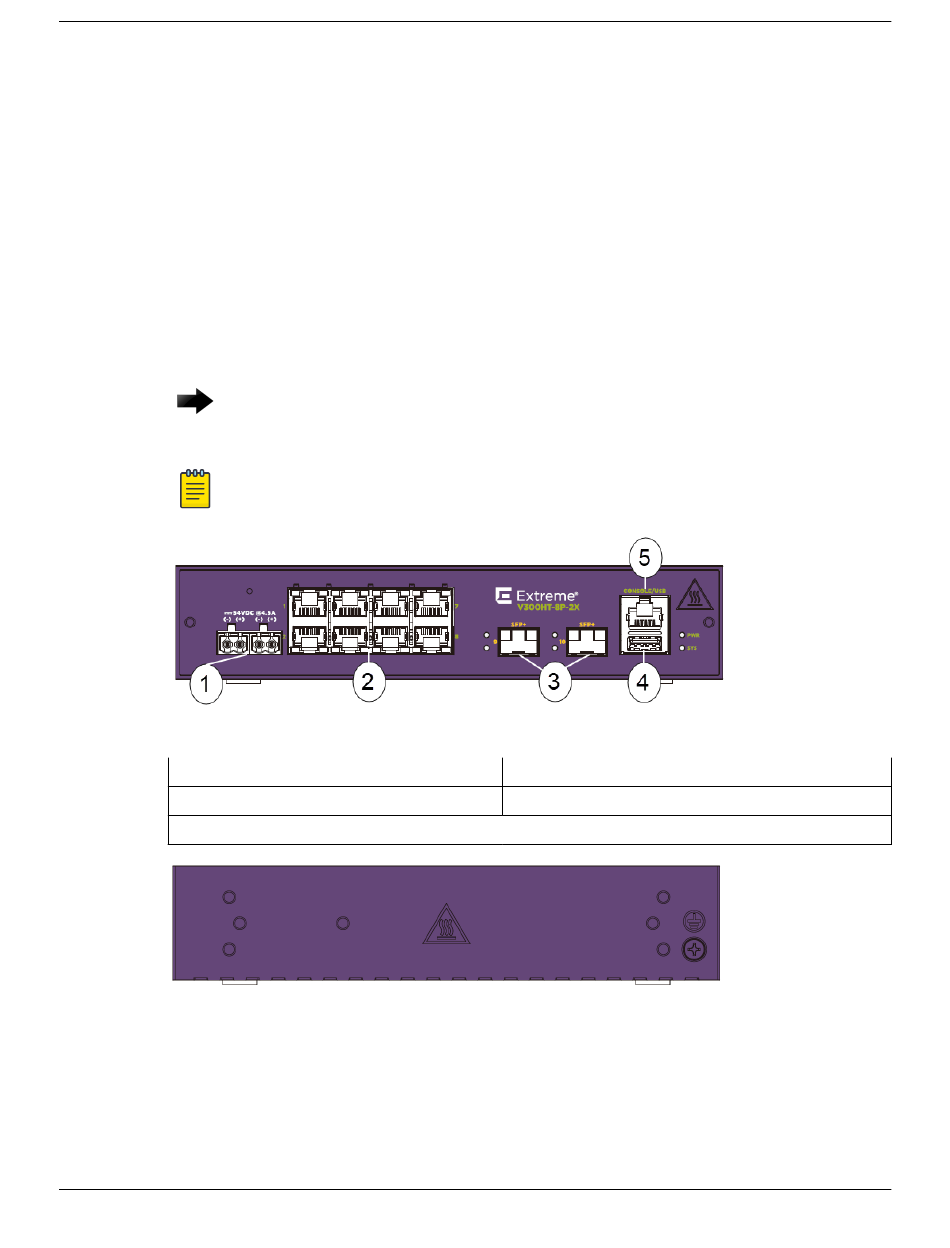

Figure 127: V300HT-8P-2X Front Panel
1 = DC inputs
3 = 10Gb SFP+ ports
5 = Console/Management port
Figure 128: V300 Virtual Port Extender Rear Panel
144 ExtremeSwitching Hardware Installation Guide
ExtremeXOS 30.7 User Guide.
2 = 10/100/1000BASE-T PoE+ ports
4 = USB port
Expansion Modules
