V300Ht-8T-2X Model - Extreme Networks ExtremeSwitching X435 Series Hardware Installation Manual

Expansion Modules

V300HT-8T-2X Model

The Virtual Port Extender V300HT-8T-2X model is a high-temperature model that offers the following
features:
•
Eight 10/100/1000BASE-T half/full duplex ports
•
Two 10Gb SFP+ ports
•
One USB port
•
One console/management port
•
Two DC input ports
The V300HT-8T-2X model requires that ExtremeXOS (EXOS) version 30.6 (or later) be installed on the
switch to which it is attached. For more information about configuring EXOS for use with this
equipment, see the
The V300HT-8T-2X model is compatibile with the following power supplies:
•
Model XN-ACPWR-40W-HT - a 40W AC power supply high temperature
•
Model XN-ACPWR-60W-HT-DIN - a 60W AC power supply high temperature DIN rail compatible
Important
The high temperature power supplies for the V300HT models require field wiring. Power
supplies must be installed in accordance with local electrical codes by a licensed electrician.
Note
Power supplies for this model are sold separately.

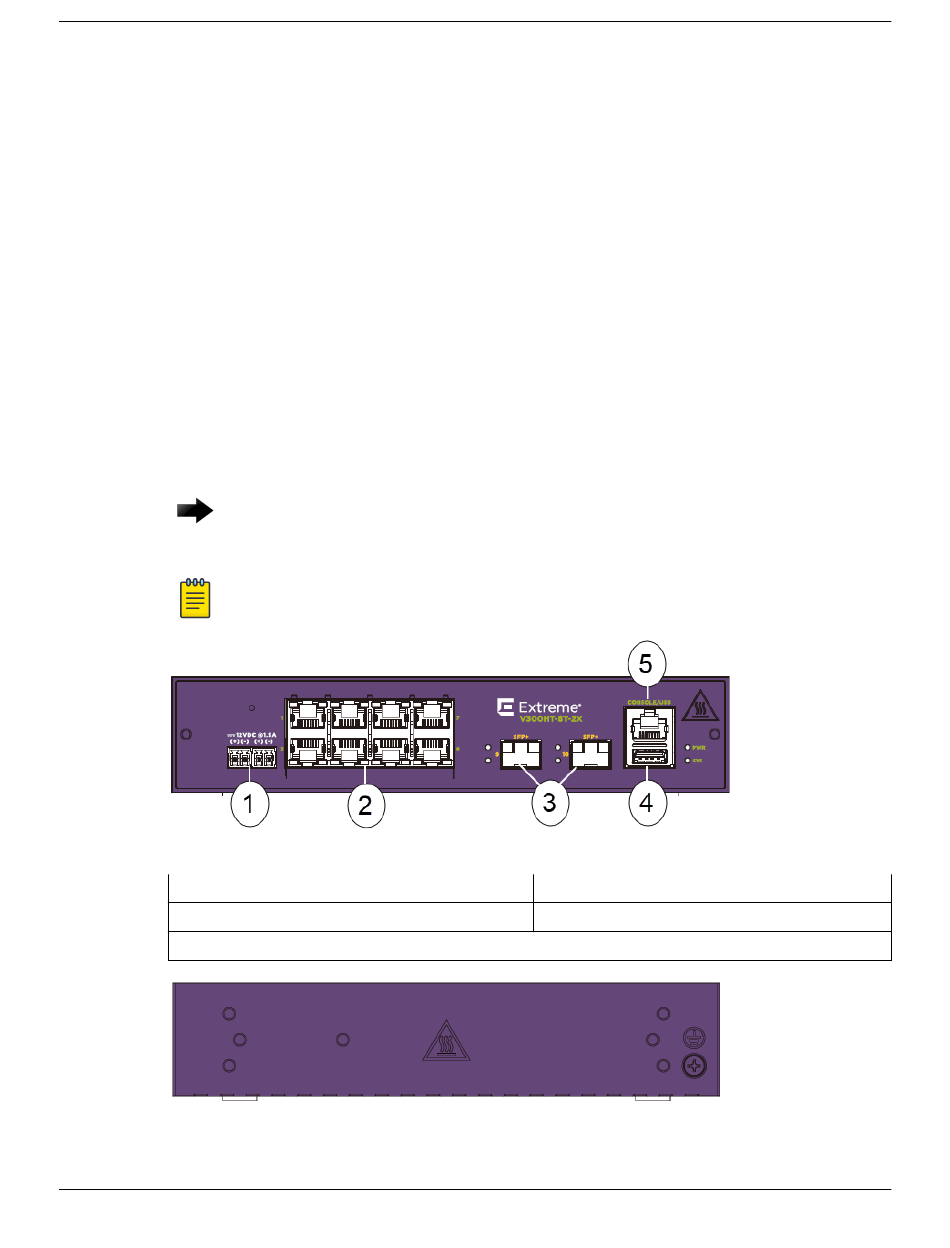

Figure 129: V300HT-8T-2X Front Panel
1 = DC inputs
3 = 10Gb SFP+ ports
5 = Console/Management port
Figure 130: V300 Virtual Port Extender Rear Panel
ExtremeXOS 30.7 User Guide.
2 = 10/100/1000BASE-T ports
4 = USB port
ExtremeSwitching Hardware Installation Guide
V300HT-8T-2X Model
