V300 Virtual Port Extender

Bridge port extenders (BPEs) are devices that do not fully process packets, nor make forwarding or
filtering decisions. Instead, they simply receive packets from extended ports and forward packets
toward the upstream controlling bridge (an ExtremeXOS-based switch) for L2/L3 processing. This
scheme, based on the IEEE 802.1BR specification, is known as extended edge switching.
The V300 Virtual Port Extender offers the following models:

V300-8P-2X Model

V300-8T-2X Model
V300-8P-2T-W Model
V300HT-8P-2X Model
V300HT-8T-2X Model
In general, the V300 Virtual Port Extender offers the following features:
Eight 10/100/1000BASE-T half/full duplex ports or 10/100/1000BASE-T half/full duplex PoE+ ports
Two 10Gb SFP+ uplinks
PoE+ power on some models
Fixed internal power-supply (non-PoE models), fanless
With the exception of the V300-8P-2T-W model, the V300 Virtual Port Extender requires that
ExtremeXOS (EXOS) version 30.5 (or later) be installed on the switch to which it is attached. For more
information about configuring EXOS for use with this equipment, see the
V300-8P-2X Model
The Virtual Port Extender V300-8P-2X model offers the following features:
Eight 10/100/1000BASE-T half/full duplex PoE+ ports
Two 10Gb SFP+ ports
One USB port
One console/management port
One DC input port
The V300-8P-2X model requires that ExtremeXOS (EXOS) version 30.6 (or later) be installed on the
switch to which it is attached. For more information about configuring EXOS for use with this
equipment, see the
The V300-8P-2X model is shipped with one 40W AC PS FRU (Model XN-ACPWR-280W).

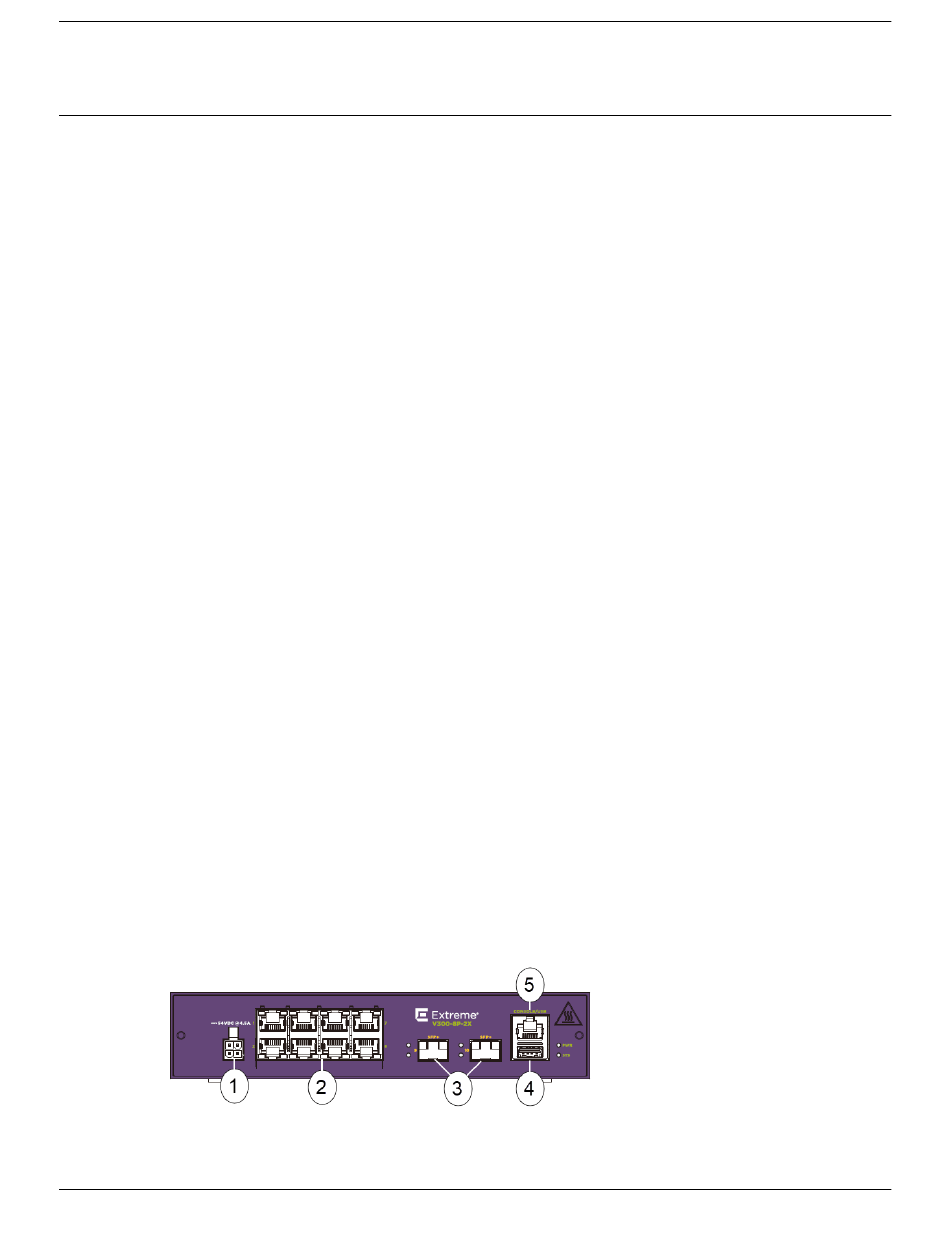

Figure 121: V300-8P-2X Front Panel
on page 141
on page 142
on page 143
on page 143
on page 145
ExtremeXOS 30.7 User
Guide.
ExtremeXOS 30.7 User
ExtremeSwitching Hardware Installation Guide
V300 Virtual Port Extender
Guide.
141
