ExtremeSwitching X440-G2-48p-10GE4 Switch Ports
and Slots
•
Two 1GbE copper combination ports that can be upgraded to 10Gb Ethernet.
•
Ethernet management port (10/100/1000BASE-T).
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
•
One rear redundant power supply connector.

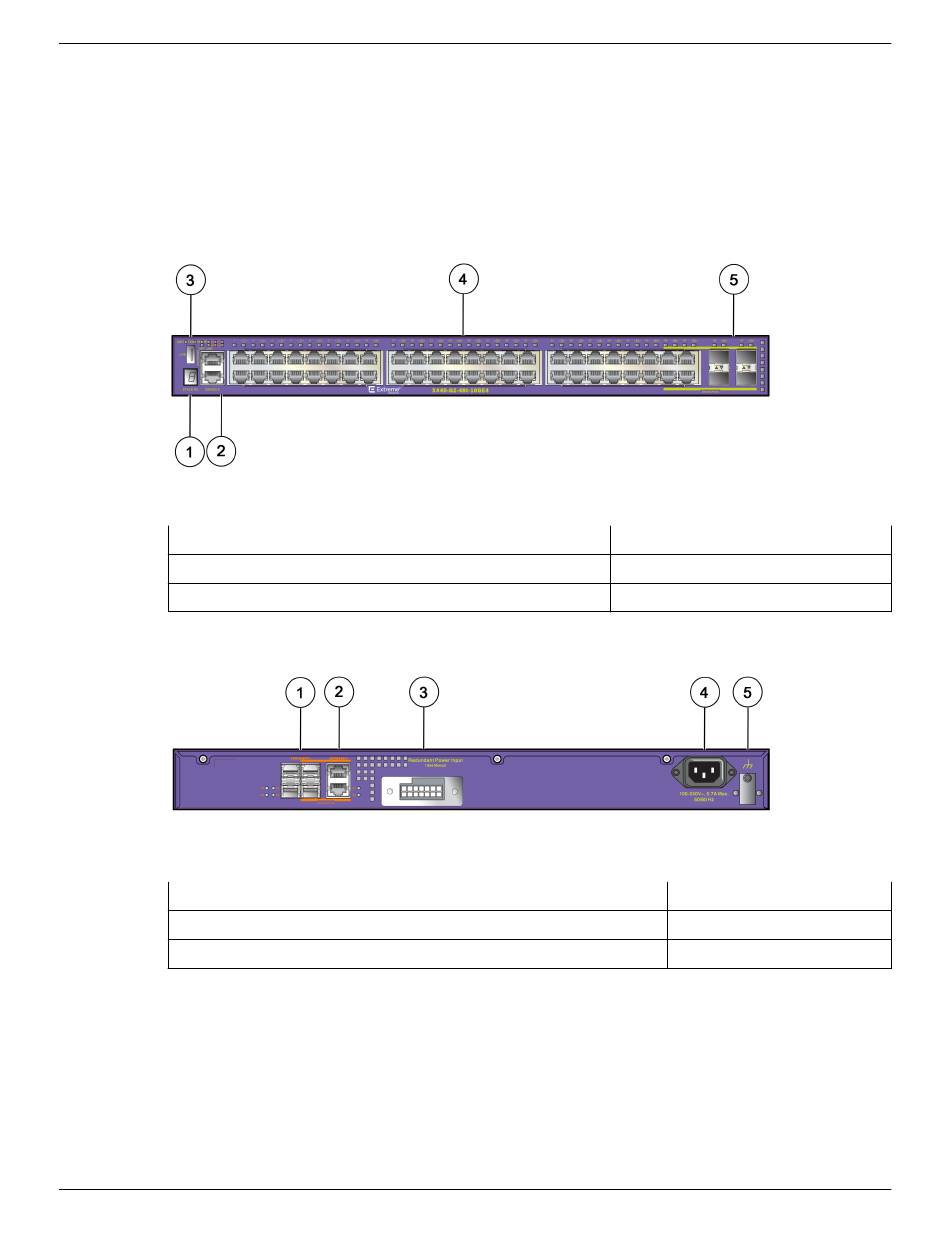

Figure 24: ExtremeSwitching X440-G2-48t-10GE4 Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 25: ExtremeSwitching X440-G2-48t-10GE4 Rear Panel
1 = SFP ports upgradeable to 10GBASE-X
2 = 1GBASE-T combination ports upgradeable to 10GBASE-T
3 = Redundant power input

ExtremeSwitching X440-G2-48p-10GE4 Switch Ports and Slots

The ExtremeSwitching X440-G2-48p-10GE4 switch ports and slots include:
•
48 front panel PoE+ ports of 10/100/1000BASE-T. Both half-duplex and full-duplex communication
are supported on ports 1 through 16 and 25 through 40. The rest of the ports are full-duplex only.
•
Four unpopulated front panel 1GBASE-X SFP combination ports.
38 ExtremeSwitching Hardware Installation Guide
ExtremeSwitching Switches
4 = 10/100/1000BASE-T ports
5 = 1GBASE-X SFP combination ports
4 = AC power input socket
5 = Grounding lug
