Power Supplies for Use with Your Switch

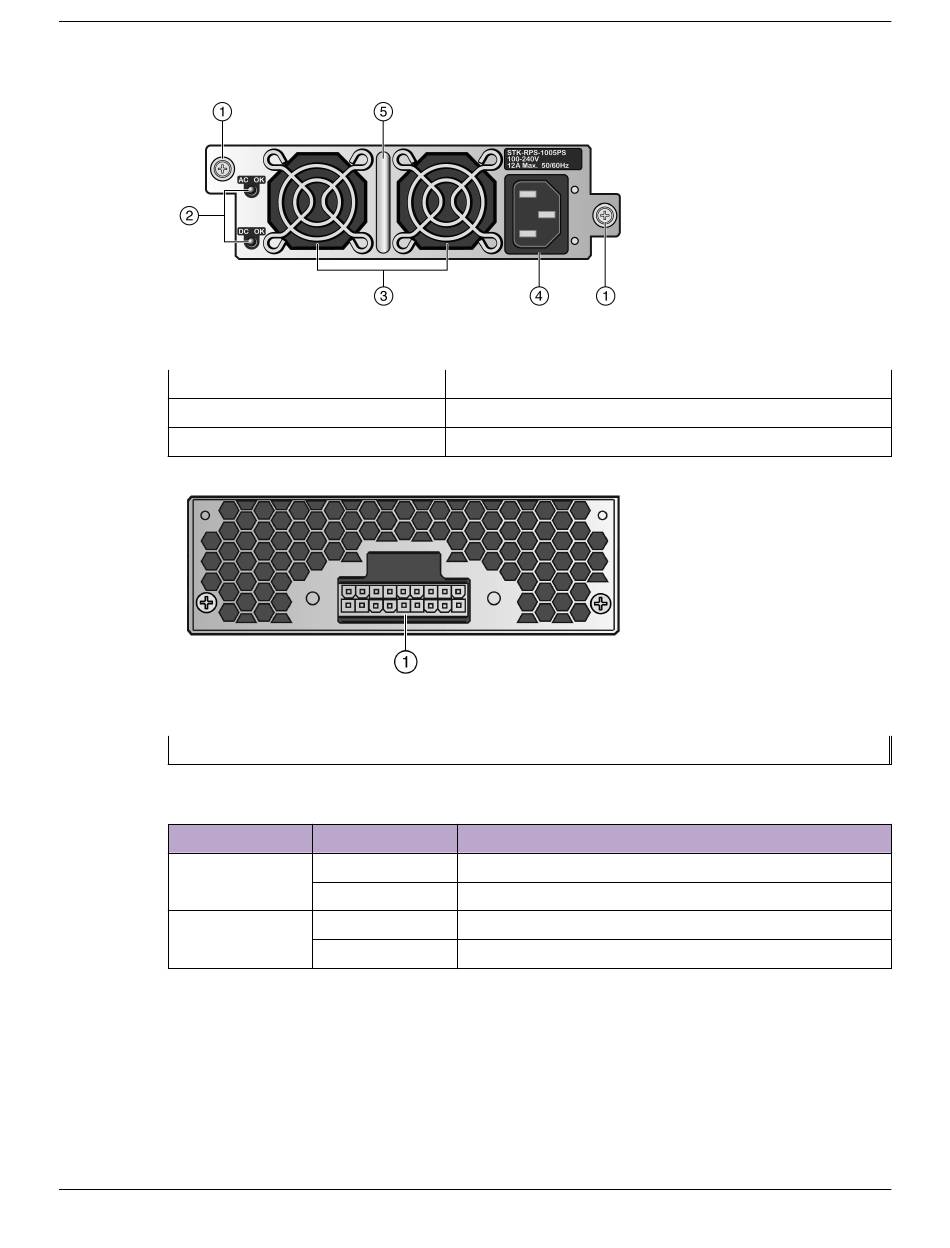

Figure 118: STK-RPS-1005PS Front Panel
1 = Captive screws
2 = Status LEDs
3 = Fans
Figure 119: STK-RPS-1005PS Rear Panel
1 = 18-pin Redundant Power Supply connector
Table 45: STK-RPS-1005PS LED Status Definitions
LED
AC OK
DC OK
For technical specifications, including pin locations and functions, see
Power Supply Technical Specifications
4 = AC power input connector
5 = Handle
LED Color Status
Green AC input within operational range
Off No AC voltage or AC voltage is outside the operational range
Green Power supply successfully providing 55 VDC to the system
Off Power supply malfunctioning
on page 471.
STK-RPS-1005PS Redundant Power Supply
STK-RPS-1005PS Redundant
