Installing Cable
that the bend radius for fiber optic cable equal at least 5 cm (2 in) for each 90-degree turn as shown in
Figure 148.
Note
Kinks and sharp bends can destroy or impair the cable's ability to convey light pulses
accurately from one end of the cable to the other. Use care in dressing the optical fiber cables:
provide satisfactory strain relief to support the cable and maintain an adequate bend radius at
all cable turns, particularly where the cable connects to the I/O module.

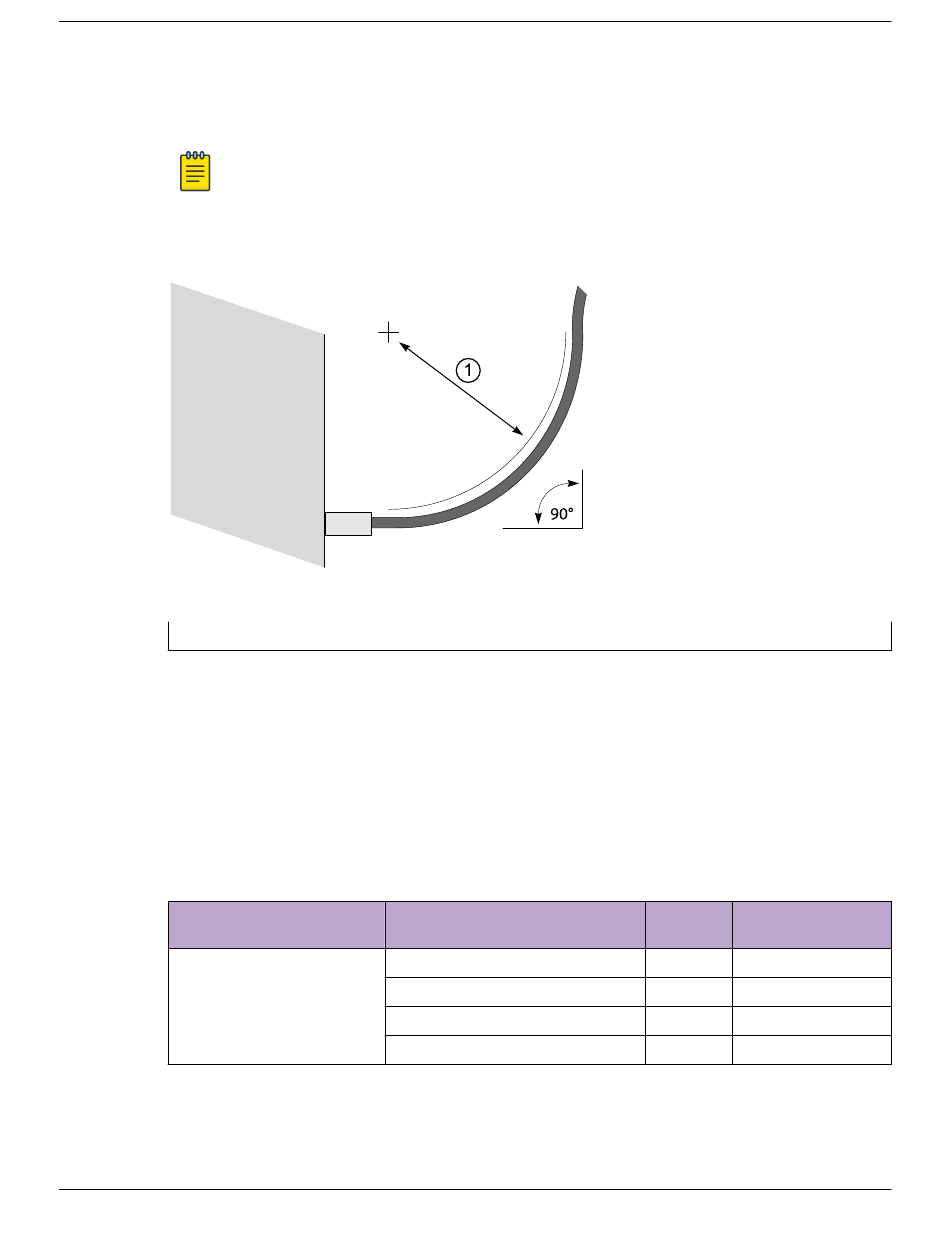

Figure 148: Bend Radius for Fiber Optic Cable
1 = Minimum 5 cm (2 in) radius in 90° bend
Cable Distances and Types
Table 73 on page 172 shows one example of cable media types and maximum distances that support
reliable transmission in accordance with international standards (except where noted). Refer to
Networks Pluggable Transceivers Installation Guide
complete list of supported cable lengths.
Refer to Extreme Hardware/Software Compatibility and Recommendation Matrices
types that are compatible with your equipment.
Table 73: Cable Distances and Types
Standard
1000BASE-SX
(850nm optical window)
172 ExtremeSwitching Hardware Installation Guide
for descriptions of optics and cables, as well as a
Media Type
50/125 µm multimode fiber
50/125 µm multimode fiber
62.5/125 µm multimode fiber
62.5/125 µm multimode fiber
Site Preparation
for a list of the cable
MHz•km Maximum Distance
Rating (Meters)
400 500
500 550
160 220
200 275
